MARTIN WISMAN MA 1300 X

Šifra: 6320
517,63 EUR
*Cijena sa popustom može se ostvariti ukoliko se plaća gotovinom, virmanom (preko računa) ili debitnom i kreditnom karticom odmah i odjednom.
Prikazana cijena je za komad.

Garantiramo najnižu cijenu na tržištu!
U slučaju da pronađete isti proizvod po povoljnijoj cijeni,
molimo Vas da nas kontaktirate na:
info@player.hr

Prijavi povoljniju cijenu Obavijesti me ako cijena padne Postavi pitanje
Opcija:

The MA Series professional power amplifiers offer Martin Wisman renowned integrityand can handle exceptionally high power ratings in a compact, light weight 2RU package. The MA Series amps also feature Automatic Clip Limiting to protect connected drivers;Impedance sensing to accommodate varying impedance outputs; tunnel cooled,high efficiency heat sinks; and variable speed DC fans to limit the operating temperature and extend amplifier life. Individual low pass, low cut switch for channel A and B.

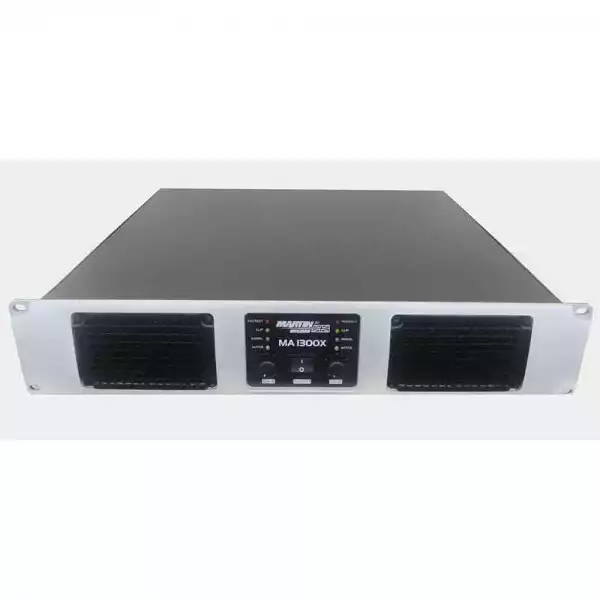

   MA 1300 Professional Power Amplifier




Description




The MA Series professional power amplifiers offer Martin Wisman renowned integrity
and can handle exceptionally high power ratings in a compact, light weight 2RU package.
The MA Series amps also feature Automatic Clip Limiting to protect connected drivers;
Impedance sensing to accommodate varying impedance outputs; tunnel cooled,
high efficiency heat sinks; and variable speed DC fans to limit the operating temperature
and extend amplifier life. Individual low pass, low cut switch for channel A and B.




Specifications




Rated power bridge mode 4 Ohms: 1350 Watts @ 1 kHz at <0.1% T.H.D.
Rated power (2 X 2 Ohms): 675 Watts per channel @ 1 kHz at <0.1%
T.H.D.both channels driven
Rated power (2 X4 Ohms): 450 Watts per channel @ 1 kHz at <0.05%
T.H.D. both channels driven
Rated power (2 X 8 Ohms): 300 Watts per channel @ 1 kHz at <0.025%
T.H.D.both channels driven
Rated power (1 X 2 Ohms): 750 Watts @ 1 kHz at <0.1% T.H.D.
Power bandwidth: 10 Hz - 30kHz; +0, -3 dB at rated 200 Watts 8 Ohm power
T.H.D.(2 X 2 Ohms): <0.1%@500 Watts per channel from 20 HZ to 20 kHz
T.H.D.(2 X 4 Ohms): <0.1%@350 Watts per channel from 20 HZ to 20 kHz
T.H.D.(2 X 8 Ohms): <0.1%@250 Watts per channel from 20 HZ to 20 kHz
Minimum load impedance: 2 Ohms
Maximum RMS voltage swing: 53 Volts
Frequency response: 10 Hz - 100 kHz; +0, -3 dB at 1 Watt
Input CMRR: >-65 dB @ 1 kHz
Rated power (1 X 4 Ohms): 500 Watts @ 1 kHz at <0.05% T.H.D.
Rated power (1 X 8 Ohms): 330 Watts @ 1 kHz at <0.025% T.H.D.
Phase response: +5 to -15 from 20 Hz to 20 kHz
Input impedance: 20 k Ohms, balanced; 10k Ohms, unbalanced
Cooling: Two temperature dependant variable speed 80mm high output DC fans

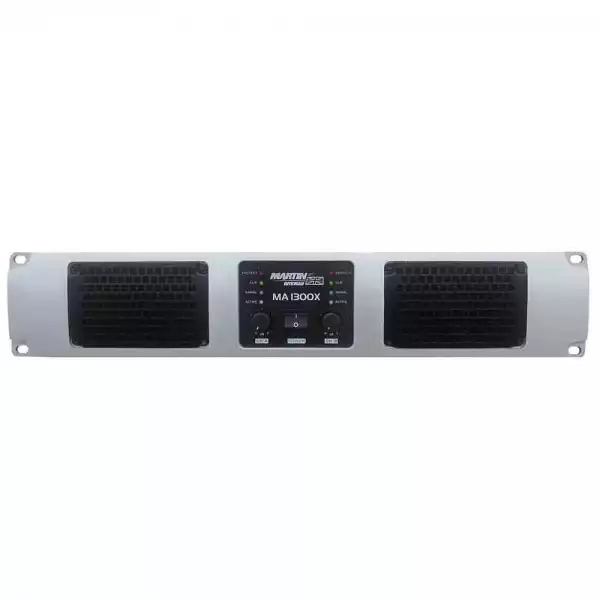

Controls: Two front panel attenuators, rear panel mode switch and gain select switch
Voltage gain: 0.775V, 32 dB or 26 dB
Crosstalk: >-60 dB @ 1 kHz at rated power @ 8 Ohms
Hum and noise: >-105 dB, "A" weighted referenced to rated power @ 8 Ohms
Slew rate: >30V/us
Damping factor (8 Ohms): >500:1 @ 20Hz - 1 kHz
Indicator LEDs: 2 Clip,2 signal presence, 1 active status,2 Protection
Protection: Thermal, DC, turn-on bursts, subsonic, incorrect loads

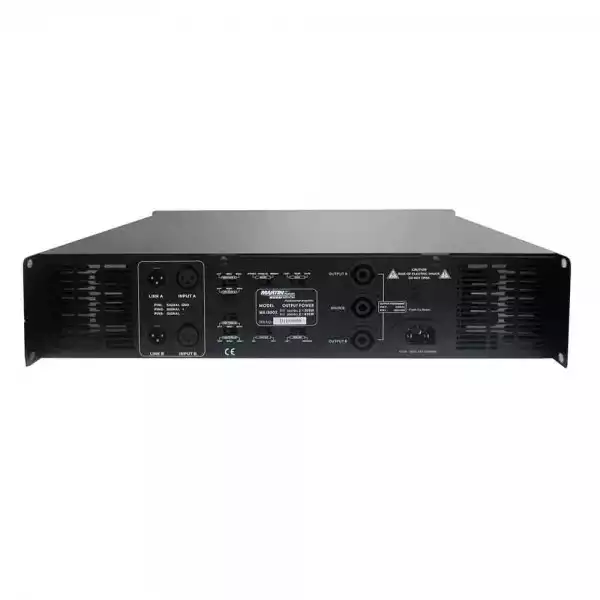

Connectors: XLR, Speakon and Binding Post speaker output, 240/230 Volt 16 amp IEC mains
Construction: 16 ga. Steel
Dimensions: 89 mm x 483 mm x 496 mm
Net weight: 18kg
Gross weight: 21kg
