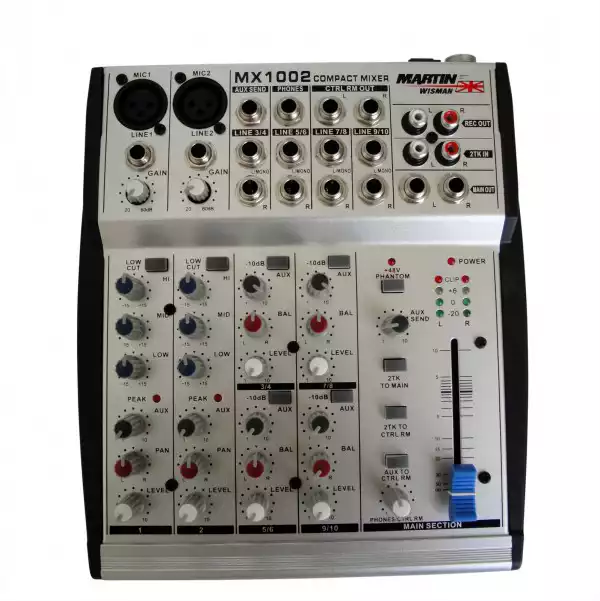

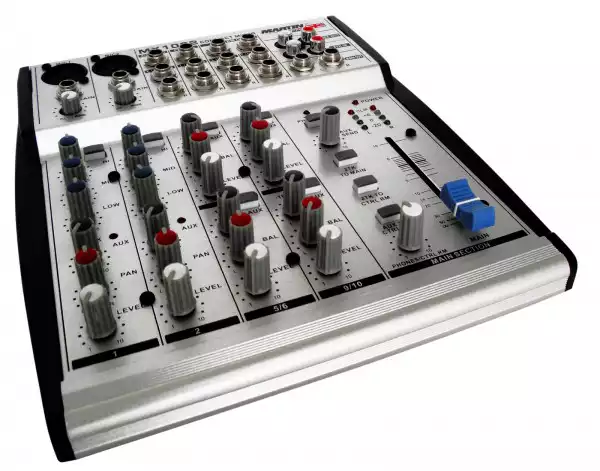

MARTIN WISMAN MX 1002
Garantiramo najnižu cijenu na tržištu!
U slučaju da pronađete isti proizvod po povoljnijoj cijeni,
molimo Vas da nas kontaktirate na:
info@player.hr
2~4 mono input channels and 2~4 stereo input channels
3-band frequency equalizer for each input channel
Adopt low-noise discrete Mic pre-ampfier on 2 microphone inputs
Optional low cut filter to reduce low frequency interfere for mono input channel
2 stereo inputs with 10dB input sensitivity selector
1 AUX out
Independently 2 channels input and record output
Flexible monitor out and headphone output
Peak indicator on each input channel
Provide +48V phantom power for condenser microphone.
Inputs
Number
Input modes
Connector
Input Impedance
Rated
Input level
Mono MIC IN
2~4
Balanced
XLR
2Kohm
-60dB
Mono LINE IN
2~4
Balanced
3-poles TRS
47Kohm
-40dB
L/R LINE IN
4
Unbalanced
2 TRS
10Kohm
-10dB
L/R PLAY IN
1
Unbalanced
2 RCA
10Kohm
-10dB
Outputs
Number
Outputs modes
Connector
Outputs Impedance
Rated
Output level
Stereo MAIN OUT
1
Unbalanced
2 TRS
75ohm
+4dB
CTRL RM
1
Unbalanced
2 TRS
75ohm
+4dB
AUX SEND
1
Unbalanced
TRS
75ohm
+4dB
Stereo REC OUT
1
Unbalanced
2 RCA
1Kohm
-10dB
HEADPHONE
1
Unbalanced
3-poles TRS
75ohm
3mW @36ohm
Max gain
Signal route
Conditions
72dB
MIC IN-----MAIN L/R, AUX SEND
@620ohm Load
78dB
MIC IN-----CTRL RM OUT L/R
@620ohm Load
62dB
MIC IN-----REC OUT
@10Kohm Load
52dB
MONO LINE IN-----MAIN OUT L/R
@620ohm Load
22dB
ST.LINE IN-----MAIN OUT L/R
@620ohm Load
22dB
AUX RET-----MAIN OUT L/R
@620ohm Load
16dB
2TK IN-----MAIN OUT L/R
@620ohm Load
16dB
2TK IN-----CTRL RM OUT L/R
@620ohm Load
Channel EQ
HI 12KHz MID 2.5KHz LOW 80Hz +/-15dB
Low cut filter
80Hz 18dB/OCT
Total harmonic distortion
<0.1% @+14dB 20~20KHz 620ohm load
Frequency response
+1/-2dB @+4dB 20~20KHz 620ohm load
Max out level
+20dB @0.5%THD 1KHz 620ohm load
Microphone preamp E.I.N
-124dB @150ohm, at max gain

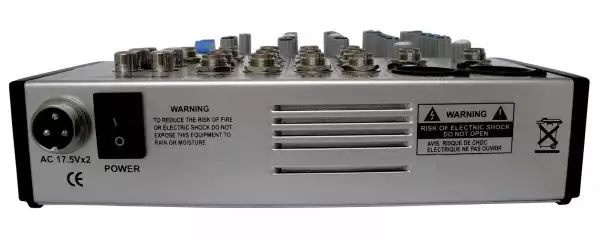

Power (refer to the nameplate)
AC220V; 230V; 110V/220V; 120V
Power consumption
20W
Weight (include power adaptor)
1.42kg
Dimensions (mm)
250x45x225 (W x H x D)
