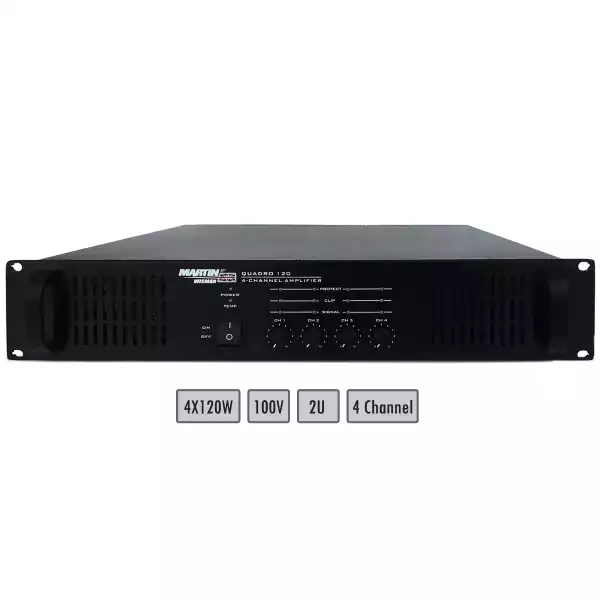

Four Channel Power Amplifier 4×120W RMS

The 4 channel power amplifier is designed for commercial and industrial public address applications.

With four separate amplifier in a single chassis and rated power ranges 120Wper channel which provides a wide selection to meet different size sound system needs.

The amplifier is design of rack mount type.

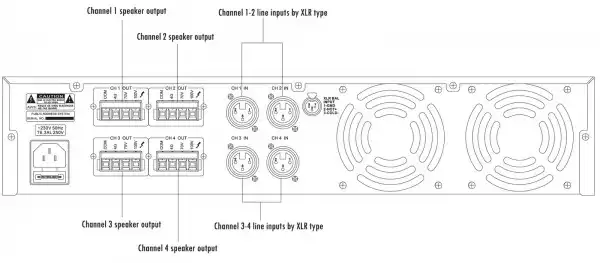

Balanced line inputs by phoenix types, 70V, 100V and 4-16 ohm speaker outputs for each channel by phoenix types are convenient for installation when selection different speaker matching.

Master volume control are included. complete protection includes over heat, over load, clip and short circuit. Indications for power, signal, peak and protection.

Features

• 4 separate amplifier into one chassis
• Rack mount amplifier in 2U and 3U types
• Rated power 120W per channel
• 70V, 100V and 4-416 ohm speaker outputs for each channel by phoenix types
• Isolated transformer for human safety operation
• Balanced phoenix type line input for each channel
• Reliable protection over heat, over load, clip and short circuit
• Indicators for power, signal, peak, and protection
• Excellent device of radiator cooling fanner that ensures working effectively

Optional

• DC 24V input available on less than but not included 240W models
• Panel with / without handhold
• Faults monitoring module, it can output short circuit signal to achieve main / spare amplifier switch (Except for 1000W and 1500W).
