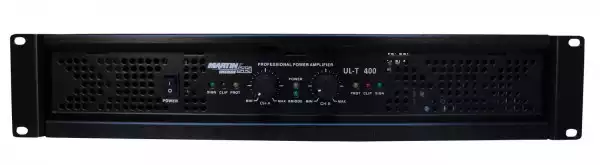

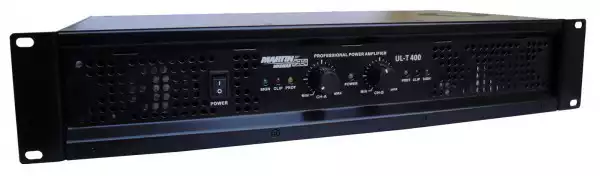

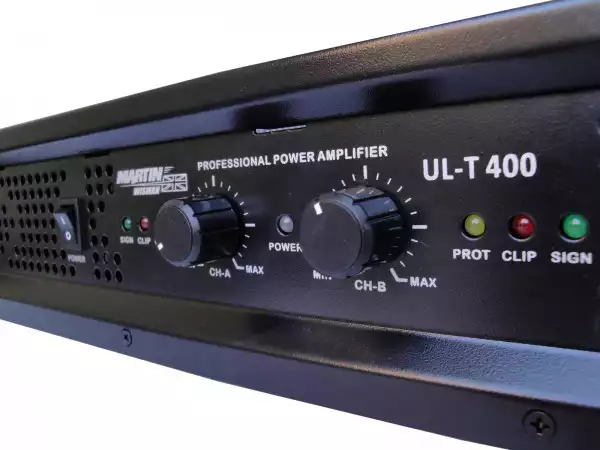

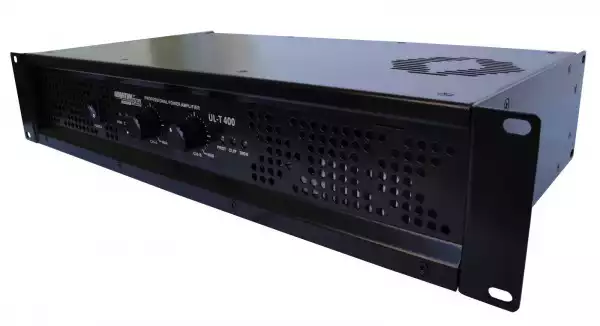

Professional Power Amplifier
Features

Soft start-up, preventing the transient surge and reducing the disturbance to the power network.
Use two speed fans (with low speed and high speed).
RCA &6.3 Phone Jack input connectors; SPEAKON and binding post output connectors.








Stereo 8Ω Power


150W x2




Stereo 4Ω Power


225W x2










Bridge 8Ω Power







THD+N


≤0.5%









IMD


<0.3%




Frequency response


20Hz ~ 20kHz ± 1.5dB









Input Sensitivity


0.775V/1.0V/1.44V (stereo 8Ω)




S/N ratio


>95dB









Crosstalk


>55dB




Phase Response












Damping Factor


>60 (@8Ω)




Protection


Soft start up, thermal cut off, short circuit, overloaded, DC fault, Voltage limiter and AC line fuse

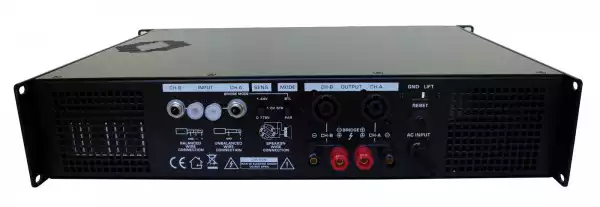

Connectors


Input: COMBO x 2, XLR Link male x 2; Output: SPEAKON x 2; Binding Post x 2




Power supply


230V ± 10% ~50/60Hz









Dimension


483 x 240 x 88mm (19", 2U)




Weight


10.0kgs
