Advanced DJ audio interface providing 10 inputs and 10 outputs for professional DJs requiring the ultimate in connectivity.
This powerhouse unit sets the new benchmark for DJ audio interfaces. The successor of the highly acclaimed AUDIO 8 DJ has been carefully refined, now achieving a new level in connectivity and performance. With ten inputs, ten outputs, four phono preamps, MIDI I/O and mic input, TRAKTOR AUDIO 10 will satisfy even the most demanding DJs.
This premium DJ audio interface is built on the established and award-winning design of NI audio and hardware gear: Extra-robust metal casing, high-end Cirrus-Logic® AD/DA converters, brand-new chip technology and completely revised driver architecture ensure top sound quality and low latency for professional use on stage and in the studio.
This product can be powered by the
NI Power Supply.
Besides premium sound quality, low-latency and ultimate connectivity, this interface also boasts many other advanced features specifically designed for club use:
The convenient status LEDs on the upper panel give instant visual feedback on input and output activity, so you know if your setup is hooked up and working correctly. Now it’s also possible to run the TRAKTOR AUDIO 10 via its power supply only, as a Direct Thru unit. This means the soundcard is capable of passing through a signal from other equipment (turntables / CD players) without being connected to your computer – so switching between DJs or different setups is finally made simple - perfect for permanent club installations.
SPECIFICATIONS
Compatibility, System Requirements, Hardware Specifications
SYSTEM REQUIREMENTS
Windows 7 or 8 (latest Service Pack, 32/64 Bit), 2.0 GHz Intel Core 2 Duo or AMD Athlon 64 X2, 2 GB RAM (4 GB recommended)
Mac OS X 10.7 or 10.8 (latest update), Intel Core 2 Duo, 2 GB RAM (4 GB recommended)
General: Monitor with 1024 x 768 screen resolution, USB 2.0, 1 GB free disc space, high-speed internet required
SUPPORTED DRIVERS
- ASIO
- Core Audio
- DirectSound
- WASAPI
DIMENSIONS
45 x 192 x 144 mm / 1.8 x 7.6 x 5.7”
Weight: 950 g / 2.09 lbs
POWER SUPPLY
Power Supply via included power plug (9 V, 1200 mA). TRAKTOR AUDIO 10 will only work with Power Supply connected.
HARDWARE SPECIFICATIONS
Audio Converters: | |
Channels (A/D, D/A) |
10, 10 |
Sample Rates |
44.1, 48, 88.2, 96 kHz |
Bit Resolution |
16, 24 Bit |
Converter |
Cirrus Logic |
|
|
Line Inputs: |
|
Input Impedance |
47 kOhm |
A/D-D/A to Output: |
|
Full Scale Input Level |
+12 dBu, 3.08 Vrms |
Gain |
-2.6 dB |
Dynamic Range |
98.4 dB (A) |
THD+N (Full Scale Level) |
0.027 % |
Frequency Response (96 kHz), -1 dB |
13 Hz - 45 kHz |
Direct Thru: |
|
Maximum Input Level |
+13.2 dBu, 3.5 Vrms |
Gain |
-4.7 dB |
Dynamic Range |
105.5 dB (A) |
THD+N (Maximum Level) |
0.0026 % |
Frequency Response, -1 dB |
13 Hz - 70 kHz |
|
|
Phono Inputs: |
|
Input Impedance |
47 kOhm |
A/D-D/A to Output: |
|
Full Scale Input Level @ 1 kHz |
-22.2 dBu, 60 mVrms |
Gain @ 1 kHz |
+31.5 dB |
Dynamic Range @ 1 kHz |
95.7 dB (A) |
THD+N @ 1 kHz |
0.03 % |
Frequency Response |
IEC curve +/- 1 dB |
Direct Thru: |
|
Maximum Input Level @ 1 kHz |
-16.2 dBu, 120 mVrms |
Gain @ 1 kHz |
+29.1 dB |
Dynamic Range @ 1 kHz |
95.9 dB (A) |
THD+N @ 1 kHz |
0.02 % |
Frequency Response |
IEC curve +/- 1 dB |
|
|
Line Outputs (D/A): |
|
Full Scale Output Level |
+9.6 dBu, 2.35 Vrms |
Dynamic Range |
102.1 dB (A) |
THD+N |
0.015 % |
Frequency Response (96 kHz), -1 dB |
8 Hz - 45 kHz |
|
|
Headphone Output: |
|
Maximum Output Level @ 10 kOhm |
+13.3 dBu, 3.55 Vrms |
Maximum Output Power |
40 mW @ 100 Ohms, 15 mw @ 33 Ohms |
THD+N (Maximum Level, 100 Ohms) |
0.013 % |
Frequency Response (96 kHz), -1 dB |
10 Hz - 45 kHz |
DETAILS & SETUP EXAMPLES
AUTO DETECTION AND SETUP WIZARD
The new Auto Detection makes connecting and disconnecting your audio interface a breeze - even while there are tracks playing in TRAKTOR. Assisted by the Setup Wizard with a drop down menu of interfaces, just select your interface and setup (internal or external mixer). The Wizard assigns inputs and outputs for you. In the future, TRAKTOR detects when the same audio interface is connected via USB and automatically sets up your preferred routing again. When disconnected, TRAKTOR automatically switches back to the internal computer soundcard. For further safety, TRAKTOR AUDIO 6 and 10 will revert to their user definable start-up configuration when USB is disconnected which is Direct Thru by default.
FEATURES AT A GLANCE
- Professional DJ audio interface with unrivalled connectivity
- 10 inputs and 10 outputs - 4 phono preamps to connect up to four turntables
- Extra-loud output levels pack enough punch to rock the biggest clubs
- High-quality 24-bit / 96kHz Cirrus Logic® AD/DA converters for studio-grade sound quality
- Mic input and additional MIDI I/O port for MIDI gear without USB connector
- New low latency Mac® and PC drivers for tightest possible response
- 25 status LEDs for visual monitoring of signal chain
- Easy club installation with Direct Thru mode and included power supply
- Compatible with all DJ, performance and audio software
- Includes TRAKTOR DJ software so you can start mixing right away

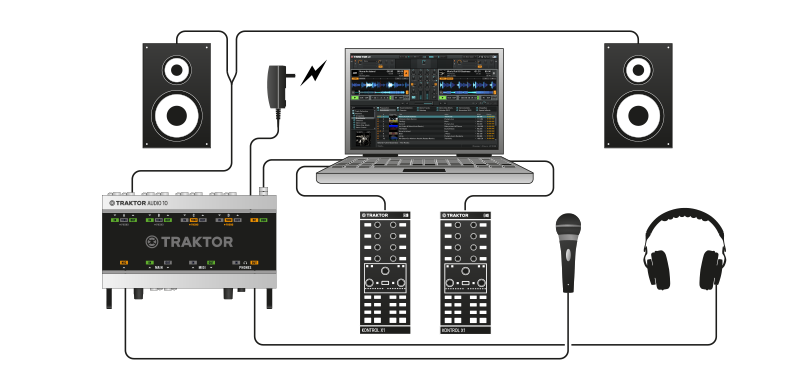

SETUP EXAMPLE 1 – INTERNAL MIXER SETUP
DJ software controlled by two TRAKTOR KONTROL X1 controllers. TRAKTOR AUDIO 10 outputs connected to active monitors.

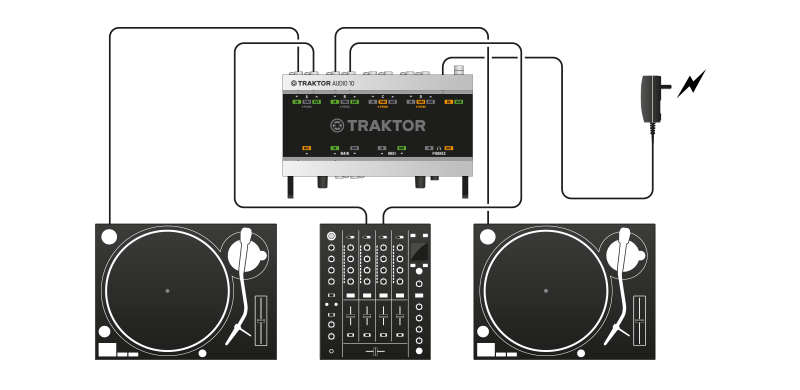

SETUP EXAMPLE 2 – CLUB INSTALLATION SETUP (DIRECT THRU)
Two turntables connected to phono inputs of TRAKTOR AUDIO 10. Outputs connected to line inputs of external mixer. Power supply is connected, therefore no laptop is necessary.

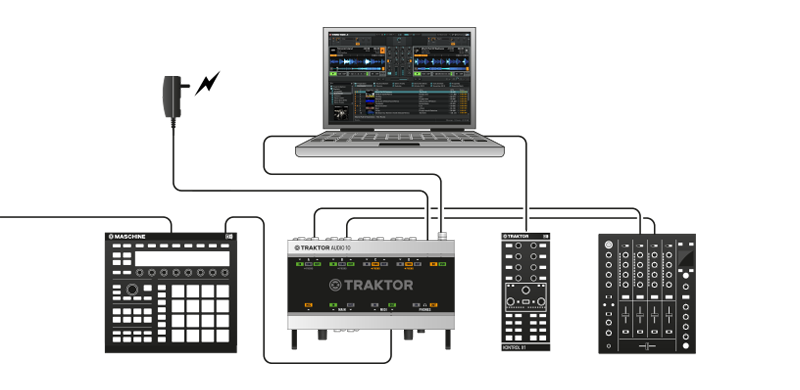

SETUP EXAMPLE 3 – EXTERNAL MIXER SETUP
DJ software controlled by TRAKTOR KONTROL X1 controller. TRAKTOR AUDIO 10 connected to external mixer and synced with MASCHINE via MIDI Clock.
WHAT'S NEW COMPARED TO AUDIO 8 DJ:
TRAKTOR AUDIO 10 DJ is the successor of AUDIO 8 DJ, and now comes with enhanced connectivity, better sound quality, streamlined usability and even lower latency:
- Two more inputs and outputs – features a pair of stereo inputs and outputs on the front of the unit, ideal for setting up Send & Return effects through your DJ mixer.
- New processor – better performance with low-latency ensures a rock-solid foundation to your DJ sets.
- New 'Direct Thru' mode - run TRAKTOR AUDIO 10 via its power supply only (no computer, no multicore cables), perfect for club installations.
- Four phono preamps instead of two to connect up to 4 turntables
- Improved visual feedback – larger, clearer LEDs communicate essential info on the unit's top panel.
- Audio Control Panel – software application that allows you to test and configure your NI device (e.g. set different sample rate, set up audio routing).
Cirrus Logic is a trademark of Cirrus Logic, Inc. Mac® is a trademark of Apple Inc., registered in the U.S. and other countries.
