NEUTRIK NAC3FCA

Šifra: 8160
7,83 EUR
*Cijena sa popustom može se ostvariti ukoliko se plaća gotovinom, virmanom (preko računa) ili debitnom i kreditnom karticom odmah i odjednom.
Prikazana cijena je za komad.

Garantiramo najnižu cijenu na tržištu!
U slučaju da pronađete isti proizvod po povoljnijoj cijeni,
molimo Vas da nas kontaktirate na:
info@player.hr

Prijavi povoljniju cijenu Obavijesti me ako cijena padne Postavi pitanje
Opcija:

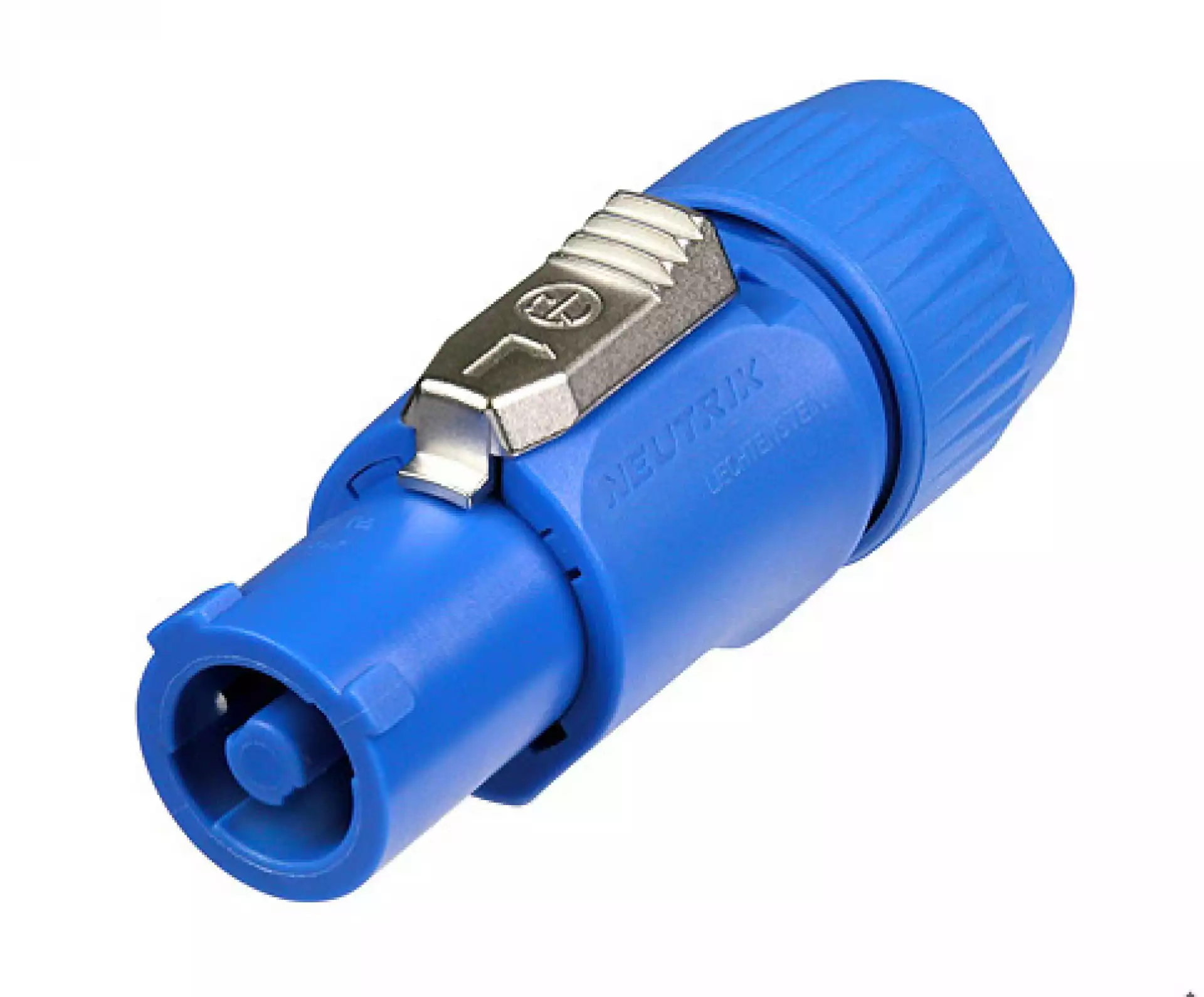

Lockable cable connector, power-in, screw terminals, blue
The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!



Features & Benefits

Locking 20 A / 250 V ac appliance coupler
3 contacts for line, neutral and premating safety ground

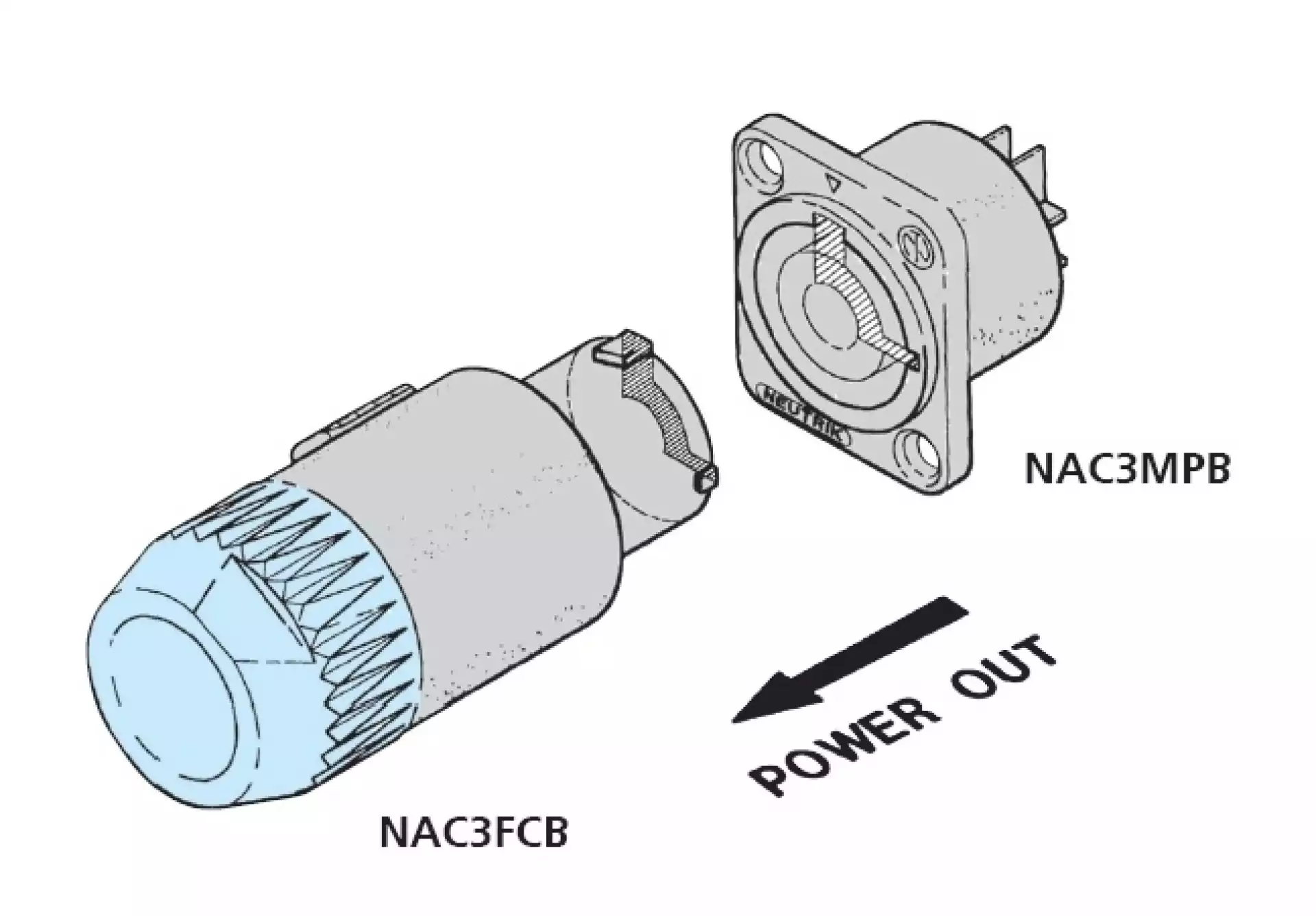

Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
Fast and easy twist lock latching system
Extremely robust and reliable
Ergonomic design
User friendly latch design for easy handling
Unique Neutrik chuck type strain relief
UL, cUL recognized components VDE certified SEV approved
Branded with unique hologram - guarantees genuine and authentic Neutrik product

Product

Title
NAC3FCA


Gender
female

Electrical

Contact resistance
≤ 3 mΩ (inner)


Dielectric strength
4 kVdc


Insulation resistance
> 0.1 GΩ (after damp heat test IEC 68-2-30)


Number of electronical contacts
2 + PE


Rated current per contact
20 A rms


Rated voltage
250 V ac

Mechanical

Cable O.D.
6 - 15 mm


Lifetime
> 1000 mating cycles


Wiresize
2,5 mm²


Wiresize
14 AWG


Locking device
Quick Lock

Material

Contact plating
4 µm Ag


Contacts
Bronze (CuSn6)


Insert
Polyamide (PA 6 30 % GR)


Locking element
Zinc diecast (ZnAl4Cu1)


Shell
Polyamide (PA 6 30 % GR)


Strain relief
Polyacetal (POM)

Environmental

Temperature range
-30 °C to +80 °C

Product specific
Coding

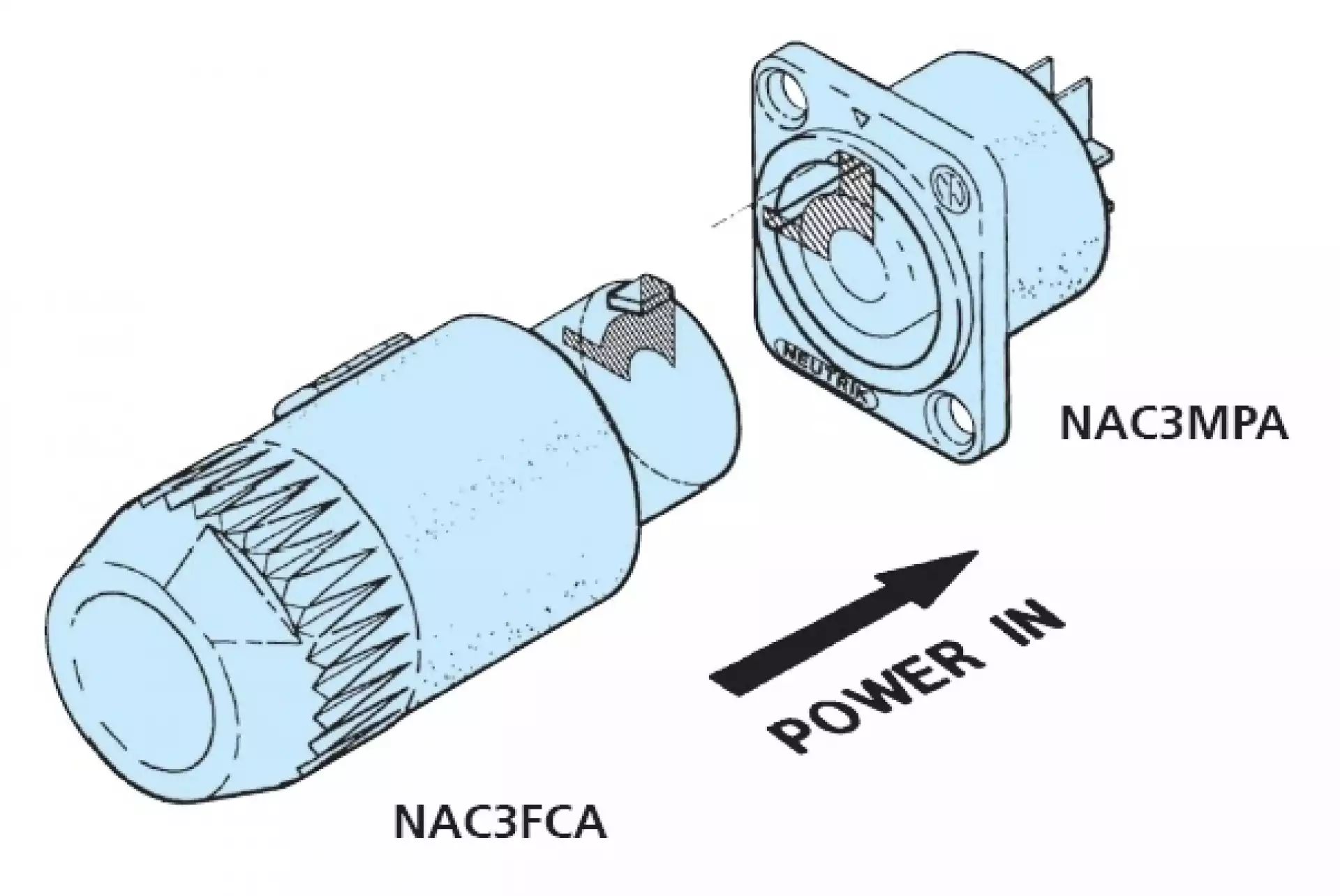

A-type for power inlet (color coding blue)




Downloads



Assembly Instruction - powerCON 20 A



Product Guide 2012, 07 Circular Connectors



Swiss Electrotechnical Association powerCON 20 A



Swiss Federal Inspectorate for Heavy Current Installations powerCON 20 A



VDE Certificate powerCON 20 A





Drawing NAC3FCA


Drawing NAC3FCA


Links
UL Certificate (ECBT2.E135070)
cUL Certificate (ECBT8.E135070)



Lockable cable connector, power-in, screw terminals, blue

The powerCON is a locking 3 conductor equipment AC connector with contacts for line, neutral and pre-mating ground contact. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.

Attention: The powerCON is a connector without breaking capacity, i.e. the powerCON should not be connected or disconnected under load or live!



Features & Benefits

  • Locking 20 A / 250 V ac appliance coupler
  • 3 contacts for line, neutral and premating safety ground
  • Power-in (blue) and power-out (grey) versions with different keying to avoid the possibility of intermating
  • Fast and easy twist lock latching system
  • Extremely robust and reliable
  • Ergonomic design
  • User friendly latch design for easy handling
  • Unique Neutrik chuck type strain relief
  • UL, cUL recognized components
    VDE certified
    SEV approved
  • Branded with unique hologram - guarantees genuine and authentic Neutrik product
Product
Title
NAC3FCA
Gender
female
Electrical
Contact resistance
≤ 3 mΩ (inner)
Dielectric strength
4 kVdc
Insulation resistance
> 0.1 GΩ (after damp heat test IEC 68-2-30)
Number of electronical contacts
2 + PE
Rated current per contact
20 A rms
Rated voltage
250 V ac
Mechanical
Cable O.D.
6 - 15 mm
Lifetime
> 1000 mating cycles
Wiresize
2,5 mm²
Wiresize
14 AWG
Locking device
Quick Lock
Material
Contact plating
4 µm Ag
Contacts
Bronze (CuSn6)
Insert
Polyamide (PA 6 30 % GR)
Locking element
Zinc diecast (ZnAl4Cu1)
Shell
Polyamide (PA 6 30 % GR)
Strain relief
Polyacetal (POM)
Environmental
Temperature range
-30 °C to +80 °C
Product specific
Coding

A-type for power inlet (color coding blue)



Drawing NAC3FCA
