NEUTRIK NF2C B/2
Šifra: 8158
26,41 EUR
*Cijena sa popustom može se ostvariti ukoliko se plaća gotovinom, virmanom (preko računa) ili debitnom i kreditnom karticom odmah i odjednom.
Prikazana cijena je za komad.
Garantiramo najnižu cijenu na tržištu!
U slučaju da pronađete isti proizvod po povoljnijoj cijeni,
molimo Vas da nas kontaktirate na:
info@player.hr

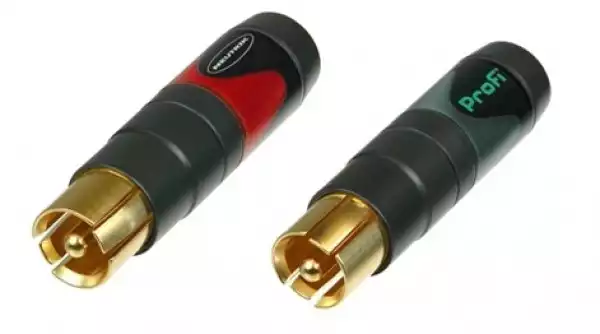

Pair of professional `Phono Plug` (`RCA`- or `CINCH`- type) - marked red and black.
Including 2 x 2 strain reliefs for cable O.D. 3.0 mm to 7.3 mm. Additional strain relief for cable O.D. up to 8.0 mm available as accessory.
Features & Benefits
Makes ground before signal contact and breaks signal before ground
No more disturbing noise and broken speaker cones
Precisely machined to our demanding quality standards
Neutrik unique chuck type strain relief
Gold plated contacts
Sleek barrel with soft touch surface and coloured shrink sleeve
Improved ground solder lug for ease soldering
Title
NF2C-B/2
Connection Type
Profi
Gender
male
Electrical
Capacitance between contacts
≤ 7 pF
Contact resistance
>100G mΩ (inner)
Dielectric strength
1,5 kVdc
Insulation resistance
> 100 GΩ
Rated current per contact
16 A
Rated voltage
50 V
Mechanical
Cable O.D.
3.0 - 7.3 mm
Lifetime
> 2000 mating cycles
Wiresize
2,5 mm²
Wiresize
14 AWG
Wiring
Solder contacts
Material
Contact plating
5 µm Au over 5 µm Ni
Contacts
Brass (CuZn39Pb3)
Insert
PBTP 20 % GR
Shell
Brass (CuZn39Pb3)
Strain relief
Polyacetal (POM)
Environmental
Flammability
UL 94 HB
Standard compliance
IEC 601-14
Protection class
IP 40
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C
Downloads
Assembly Instruction - Profi
Product Guide 2012, 03 Plugs+Jacks
Drawing NF2C
Drawing NF2C
