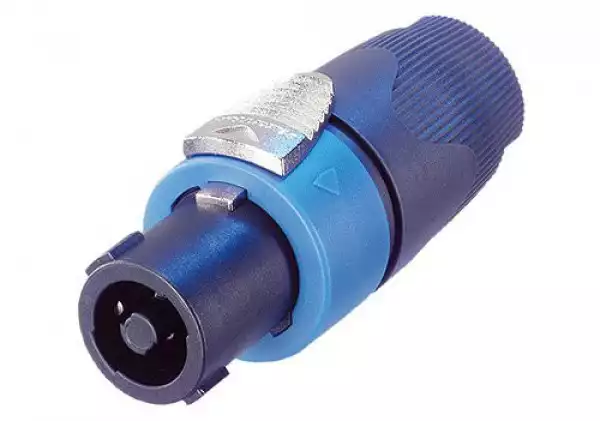

NEUTRIK NL4FX

Šifra: 2319
5,44 EUR
*Cijena sa popustom može se ostvariti ukoliko se plaća gotovinom, virmanom (preko računa) ili debitnom i kreditnom karticom odmah i odjednom.
Prikazana cijena je za komad.

Garantiramo najnižu cijenu na tržištu!
U slučaju da pronađete isti proizvod po povoljnijoj cijeni,
molimo Vas da nas kontaktirate na:
info@player.hr

Prijavi povoljniju cijenu Obavijesti me ako cijena padne Postavi pitanje
Opcija:



Product


Connector Type
Speakon®


Gender
female


Electrical


Contact resistance
< 2 mΩ (after lifetime)


Dielectric strength
4 kVdc (peak)


Insulation resistance
> 1 GΩ (after dampheat)


Rated current per contact
40 A rms continuous


Rated current per contact
50 A audiosignal, duty cycle 50 %


Rated voltage
250 V (Insulation)


Mechanical


Cable O.D.
7 - 14.5 mm


Cable retention force
≥ 220 N (subject to cable O.D. and material)


Lifetime
> 5000 mating cycles


Wire size
4 mm² / 6 mm² (screw type terminals/soldering)


Wire size
12 AWG / 10 AWG


Wiring
screw type terminals or soldering


Locking device
Quick Lock (latch)


Material


Bushing
Polyamide (PA 6 15 % GR) black


Contact plating
4 µm Ag


Contacts
Brass (CuZn39Pb3)


Insert
PBTP 20 % GR


Locking element
Zinc diecast (ZnAl4Cu1)


Shell
PBTP 20 % GR


Strain relief
Polyacetal (POM)


Environmental


Approvals
UL,CSA


Flammability
UL 94 HB


Solderability
Complies with IEC 68-2-20


Temperature range
-30 °C to +80 °C



Product
Connector Type Speakon®
Gender female
Electrical
Contact resistance < 2 mΩ (after lifetime)
Dielectric strength 4 kVdc (peak)
Insulation resistance > 1 GΩ (after dampheat)
Rated current per contact 40 A rms continuous
Rated current per contact 50 A audiosignal, duty cycle 50 %
Rated voltage 250 V (Insulation)
Mechanical
Cable O.D. 7 - 14.5 mm
Cable retention force ≥ 220 N (subject to cable O.D. and material)
Lifetime > 5000 mating cycles
Wire size 4 mm² / 6 mm² (screw type terminals/soldering)
Wire size 12 AWG / 10 AWG
Wiring screw type terminals or soldering
Locking device Quick Lock (latch)
Material
Bushing Polyamide (PA 6 15 % GR) black
Contact plating 4 µm Ag
Contacts Brass (CuZn39Pb3)
Insert PBTP 20 % GR
Locking element Zinc diecast (ZnAl4Cu1)
Shell PBTP 20 % GR
Strain relief Polyacetal (POM)
Environmental
Approvals UL,CSA
Flammability UL 94 HB
Solderability Complies with IEC 68-2-20
Temperature range -30 °C to +80 °C
