NEUTRIK NL4MMX
Šifra: 2320
9,55 EUR
*Cijena sa popustom može se ostvariti ukoliko se plaća gotovinom, virmanom (preko računa) ili debitnom i kreditnom karticom odmah i odjednom.
Prikazana cijena je za komad.
Garantiramo najnižu cijenu na tržištu!
U slučaju da pronađete isti proizvod po povoljnijoj cijeni,
molimo Vas da nas kontaktirate na:
info@player.hr

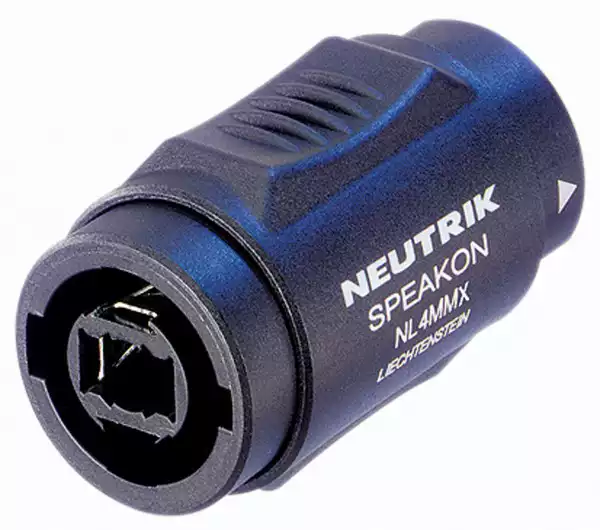

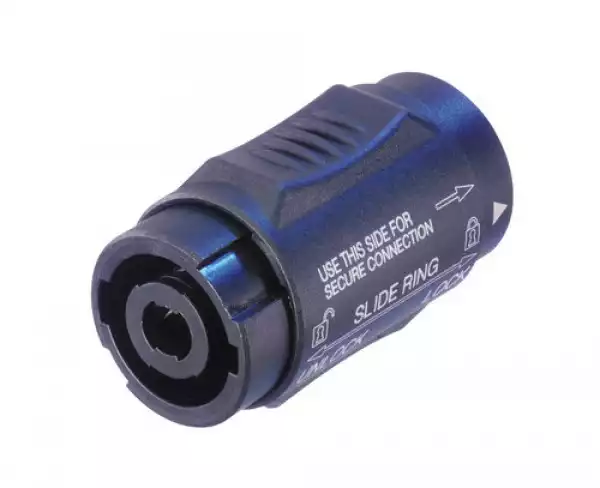

Neutrik // NL4MMX -Speakon Cable To Cable Adapter 4-Pole
4 pole lockable coupler, links two NL2/4F*s together for cable extension. Can be permanently attached to NL2/4F*.
There are no technical infos for this product.(210_736583204)
Product
Gender
male
Electrical
Contact resistance
≤ 3 mΩ (after lifetime)
Dielectric strength
4 kVdc (peak)
Insulation resistance
> 1 GΩ (after dampheat)
Rated current per contact
15 A rms continuous
Rated current per contact
30 A audiosignal, duty cycle 50 %
Rated voltage
250 V (Insulation)
Attention
speakON is NOT to be used as an AC mains connector!
Mechanical
Lifetime
> 5000 mating cycles
Locking device
Quick Lock
Material
Contact plating
4 µm Ag
Contacts
Bronze (CuSn6)
Insert
Polyamide (PA 6 30 % GR)
Shell
Polyamide (PA 6 30 % GR)
Environmental
Flammability
UL 94 HB
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C
4 pole lockable coupler, links two NL2/4F*s together for cable extension. Can be permanently attached to NL2/4F*.
There are no technical infos for this product.(210_736583204)
Product
Gender
male
Electrical
Contact resistance
≤ 3 mΩ (after lifetime)
Dielectric strength
4 kVdc (peak)
Insulation resistance
> 1 GΩ (after dampheat)
Rated current per contact
15 A rms continuous
Rated current per contact
30 A audiosignal, duty cycle 50 %
Rated voltage
250 V (Insulation)
Attention
speakON is NOT to be used as an AC mains connector!
Mechanical
Lifetime
> 5000 mating cycles
Locking device
Quick Lock
Material
Contact plating
4 µm Ag
Contacts
Bronze (CuSn6)
Insert
Polyamide (PA 6 30 % GR)
Shell
Polyamide (PA 6 30 % GR)
Environmental
Flammability
UL 94 HB
Solderability
Complies with IEC 68-2-20
Temperature range
-30 °C to +80 °C
Neutrik // NL4MMX -Speakon Cable To Cable Adapter 4-Pole
4 pole lockable coupler, links two NL2/4F*s together for cable extension. Can be permanently attached to NL2/4F*.
|
||||||||||||||||||||||||||||||||||||||||||||
