Top model with gold plating and Pro E diamond!

Perfect for usage in discotheques and clubs: provides the best possible sound quality available in a DJ cartridge!

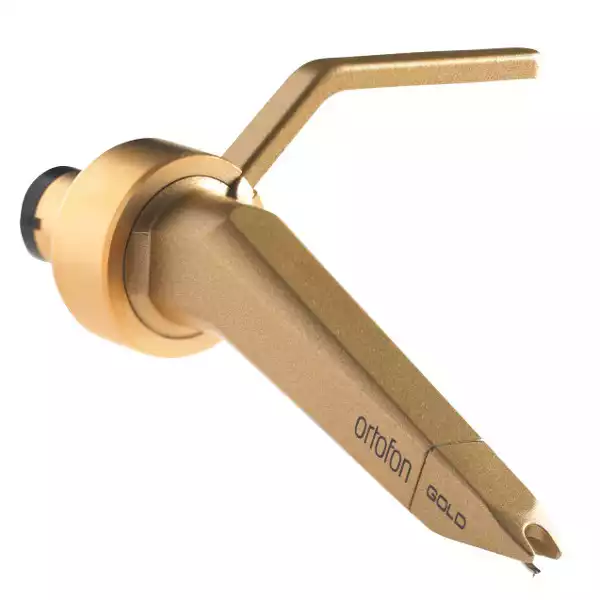

Designed to commemorate the release of the limited edition Technics SL-1200LTD and SL-1200GLD, the Concorde Gold was made to compliment the attractive stylings of these limited edition turntables and to provide the best possible sound quality available in a DJ cartridge.

Using the cartridge for the first time feels like striking gold. It is indeed the flagship product with its gold plating and special Pro E diamond. The Gold enjoys an excellent reputation for its amazing sound quality.。

Compatible to a very wide range of turntables and perfect for all entertainment purposes.



Output voltage at 1000Hz, 5cm/sec.

6 mV

Channel balance at 1kHz

1,5 dB

Channel separation at 1kHz

23 dB

Channel separation at 15 kHz

15 dB

Frequency range at -3dB

20-22.000 Hz

Frequency response

20-20.000 Hz +/- 2dB

Tracking ability at 315 Hz at recommmende tracking force

80 μm

Compliance, dynamic lateral

7 μm/m N

Stylus type

Special Elliptical

Stylus tip radius

r/R 13/25 μm

Tracking force range

2,0-5,0 g (20-50 mN)

Tracking force recommended

3,0 g (30 mN)

Tracking angle

20°

Internal impedance, DC resistance

750 Ohm

Internal inductance

450 mH

Recommended load resistance

47 kOhm

Recommended load capacitance

200-600 pF

Cartridge weight

18,5 g

Replacement stylus unit

Gold
