ORTOFON CONCORDE NIGHT CLUB E MKII Twin Pack
Garantiramo najnižu cijenu na tržištu!
U slučaju da pronađete isti proizvod po povoljnijoj cijeni,
molimo Vas da nas kontaktirate na:
info@player.hr
Night Club MKII offers increased output voltage for powerful, energeticsound and enhanced performance from integrated phono preamps (suchas the ones found in DJ mixers).The redesigned elliptical stylus provides well-balanced high frequencyresponse and ample low end reproduction. The Night Club MKII marks anew generation of club cartridges, designed to surpass the gold standardset by the original Night Club cartridge.

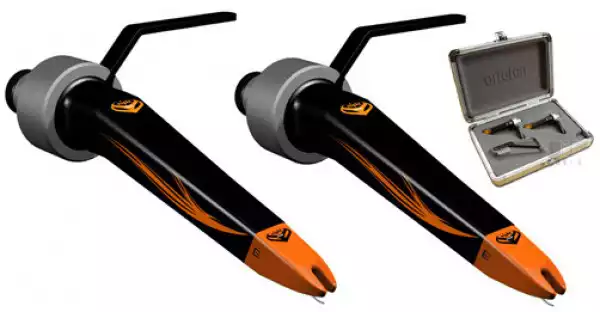

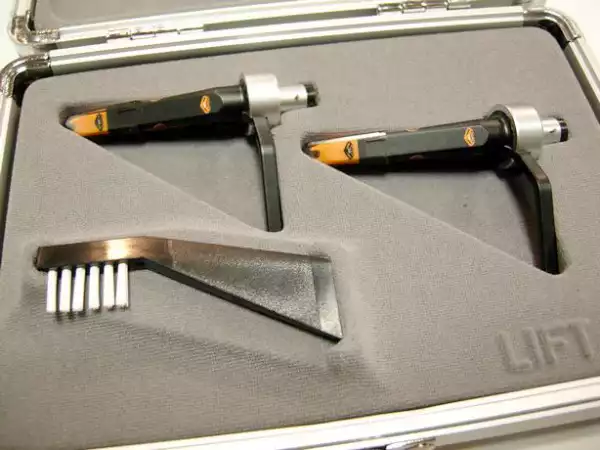

Concorde Nightclub E MKII Twin Pack With Carry Cases
Night Club MKII offers increased output voltage for powerful, energeticsound and enhanced performance from integrated phono preamps (suchas the ones found in DJ mixers).The redesigned elliptical stylus provides well-balanced high frequencyresponse and ample low end reproduction. The Night Club MKII marks anew generation of club cartridges, designed to surpass the gold standardset by the original Night Club cartridge.
Specification
Output voltage at 1000Hz, 5cm/sec - 8 mV
Channel balance at 1kHz - 1.5 dB
Channel seperation at 1kHz - 23 dB
Channel seperation at 15kHz - 15 dB
Frequency range at -3 dB - 20-22000 Hz
Frequency response - 20-22000 Hz +/-1.5dB
Tracking ability at 315Hz at recommended tracking force - 80
Compliance, dynamic, lateral - 7 m/mN
Stylus type - Special Elliptical
Stylus tip radius - r/R 13/25
Tracking force range - 2.0-5.0g (20-50mN)
Tracking angle - 20º
Internal impedance, DC resistance - 1000 Ohm
Internal Inductance - 580 mH
Recommended load resistance - 47 kOhm
Recommended load capacitance - 200-600 pF
Cartridge weight - 18.5 g
Replacement stylus unit - Nightclub E MKII
