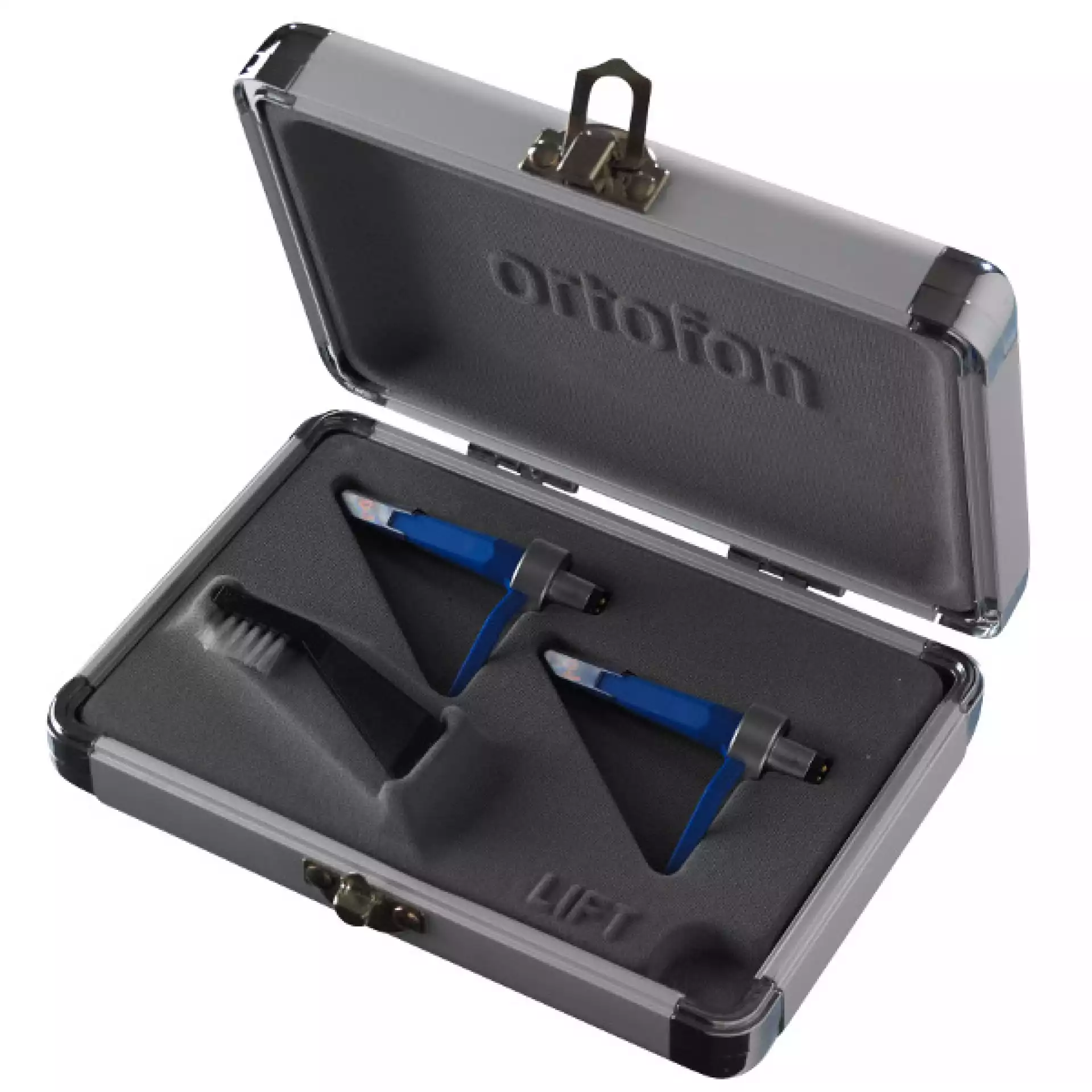

ORTOFON CONCORDE TWIN 'DJ' S
Garantiramo najnižu cijenu na tržištu!
U slučaju da pronađete isti proizvod po povoljnijoj cijeni,
molimo Vas da nas kontaktirate na:
info@player.hr

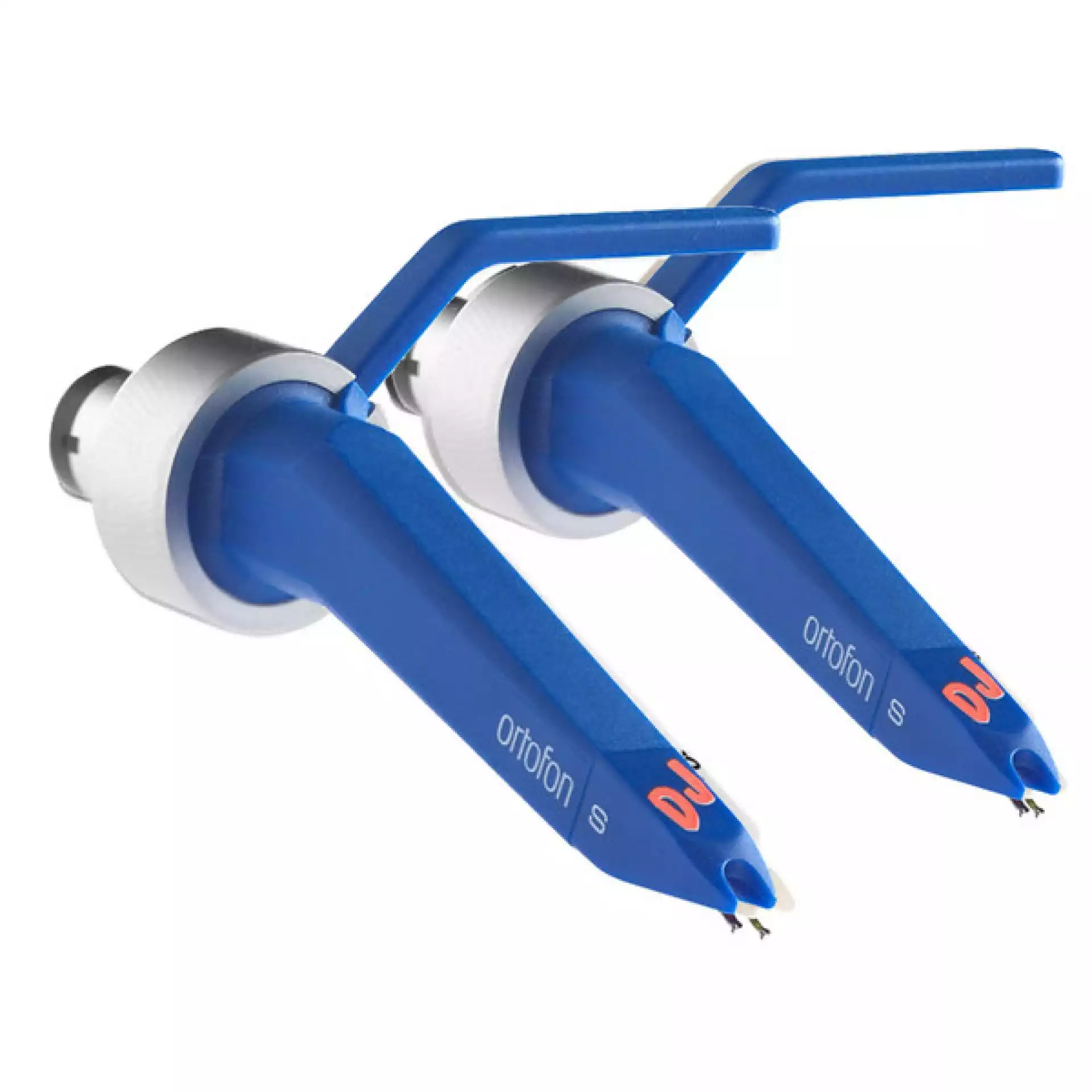

DJ S is a solid-built cartridge in a new blue nylon material. It has a fine spherical stylus and a special developed and extremely balanced cantilever
|
Output voltage at 1000Hz, 5cm/sec. |
6 mV |
|
Channel balance at 1kHz |
2 dB |
|
Channel separation at 1kHz |
23 dB |
|
Channel separation at 15 kHz |
15 dB |
|
Frequency range at -3dB |
20-20.000 Hz |
|
Frequency response |
20-18.000 Hz 3dB/-2dB |
|
Tracking ability at 315 Hz at recommmende tracking force |
80 μm |
|
Compliance, dynamic lateral |
9 μm/m N |
|
Stylus type |
Spherical |
|
Stylus tip radius |
R 18 μm |
|
Tracking force range |
2,0-4,0 g (20-40 mN) |
|
Tracking force recommended |
3,0 g (30 mN) |
|
Tracking angle |
20° |
|
Internal impedance, DC resistance |
750 Ohm |
|
Internal inductance |
450 mH |
|
Recommended load resistance |
47 kOhm |
|
Recommended load capacitance |
200-600 pF |
|
Cartridge weight |
18,5 g |
|
Replacement stylus unit |
