The AM 1204FX compact mixers feature four mono microphone/line inputs in conjunction with two stereo line inputs for flexible input possibilities. Each channel features a super-musical 3-band equalizer, while mono channels also offer 75Hz low-cut filters for removing stage rumble and other unwanted low-frequency sounds. The AM 1204FX features a 32-bit DFX processor with 16 preset effects each with its own user-adjustable parameter. All AM 1204FX mixers offer an addition ALT 3/4 mix that redirects muted signals from all channels to their very own mix. A universal power supply, accepting AC voltages from 100V to 240V, ensures the unit can be used globally.

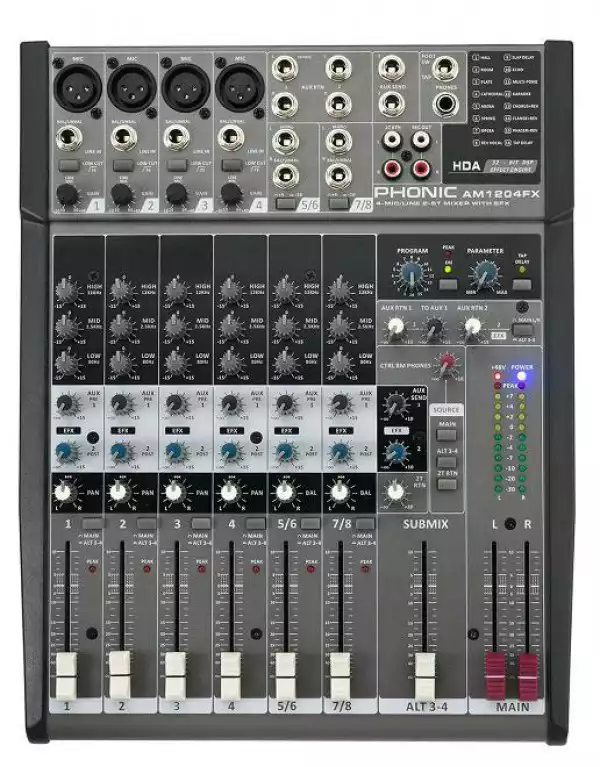

4 Mic/Line, 4 Stereo Line Input Compact Mixer with DFX

• Four mono mic/line channels with two stereo line inputs
• Accepts balanced and unbalanced input connections
• Four of Phonic's famously low-noise preamplifiers
• Control room/Phones source matrix for monitor flexibility
• EFX/AUX send cue for monitoring individual channels
• Musical 3-band equalizer available on each and every channel
• 75Hz low-cut filter on mono channel for removing rumble
• 32-bit DFX processor with 16 presets
• Parameter control for adjusting each presets individual parameter
• Stereo RCA 2T Tape In and Rec Out
• Global +48V phantom power
• Stereo balanced XLR master outputs
• ALT 3/4 mix for diverting signals from muted channels
• Universal power supply, accepting 100V to 240V AC
• Ideal for sub mixes, small performances and studio application
