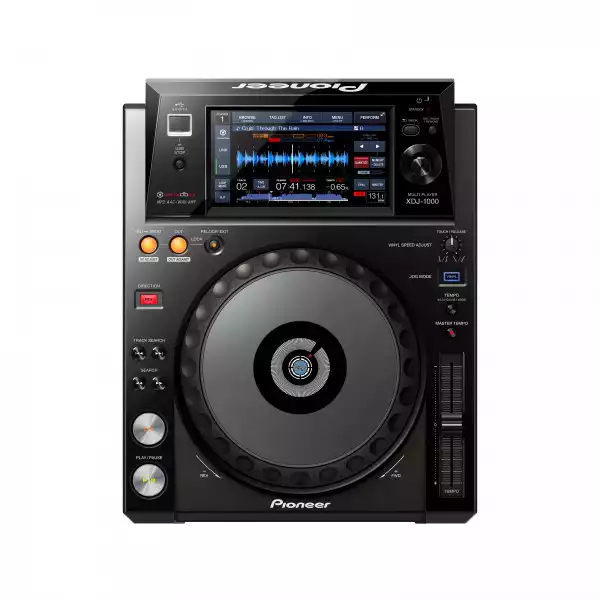

Large, full color touch screen with intuitive GUI

The 7-inch, full color LCD touch screen gives DJs instinctive control and enables the ultimate creativity. The GUI is divided into three sections: Browse, Play and Perform, so DJs can effortlessly see and access all the features they need, without the screen being over-crowded.

Faster browsing with Qwerty KEYBOARD and KEYWORD SEARCH

The Browse function is speedier than ever, with the ability to call up a Qwerty keyboard and search for keywords, and scroll using the touch screen or large rotary dial. Plus DJs can choose how they view tracks: list, artwork, or custom view.

MY SETTINGS function including color-coded USB port light

DJs can chose their personal preferences in rekordbox – including QUANTIZE ON/OFF and MASTER TEMPO ON/OFF – and the XDJ-1000 will automatically download them. Plus DJs can color code their playlists in rekordbox, e.g. red for techno or blue for drum & bass, and the light around the USB port will reflect that setting for ease of identification in the booth.

Specifications

• Playable media



  • iPhone/iPod touch, Android phone etc
  • USB storage devices（flash memory/HDD etc)
  • Computers （Mac/Windows PC)



• Playable file: MP3, AAC, WAV, AIFF
  (iOS version of rekordbox™: MP3 and AAC only)
• USB storage support file systems: FAT, FAT32, HFS+
• Frequency response: 4 Hz ～ 20 kHz
• S/N ratio: 115 dB or more
• Total harmonic distortion: 0.003 % or less

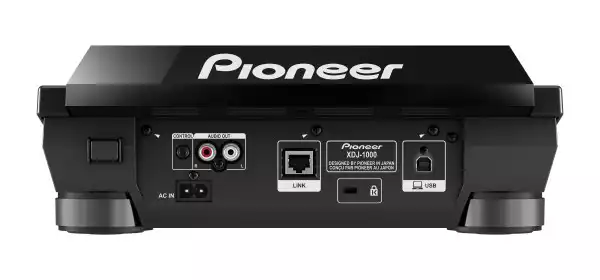

• USB ports: USB A port x 1, USB B port x 1
• Audio output ports: AUDIO OUT (RCA) x 1, CONTROL(φ3.5 mm mini plug) x 1
• Other ports: LAN（100Base-TX）x 1
• Audio output voltage: 2.0 Vrms
• Electricity consumption: 21 W
• Max external dimension: (W x D x H) 305 x 382.5 x 110 mm
• Weight: 3.3 kg

"rekordbox™" SYSTEM requirements

• Compatible Operating Systems （PC)



  • Windows 8 / Windows 8.1 / Windows 8 Pro / Windows 8.1 Pro
  • Windows® 7 Home Premium / Professional / Ultimate
  • (CPU) Intel® Pentium® Dual-Core 2.0GHz or larger / (Memory) 2GB



• Compatible Operating Systems （Mac）



  • Mac OS X (v10.10, 10.9, 10.8, 10.7 or 10.6)
  • (CPU) Intel® Pentium® Dual-Core 2.0GHz or larger / (Memory) 2GB



• Free Hard Drive Space



  • 250 MB of free HD space (excluding space necessary for storing music files)



• Sound



  • Audio output to speakers, headphones, etc. (built-in or external audio device)



• USB port



  • A USB port for connection of the USB storage device is required to transfer music files to a USB device (flash memory, hard disk, etc.).



• LAN port



  • An Ethernet LAN adapter (RJ45 port) for communicating with the DJ player is required to transfer music files to a Pioneer DJ player (i.e. CDJ-2000NXS, XDJ-1000). For details, check the operating instructions of the Pioneer product, etc.



• Compatible Files



  • MP3、AAC、WAV、AIFF



• Display



  • XGA(1,280×720) or greater recommended



• Internet Access



  • For user registration or inquires, use a web browser supporting 128-bit SSL (i.e. Safari 2.0 and above, Internet Explorer® 8.0 and above).
