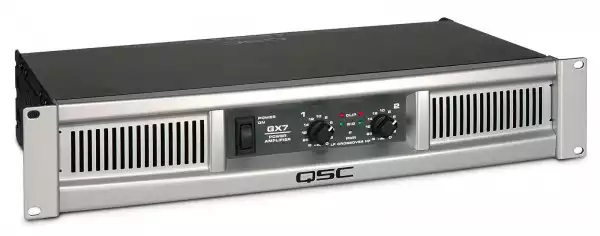

The GX7 professional power amplifier continues in the tradition of QSC's top-selling GX Series professional power amplifiers by offering an attractive combination of power, fidelity, configurability, long-term reliability, and overall value.
At the heart of the GX7 is an all-new, advanced power supply based on the road-proven PowerLight Series technology. The result is a more overall power output in a lightweight casing compared to previous GX models-without any sacrifice in audio quality.
At 1000W per channel at 4 ohms, the GX7 provides more than ample power to connect up to four 500W 15" 2-way speakers or two 1000W subwoofers at a time. This will help to keep your overall system cost down while still maintaining maximum performance levels. The 8 ohm output is 725 watts per channel which yields considerable headroom and increased dynamic range for today's popular loudspeakers.
QSC // GX7 - Professional Power Amplifier / Profesionalno P
Provides 1,000W at 4 ohms in a lightweight design with special protection technology.
The GX7 professional power amplifier continues in the tradition of QSC's top-selling GX Series professional power amplifiers by offering an attractive combination of power, fidelity, configurability, long-term reliability, and overall value.
At the heart of the GX7 is an all-new, advanced power supply based on the road-proven PowerLight Series technology. The result is a more overall power output in a lightweight casing compared to previous GX models-without any sacrifice in audio quality.
At 1000W per channel at 4 ohms, the GX7 provides more than ample power to connect up to four 500W 15" 2-way speakers or two 1000W subwoofers at a time. This will help to keep your overall system cost down while still maintaining maximum performance levels. The 8 ohm output is 725 watts per channel which yields considerable headroom and increased dynamic range for today's popular loudspeakers.
GX Series amplifiers are ideal for professional entertainers who require maximum performance and portability on a limited budget. The hallmarks of the QSC brand - professional audio quality, meticulous engineering, precision manufacturing and long-term reliability - are all intrinsic to GX. Add contemporary styling, multiple input/output options, light weight, and advanced protection circuitry, and the GX Series clearly represents real value - something everyone can use.
The GX7 adds the road-proven PowerLight supply to the Class H output section, for more overall output power and additional weight savings. The result is one of the highest power-to-weight ratios in the industry. A low-noise variable-speed fan with rear-to-front airflow keeps amplifiers and racks cool.
As always, GX Series amplifiers are fully protected from the usual hazards of the trade, ensuring stable performance and long life.
GuardRail™
GuardRail protection delivers full peak power while preventing detrimental overloads. During excessive clipping, or extreme overheating, GuardRail reduces gain just enough to preserve the integrity of the music, protect the speakers and keep the audience excited, without unprofessional distortion levels or shutdowns.
Subwoofer/Satellite Crossover
A subwoofer reduces strain on the full-range speaker, allowing it to play louder, or letting a smaller speaker do the same job. The GX Series supports this mode with a Crossover switch that splits the full-range input entering Ch 1, sending 20 Hz -100 Hz to the sub (Ch 1) and 100 Hz - 20 kHz to the top box (Ch 2). The front panel gain controls balance the sub and top box, while GuardRail optimizes peak power into the sub and top individually, for greater musical impact and dynamic range. GuardRail optimizes peak power into the sub and top individually, for greater musical impact and dynamic range.
Features
- Road-proven PowerLight Series amplifier technology
- GuardRail (also found in K and KW Series loudspeakers) protects both the amp and speakers from damaging clipping and overload without audible pumping or distortion
- Subwoofer/Satellite crossover built-in
- Inputs: XLR, 1/4" TRS, and phono input connectors for compatibility with any source
- Minimum depth chassis (10.1"/257mm) fits in compact, inexpensive effects racks
- Outputs: Speakon combo accepts 1/4" (TS) plugs or Speakon 2-pole and 4-pole plugs (connects 2 poles only). Binding posts support all other speaker wiring systems

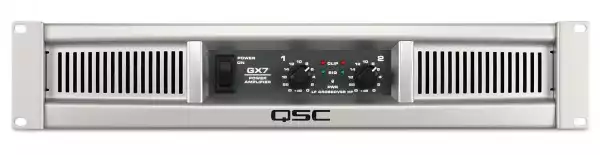

- Front panel LEDs monitor Power, Signal, and Clipping
- Lightweight
GX7 Stereo Power Amplifier Specifications
Power Rating:
8Ω / both channels driven / 1 kHz: 725W
8Ω / single channel driven / 1 kHz: 800W
4Ω / both channels driven / 1 kHz; 1,000W
4Ω / single channel driven / 1 kHz; 1,200W
Distortion (typical): 20 Hz - 20 kHz: 1 dB below rated power 8Ω: less than 0.02% / 4Ω: less than 0.05%
Signal to Noise: (20 Hz - 20 kHz) 100dB
Input Sensitivity: 1.2 Vrms
Voltage Gain: (8Ω) 33.1dB
Output Circuitry: 2-tier Class H
Power Requirements: (1/8 power, pink noise at 4Ω, 120 V): 10.1A
Frequency Response: 20 Hz - 20 kHz, +0, 1 dB
Dynamic Headroom (4Ω): 2dB
Input Impedance (Ω): Greater than 20k (balanced)
Maximum Input Level: +24 dB (16 Vrms)

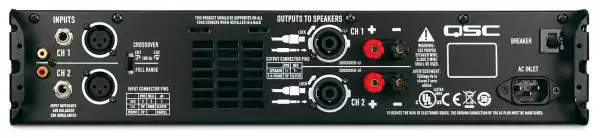

Input Connectors (each channel): 3-pin XLR and 1/4" TRS, balanced, parallel Phono, unbalanced
Output Connectors (each channel): Speakon®, 1/4", Binding Posts
Amplifier and Load Protection: Short circuit, open circuit, thermal, RF protection
Load protected against DC faults
Front Panel Controls and Indicators: Gain controls, 21 detents
Red Clip LEDs, proportional, 0.1% THD threshold
Green Signal LEDs, threshold -35 dB
Blue Power LED, AC on
Rear Panel Controls: Full Range / Crossover switch
100 Hz, 3rd order LP (sub), 2nd order HP (top)
Amplifier dimensions (HxWxD): 3.5" (2RU) x 19" x 10.1" (89mm x 483mm x 257mm)
Carton Dimensions (HxWxD): 5.75" x 23" x 14" (146mm x 584mm x 355mm)
Net Weight: 15.5lb. (7kg)
