Lightweight and comfortable wireless headset mic technology, perfect for hands-free stage performances.


No matter whether you are a speaker, presenter or rocking the crowd, the XS Wireless Presentation Set puts you in front of every stage. The XSW 52-A is part of the XS series of wireless mics from Sennheiser, one of the industry’s renowned leaders in microphone technology. The XS series receiver runs on 960 tunable frequencies across 24 MHz, to avoid any possible interference with your sound. The receivers are all made of solid-construction metal housing, and provide up to 10 hours of operation time for a worry-free performance.

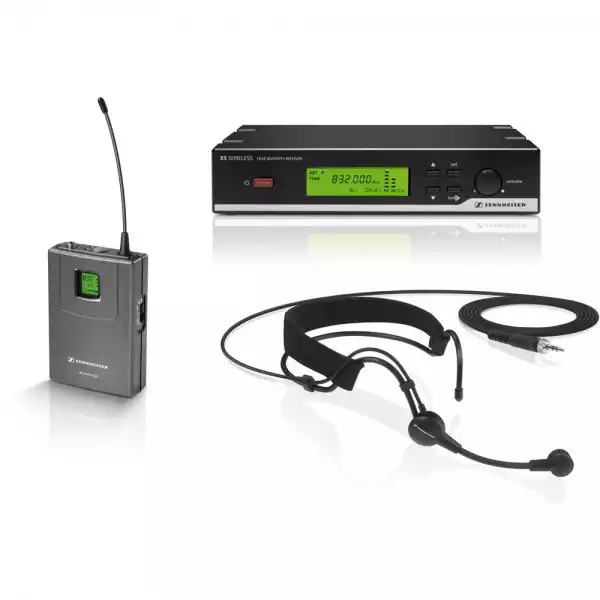

The XSW 52-A Headmic Set features a compact bodypack transmitter and a lightweight, comfortable headset mic that will give you absolute freedom of movement for a vivid and impressive live performance. With 2.4GHz synchronization between the transmitter and receiver and 10mW of output, the XSW 52-A Headmic Set will have you performing from a range of up to 250 feet in ideal RF environments. There are 8 frequency banks containing 12 coordinated frequencies each, which will allow for a fast setup of multi-channel systems. Connections include dual outputs with balanced XLR and unbalanced 1/4", selectable for either mic or line level uses. The package includes the ME 3 cardioid headset mic, SK 20 bodypack transmitter, EM 10 true diversity receiver, NT 2-3 power supply, 2 rod antennas, and 2 AA batteries.


Features

Easy-to-use, all-in-one package for speakers, singers and presenters

Comfortable, lightweight headset mic and compact bodypack transmitter give you absolute freedom on stage
All metal, True Diversity receiver for worry-free operation
Up to 10 hours of operation using a pair of AA batteries
960 tunable frequencies across 24 MHz, to avoid interference
Easy 2.4GHz synchronization between transmitter and receiver, even at a distance
8 Frequency banks containing 12 coordinated frequencies each, for fast setup of multi-channel systems
Dual outputs with balanced XLR and unbalanced 1/4", selectable for either mic or line level
10mW Output, for up to 250 feet of transmission range in a good RF environment

XSW 52-A Wireless Headmic Set Specifications:


ME 3 Headset Mic Specs:
Microphone type: pre-polarised condenser
Input sensitivity: 1.6 mV/Pa
Pick-up pattern: cardioid
Max. SPL: 150 dB
SK 20 Bodypack Transmitter Specs:
RF output power: 10mW
AF frequency response: 60Hz – 16kHz, Line input " 100Hz – 16kHz, Mic input
AF input: 3.5 mm jack
Nom. Input voltage (Mic/Line): 0.5 Vrms/1.8 Vrms (Mic/Line) at –30dB gain
Power supply: 2 AA batteries, 1.5V
Operating time: up to 10 hours
Dimensions: 2-5/8” × 3-3/4” × 15/16”
Weight: 0.21 lb.

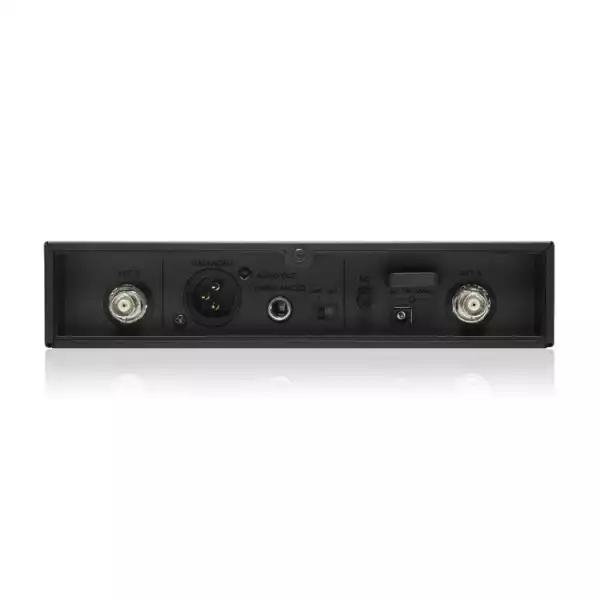

EM10 Receiver Specs:
Receiver principle: True Diversity
Sensitivity (at peak deviation): < 3μV at 52dBa rms S/N
Adjacent channel rejection: ≥ 60dB
Intermodulation rejection: ≥ 50dB
Blocking: ≥ 65dB
AF frequency response: 60-16,000Hz
Pilot tone: 32.768kHz
Antenna input: 2 BNC connectors, 50-ohms
AF output voltage (at peak dev., 1 kHz AF): 1⁄4’’ (6.3 mm) jack socket (unbalanced): +8 dBu; XLR socket (balanced): +14 dBu
Power supply: 12 VDC nom./300 mA
Dimensions: 7-7/8” × 1-5/8” × 5”
Weight: 1.6 lb.
Package Includes:
ME 3 clip-on mic, SK 20 bodypack transmitter, EM 10 true diversity receiver, NT 2-3 power supply, 2 rod antennas, 2 AA batteries, Pouch, Instruction manual
