High-value phonograph cartridge fits 85% of turntables with a P-mount design and standard mount adapter. Features include a natural bi-radial diamond tip teamed with a tubular aluminum alloy stylus cantilever, universal mount, and low tracking force.

Ideal for Turntables

Excellent high-value cartridge that fits 85% of turntables. Smooth sound throughout the frequency range. P-mount design with Standard mount adapter.

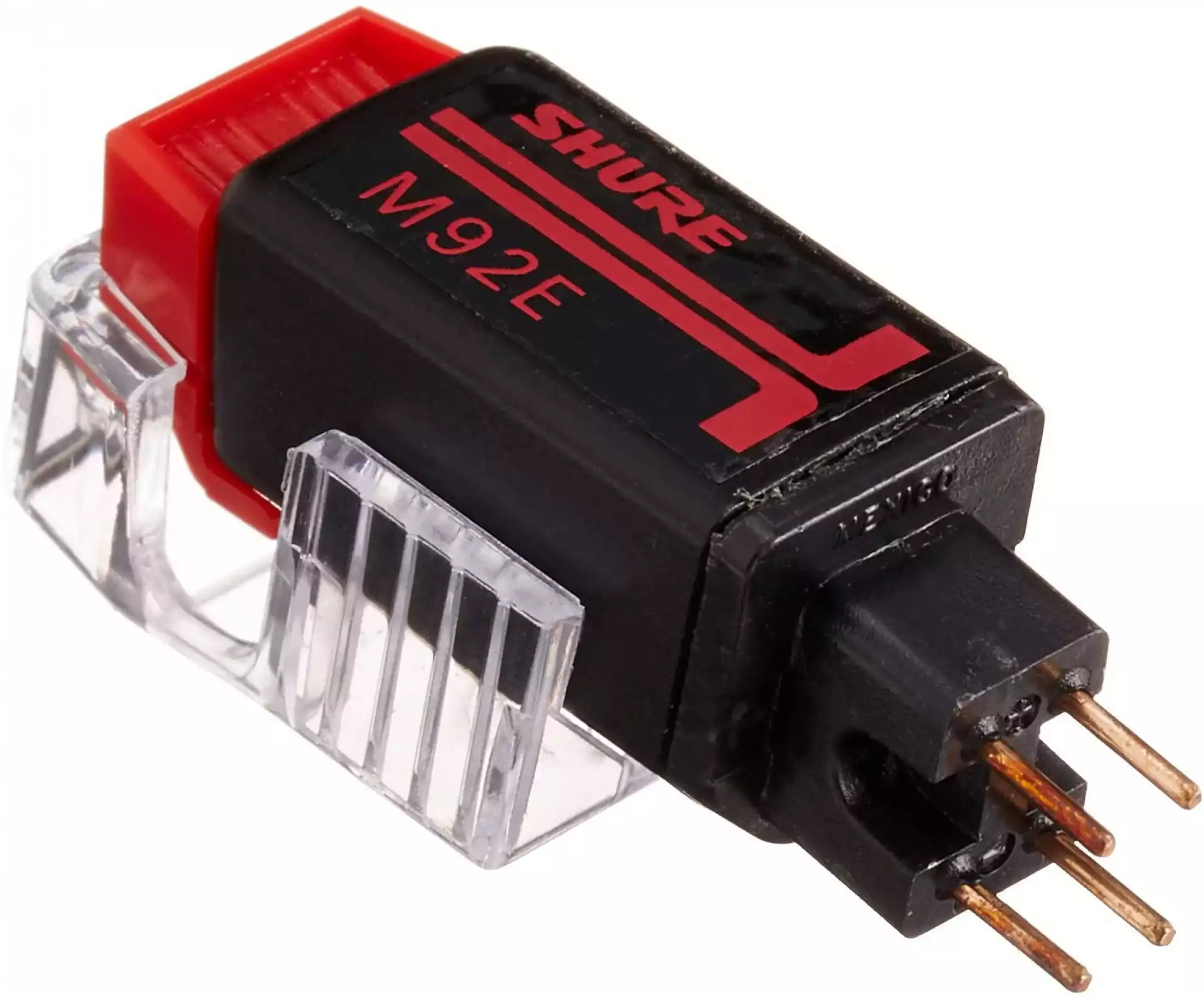

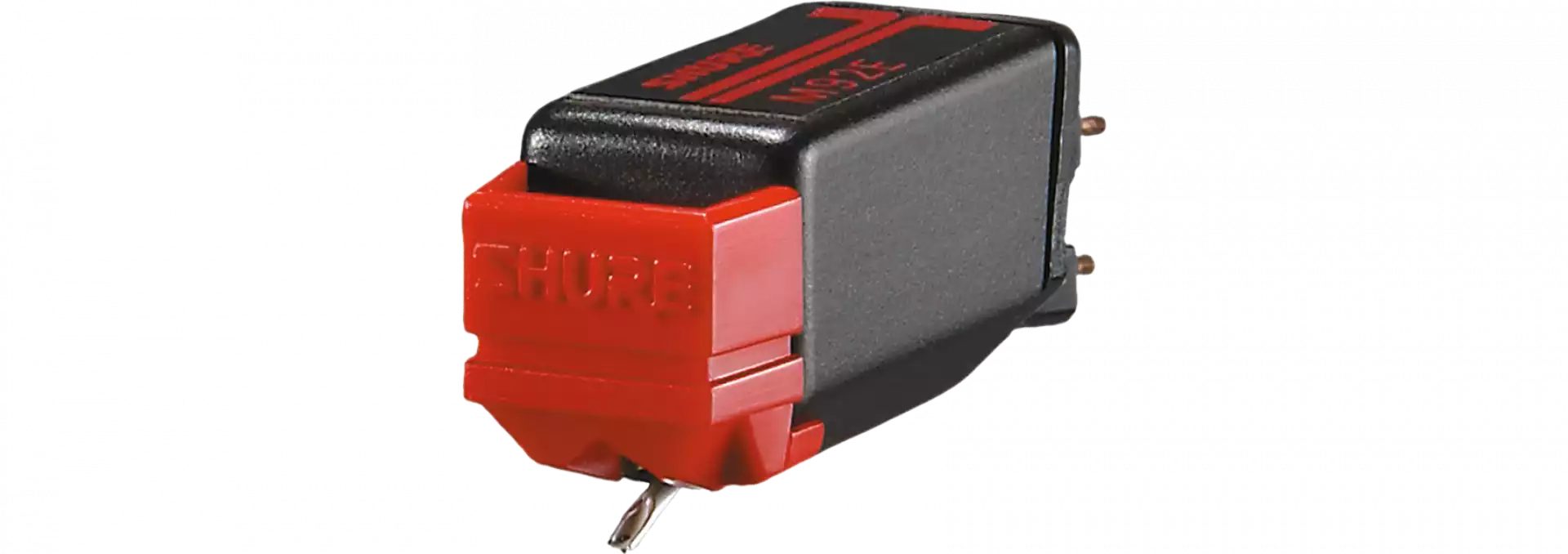

The versatile M92E fits both of the major types of tone-arm mounts in use today. This high-value model offers faithful sound reproduction at a very attractive price. A natural bi-radial diamond tip teamed with a tubular aluminum alloy stylus cantilever accurately traces the grooves of your records for a difference you can hear.

Universal Mount

Fits both of the major types of tonearm mounts in use today, making it compatible with over 85% of turntables.

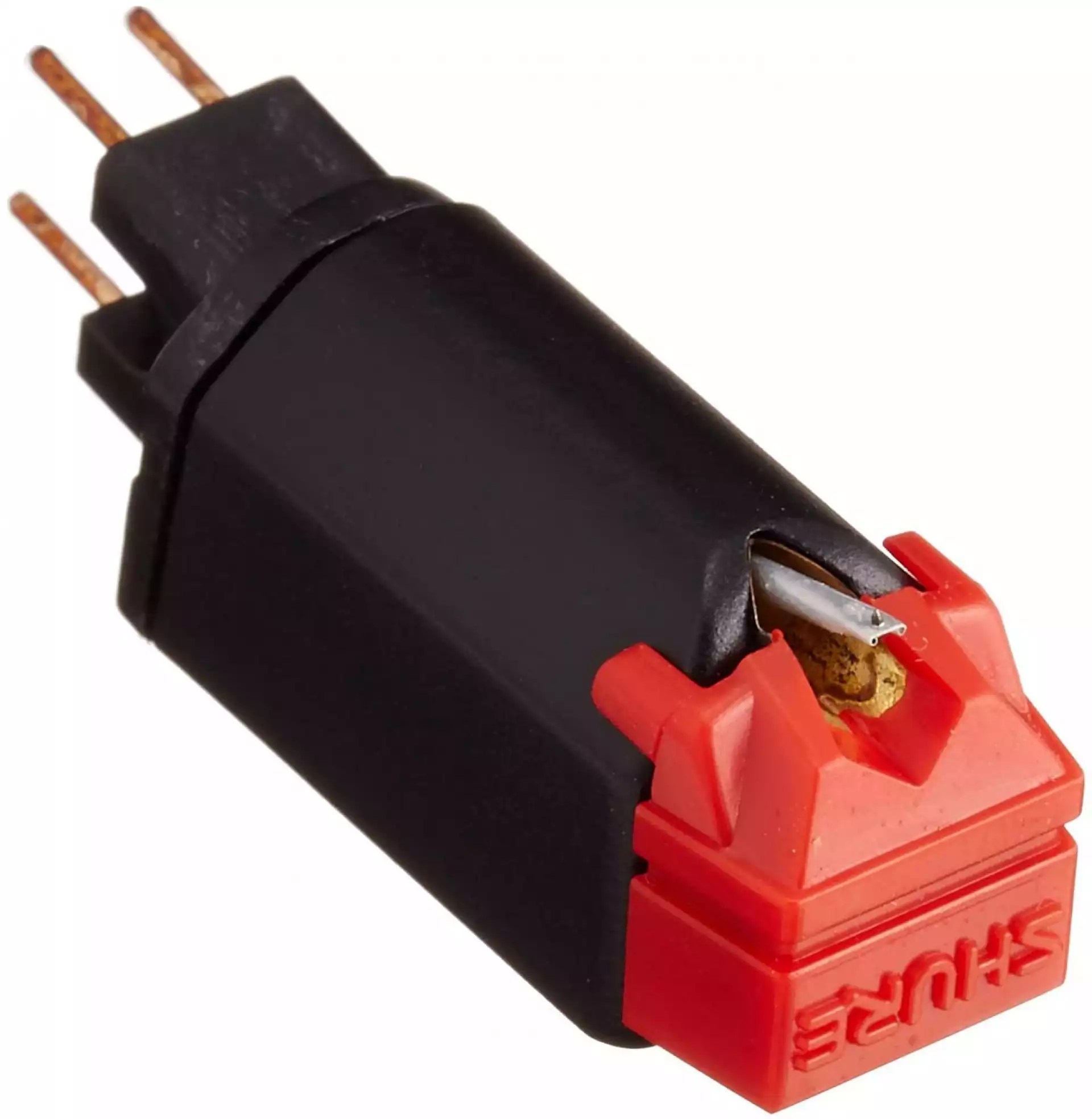

Biradial Diamond Tip + Tubular Aluminum Alloy Stylus Cantilever Accurately traces the grooves of your records for smooth sound throughout the frequency range.

Low Tracking Force

Minimizes wear on your irreplaceable vinyl collection.

Technical specifications

Weight:

7 g

Phono height:

15

Frequency Range:

20 Hz – 18 kHz

Cartridge type:

Cartridge

Uses:

Spinning

Further Technical Specifications

Further Specs:

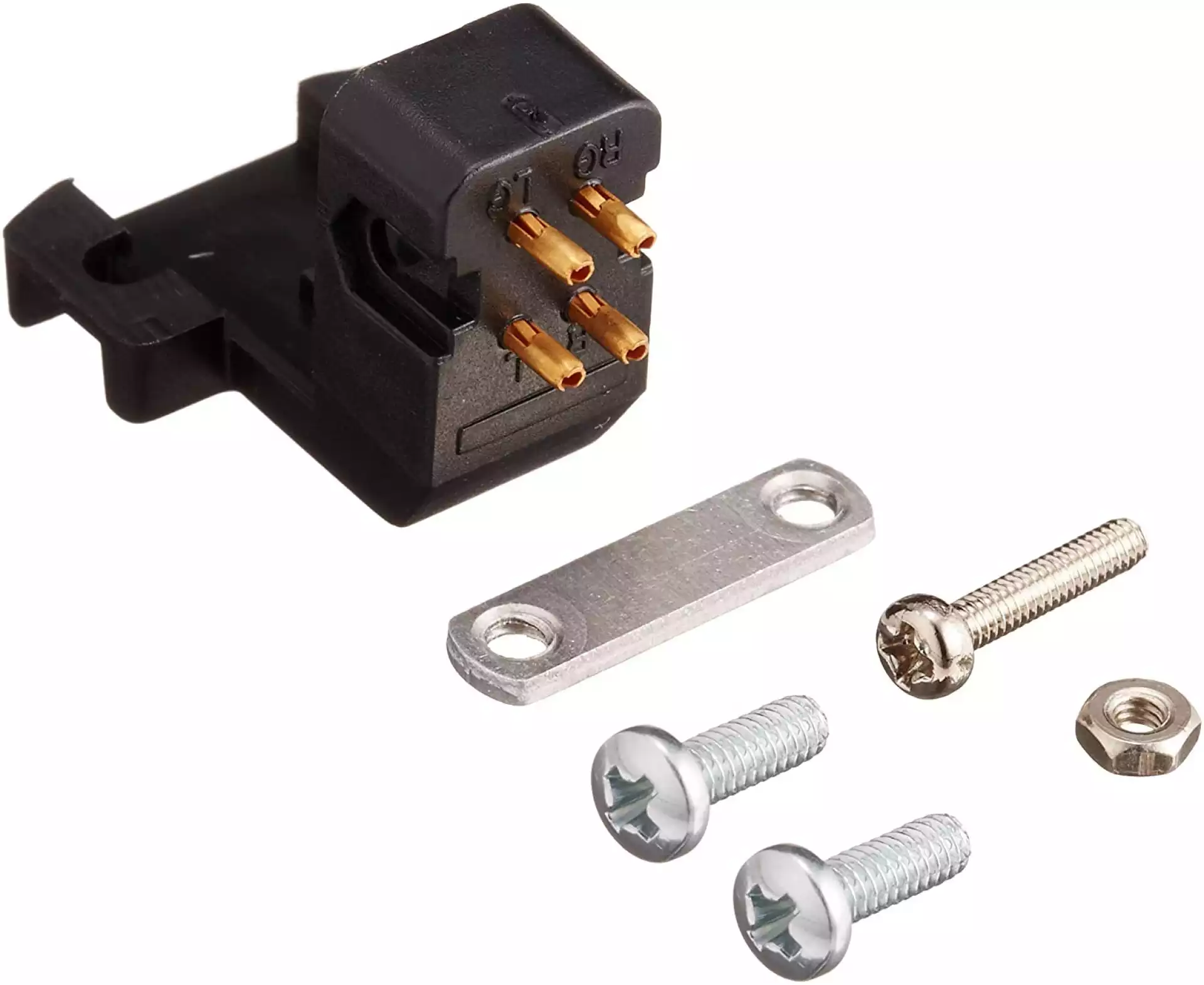

Tone Arm Mount: T4P with Standard mount adapter

Cartridge Type: MM

Output Voltage: 5,0 mV

Recommended Load: 47 kΩ; 250 pf

Tracking Force Range: 0,75 - 1,50 g

Tracking Force Optimum: 1,25 g

Trackability: 400 Hz: 24 cm/s

(Stylus) Cantilever:

Shure Type I

Alluminum alloy / tubular

Wall thickness/diameter 1 mil/30 mil

Diamond Stylus Tip:

Biradial 0.4 x 0.7 mil.

Compliance: 25 µm/mN

Frequency Response: 20 Hz - 18 kHz

Stereo Channel Balance: 2 dB

Channel Separation (at 1kHz): 20 dB

Net Weight: 5,9 (7,4) g

Replacement Needles:

N92E
