The SVS SB-2000 Subwoofer achieves a staggering 19-240 Hz frequency response from an enclosure weighing under 16Kg. and measuring 36 cm all-around (including feet and grille). The subwoofer’s weight, compact footprint and elegant appearance make it easy to set-up in any room. It’s also one of the best subwoofers for 5.1 home theater and other surround sound systems.

No small performer, the SB-2000 matches or beats the output levels of subwoofers twice the size and weight. An innovative driver and amplifier, high end materials and revised tuning let the SB-2000 Subwoofer achieve levels of articulation, musicality, dynamics and fathomless extension unequaled in other compact subwoofers.

HCC Best Buy!

"Essentially, there's nothing not to like about the SB-2000's performance. Excellent value for money; quick, agile performer; impressive low-end extension; easy to setup"



Product Highlights:

• frequency response: 19-220 Hz (±3 dB)

• built-in Class D amplifier delivers 500 watts RMS of continuous power (1100 watts peak dynamic power)

• advanced DSP processor maintains control over the subwoofer at all drive levels for refined, low-distortion sound

• lightweight 12" aluminum woofer cone with powder-coated cast aluminum basket for high efficiency and low distortion

• acoustic suspension (sealed) cabinet design

• rear-mounted volume, crossover, phase, and power controls

• digital actuator control knobs for precise and noise-free adjustment

• continuously variable low-pass 50-160 Hz crossover with a disable (LFE) setting for connecting an A/V receiver

• continuously variable phase control (0-180°)

• main power on/off switch plus auto standby/on mode

• line-level/LFE RCA inputs

• filtered RCA line outputs (fixed 80 Hz, 12dB/octave high-pass)

• remote trigger input

• protective non-resonant steel mesh grille

• detachable power cord

• premium black ash woodgrain vinyl finish

Features

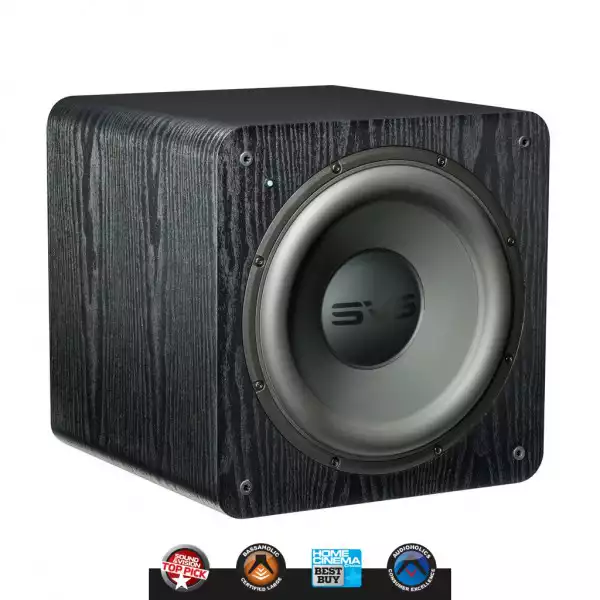

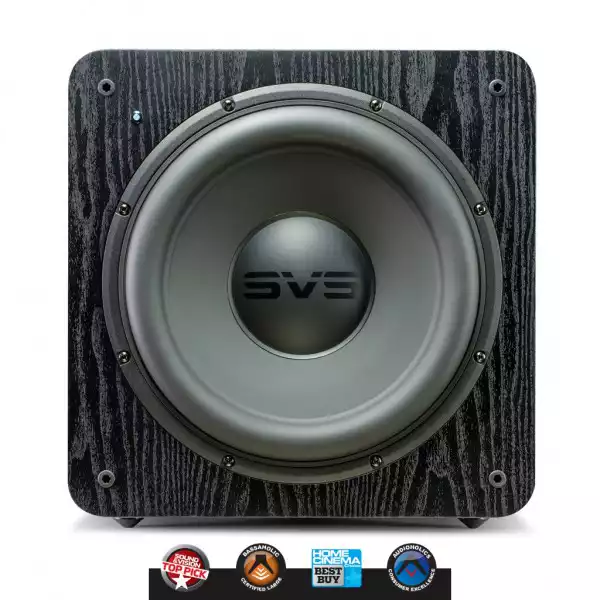

12" High Output Woofer: The front-firing 12" high output woofer of the SVS SB-2000 powered subwoofer pumps out deep and powerful bass with low distortion, for smooth and accurate performance on music and movies soundtracks. The woofer features a lightweight 12" aluminum cone for enhanced sensitivity and transient response, an upgraded suspension for improved linearity and control, plus a long-excursion rubber surround for durability and long-life. It also incorporates FEA-optimized motor technology for low distortion, heavy-duty 2" voice coil for extreme power handling, and an extended pole piece that improves heat sink and thermal management properties.

STA-500D Sledge Amplifier: The SB-2000 powered subwoofer employs a Sledge STA-500D amplifier with efficient and cool-running Class D topology. The amplifier is conservatively rated at 500 watts RMS and 1000 watts Peak. This amp features a highly advanced DSP processor offering unmatched control over the subwoofer at all volume levels, for distortion free bass.

MDF Sealed Enclosure: The SVS SB-2000 powered subwoofer features a rigid MDF (Medium Density Fiberboard) cabinet with screw-in rubber feet and a non-resonant steel mesh grille to resist unwanted distortion caused by vibration. The enclosure is an acoustic suspension (sealed) design for tight, accurate bass response. The cabinet is elegantly finished in a premium black ash wood-grain vinyl or gloss piano-black lacquer, and fits with practically any décor.

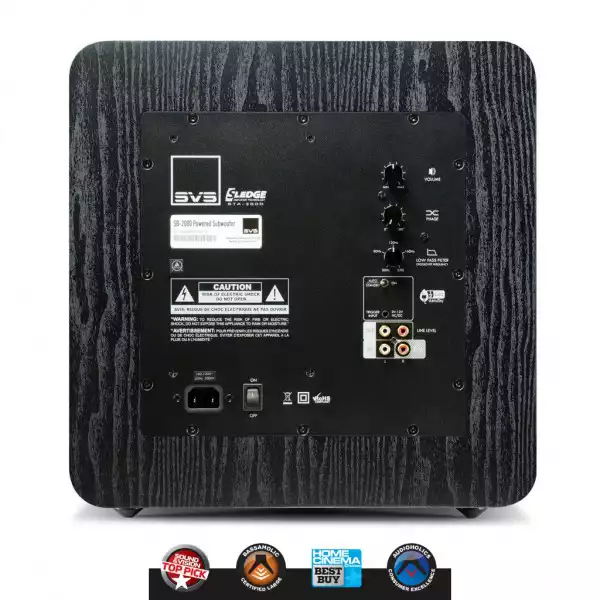

Variable Controls: The SB-2000 subwoofer has simple and straightforward control options that make integrating the subwoofer into your listening environment an easy task. The control knobs are actually digital actuators for precise and noise-free adjustment.

• Volume Control: The Volume Control (Min/Max) affects how loud the subwoofer plays. It should be adjusted to match the output level of your loudspeakers.

• Low Pass Crossover: This Low Pass Crossover affects the upper frequency limit of the powered sub. The control
  range is 50-160 Hz, along with a "LFE" (disabled) setting. The slope of the low pass crossover is 12 dB/octave. For connection to a home theater receiver, the low pass should be set to "LFE" (disabled). For stereo receiver, it should be adjusted to blend with the natural roll-off frequency of your loudspeakers.

• Phase Control: The Phase Control (0-180°) delays the signal being processed through the amplifier. It should be adjusted to obtain the most coherent and stable soundstage and transition between your loudspeakers and the powered subwoofer.

Inputs & Outputs: Comprehensive and flexible connectivity options allow for easy set-up and integration into your home theater or stereo system

• LFE/RCA Inputs: These unbalanced RCA inputs are used for line-level connection between your receiver and the powered sub. For a single mono connection to a home theater receiver, use the R/LFE input. For stereo receivers, use both the L/R inputs.

• RCA Outputs: These unbalanced RCA outputs are used in stereo applications to high pass the signal being sent to the loudspeaker amplifier. The line level outputs feature a fixed 80Hz, 12 dB/octave high-pass filter.

Placement Options: If possible, place the subwoofer near the front stage, for best blending with the front and center loudspeaker channels.

• Corner Placement: Corner placement will accommodate most rooms and will reduce the chances for encountering a null (an acoustic cancellation in the bass response) at the listening position. If your AV receiver equalizes the subwoofer channel during auto-set-up, corner placement will often provide the best overall performance.

• Other Placement Options: If corner placement sound excessively boomy, then try moving the subwoofer to other available locations along the front stage, listening for the best balance of output and a smooth accurate response. Always redo the auto-set-up of your AV receiver after moving the subwoofer to a different location to ensure the acoustic distance and calibration level are set correctly.

• Dual Subs: To maximize the bass output and impact of your home theater, two SB-2000s can be paired; one on either side of your room.

Auto/Standby & On Switch: If this switch is set to "Auto/Standby", it will automatically turn-on the powered subwoofer in the presence of an audio signal. If no signal is present for a period of several minutes, the powered subwoofer will enter "Standby" mode, where power consumption will be less than 0.5 watts. If this switch is set to "On", the amplifier will remain on continuously and will not enter "Standby" mode.

Power Status Light: The power status light is located on the front-panel of the powered subwoofer in the upper left corner. The light will illuminate blue when the amplifier is on. The light will illuminate red when the amplifier is in standby mode.

3V-12V Trigger Input: When in standby mode, the powered sub's trigger input (3.5mm) can be used to automatically turn on the powered subwoofer if a signal is sent to this input from another component in the system (like your AV receiver) that features a trigger output.
