TASCAM US 16X08

Šifra: 10275
295,44 EUR
*Cijena sa popustom može se ostvariti ukoliko se plaća gotovinom, virmanom (preko računa) ili debitnom i kreditnom karticom odmah i odjednom.
Prikazana cijena je za komad.

Garantiramo najnižu cijenu na tržištu!
U slučaju da pronađete isti proizvod po povoljnijoj cijeni,
molimo Vas da nas kontaktirate na:
info@player.hr

Prijavi povoljniju cijenu Obavijesti me ako cijena padne Postavi pitanje
Opcija:

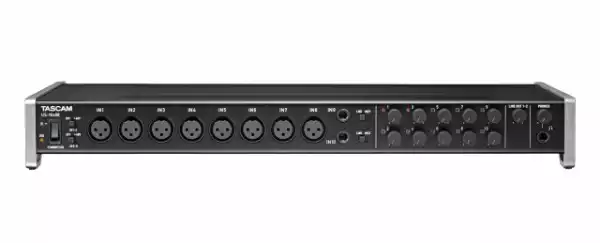

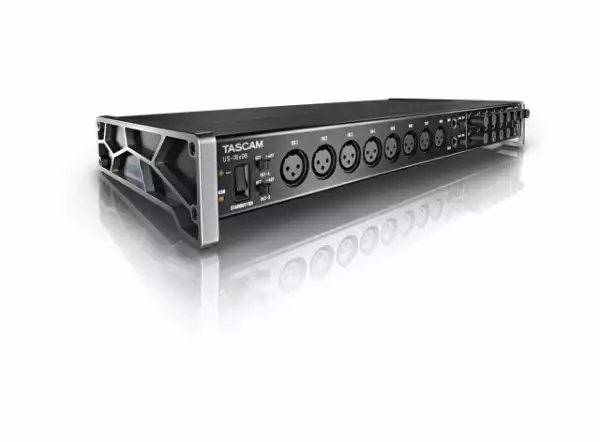

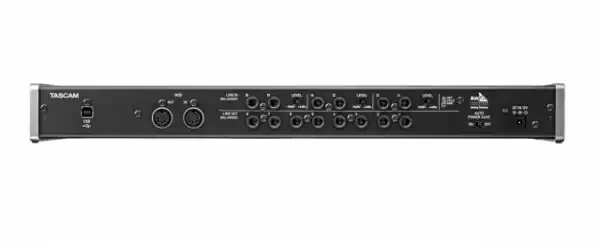

The TASCAM US-16x08 captures 16 mic and line inputs to your computer with clear sound quality and advanced features to manage big sessions. Eight Ultra-HDDA microphone preamps deliver the cleanest and quietest operation in their class while delivering up to 56dB of gain. An additional eight line inputs are provided, two of them switchable to instrument level for direct guitar or bass recording. Eight balanced line outputs are also available, two with a level control on the front panel for monitoring.
Built into the US-16x08 is a DSP Mixer for low-latency digital mixing. Each channel has four-band EQ and compression for polished-sounding monitor mixes. In addition to interface mode, the US-16x08 can be used stand alone as a standalone mic preamp. Mac and Windows drivers are provided, as well as USB Class Compliant 2.0 drivers for tablets like Apple's iPad. MIDI input and output are also available on the rear panel.

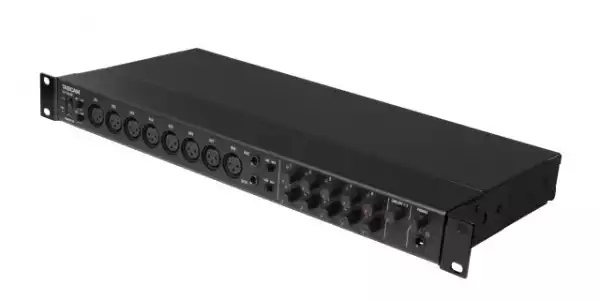

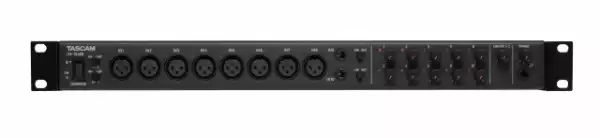

Whether using the ergonomically-designed angled desktop stand or mounting with the included rack ears, the US-16x08 includes analog I/O for almost any music recording application.

AKCIJA VAŽI ZA GOTOVINSKO PLAĆANJE!



US-16X08 SPECIFICATIONS

Sampling frequency 44.1k/48k/88.2k/96kHz
Quantization bit rate 16/24bit
Analog audio inputs
MIC IN(IN 1-8)
Connector XLR-3-31(1:GND, 2:HOT, 3:COLD), BALANCED
Input impedance 2.4k ohms
Nominal input level
GAIN:MAX -68dBu (0.0003Vrms)
GAIN:MIN -12dBu (0.195Vrms)
Maximum input level +8dBu (1.947Vrms)
Gain 56dB
INST IN (IN 9-10)
Connector 6.3mm(1/4") TS-jack(T:HOT, S:GND), UNBALANCED
(When set to "INST" at LINE/INST switch)
Input impedance 1M ohms or more
Nominal input level
GAIN:MAX -57dBV (0.0014Vrms)
GAIN:MIN -12dBV (0.251Vrms)
Maximum input level +8dBV (0.2512Vrms)
Gain 45dB
LINE IN (IN 9-10)
Connector 6.3mm(1/4") TRS-jack(T:HOT, R:COLD, S:GND), BALANCED
(When set to "LINE" at LINE/INST switch)
Input impedance 10k ohms
Nominal input level
GAIN:MAX -41dBu (0.0069Vrms)
GAIN:MIN +4dBu (1.228Vrms)
Maximum input level +24dBu (12.182Vrms)
Gain 45dB
LINE IN (IN 11-16)
Connector 6.3mm(1/4") TS-jack(T:HOT, S:GND), UNBALANCED
(When set to "-10dBV" at LEVEL switch)
Input impedance 10k ohms or more
Nominal input level -10dBV (0.3162Vrms)
Maximum input level +10dBV (3.162Vrms)
LINE IN (IN 11-16)
Connector 6.3mm(1/4") TRS-jack(T:HOT, R:COLD, S:GND), BALANCED
(When set to "+4dBu" at LEVEL switch)
Input impedance 10k ohms
Nominal input level +4dBu (1.228Vrms)
Maximum input level +24dBu (12.182Vrms)
Analog audio outputs
LINE OUT (LINE OUT 1-8)
Connector 6.3mm(1/4") TRS-jack(T:HOT, R:COLD, S:GND), BALANCED
Output impedance 100ohms
Nominal output level +4dBu (1.228Vrms)
Maximum output level +24dBu (12.177Vrms)
PHONES
Connector 6.3mm(1/4") stereo phone jack
Maximum output level 70mW+70mW or more (THD+N 0.1% or less, 32ohms loaded)
MIDI IN / OUT
Connector Din 5-pin
Format Standard MIDI format
USB
Connector USB B type 4-pin
Format USB2.0 HIGH SPEED mass storage class
Power Dedicated AC adapter (GPE248-120200-Z, included)
Power consumption 12W
Dimensions 52" W ×2.32" H ×8.62" D inch
445mm W ×59mm H ×219mm D

Weight 2.8kg / 6.11lb
Operating temperature 5 to 35˚C
Accessories Rack mount adapter, USB cable, User's manual, warranty card, dedicated AC adapter (GPE248-120200-Z)



Audio performance
Frequency response
LINE OUT(BALANCED)
44.1k/48k Hz 20Hz to 20kHz, +/-0.3dB(JEITA)
88.2k/96k Hz 20Hz to 40kHz, +/-0.3dB(JEITA)
THD 0.008% or less
S/N ratio 100dB or more
Crosstalk 100dB or more
EIN -125dBu or less



Computer system requirements
Windows
OS Windows 7(32-bit SP1, 64-bit SP1), Windows 8.0(32-bit, 64-bit), Windows 8.1(32-bit, 64-bit)

* For further information of the latest OS version, please click here.
Compatible computers Windows-compatible computer with a USB 2.0 port
CPU type/speed Dual core/2 GHz or faster
Memory 2GB or more
DRIVER ASIO2.0, WDM(MME)
Macintosh
OS OS X Mountain Lion(10.8), OS X Mavericks(10.9)

* For further information of the latest OS version, please click here.
Compatible computers Apple Macintosh computer with a USB 2.0 port
CPU type/speed Dual core/2 GHz or faster
Memory 2GB or more
DRIVER Core Audio, Core MIDI
