VESTAX TUB 1
Garantiramo najnižu cijenu na tržištu!
U slučaju da pronađete isti proizvod po povoljnijoj cijeni,
molimo Vas da nas kontaktirate na:
info@player.hr
VESTAX TUB1 USB AUDIO INTERFACE
Details
The Vestax TUB-1 USB Audio Interface fits the following DJ mixers:
• PMC-08Pro
• PMC-280
• VMC-002XLu
• VMC-004XLu
• VMC-004FXu
• PMC-05ProlllDX
Overview
VESTAX TUB1 USB AUDIO INTERFACE
Details
The Vestax TUB-1 USB Audio Interface fits the following DJ mixers:
• PMC-08Pro
• PMC-280
• VMC-002XLu
• VMC-004XLu
• VMC-004FXu
• PMC-05ProlllDX
NOTE: This product will use the standard driver found on your PC Operating System.
With the unit, you will be able to have sound data in/out via USB. (However be aware that some computers may not work with the TUB-1)

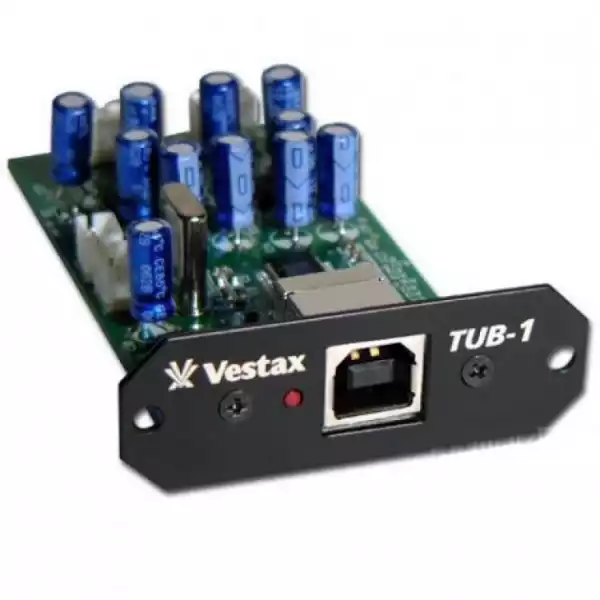

TUB-1 Board information
Located on the TUB-1, you can find 3 pin Audio terminals (J2/J3) as the drawing below.
The J2 Terminal is An analog line-in. J3 terminal is an Analog Output.
There is a red LED (2mm) display and USB Connector found on the TUB-1 Port
Main Specification
USB Version : USB 2 / (Drive Power supply = +5V DC )
Analog Audio Outputs (J3) : -10dBV (0.3v) / impedance = 100ohm
Analog Audio Inputs (J2) : -10dBV (0.3V) / impedance = 47kohm
