SPL DMC
Garantiramo najnižu cijenu na tržištu!
U slučaju da pronađete isti proizvod po povoljnijoj cijeni,
molimo Vas da nas kontaktirate na:
info@player.hr

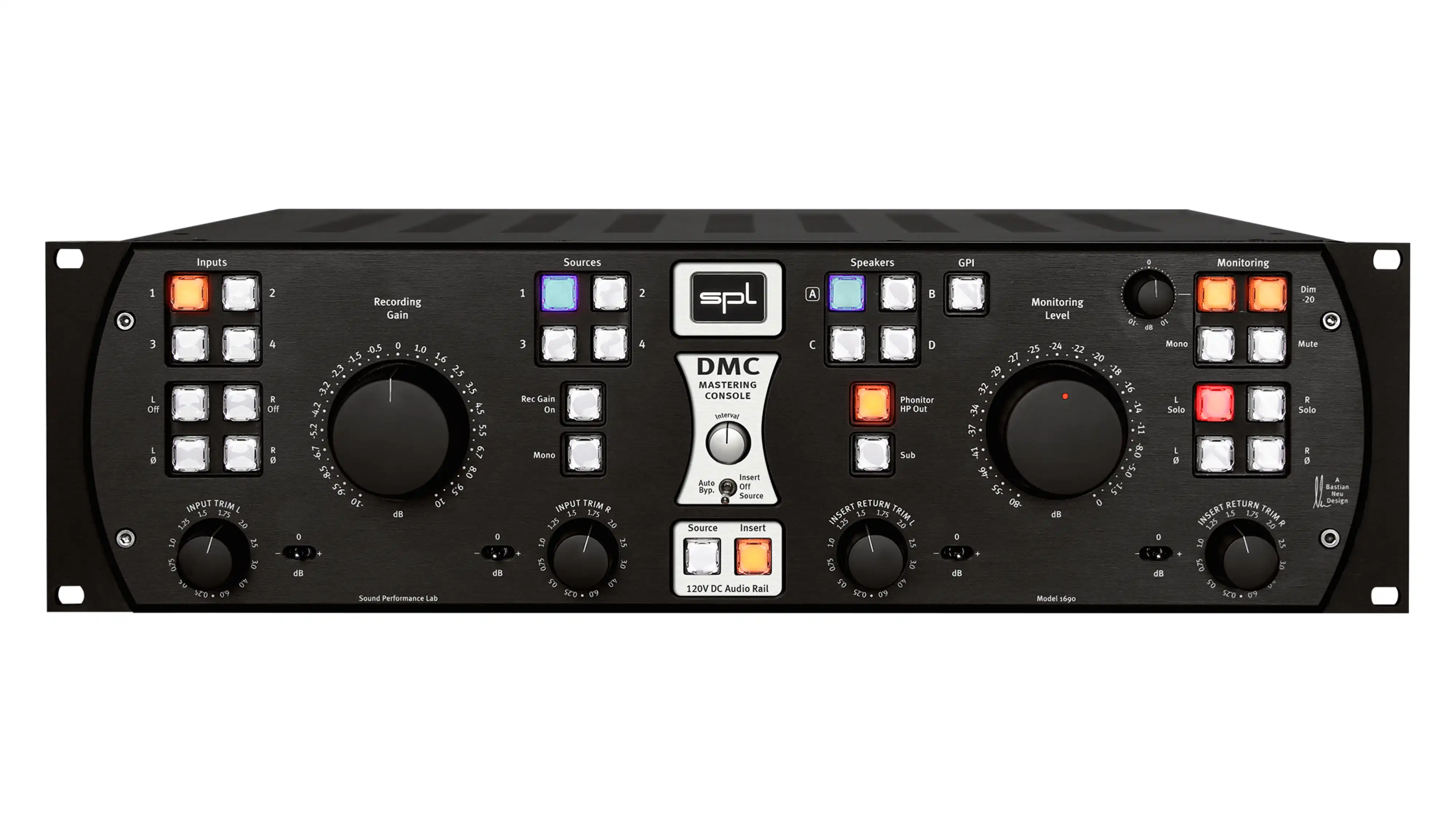

Mastering Console
The DMC is the heart of the mastering studio. The converters, the players, the DAW, the recorders and the speakers are connected to it. The audio quality of the console is therefore crucial. Like all devices of the mastering series, the DMC works on the unparalleled 120V technology.
Analog inputs & output; XLR (balanced) Maximum input & output gain: 32.5 dB Input impedance: 20 kΩ Output impedance: 75 Ω Common mode rejection: -82 dBu Frequency range (-3 dB): 4 Hz to 300 kHz Noise (A-weighted, +24 dBu, Rec Out, Insert On): -101.6 dBu Noise (A-weighted, +24 dBu, Speaker Out): -103.9 dBu THD & N (+24 dBu, Rec Out, Insert On): > 112 dB THD & N (+24 dBu, Speaker Out): > 108 dB
Internal Linear Power Supply with Shielded Toroidal Transformer Operating voltage for analog audio: +/- 60 V Operating voltage for relays and LEDs: + 12 V
Mains Power Supply Mains voltage (selectable, see fuse chamber): 230 V AC / 50; 115 V AC / 60 Hz Fuse for 230 V: T 1 A Fuse for 115 V: T 2 A Power consumption: max. 40 VA
Dimensions & Weight W x H x D (width x height x depth): 482 x 132 x 300 mm Unit weight: 10.2 kg Shipping weight (incl. packaging): 12.35 kg
