SPL MixDream
Garantiramo najnižu cijenu na tržištu!
U slučaju da pronađete isti proizvod po povoljnijoj cijeni,
molimo Vas da nas kontaktirate na:
info@player.hr

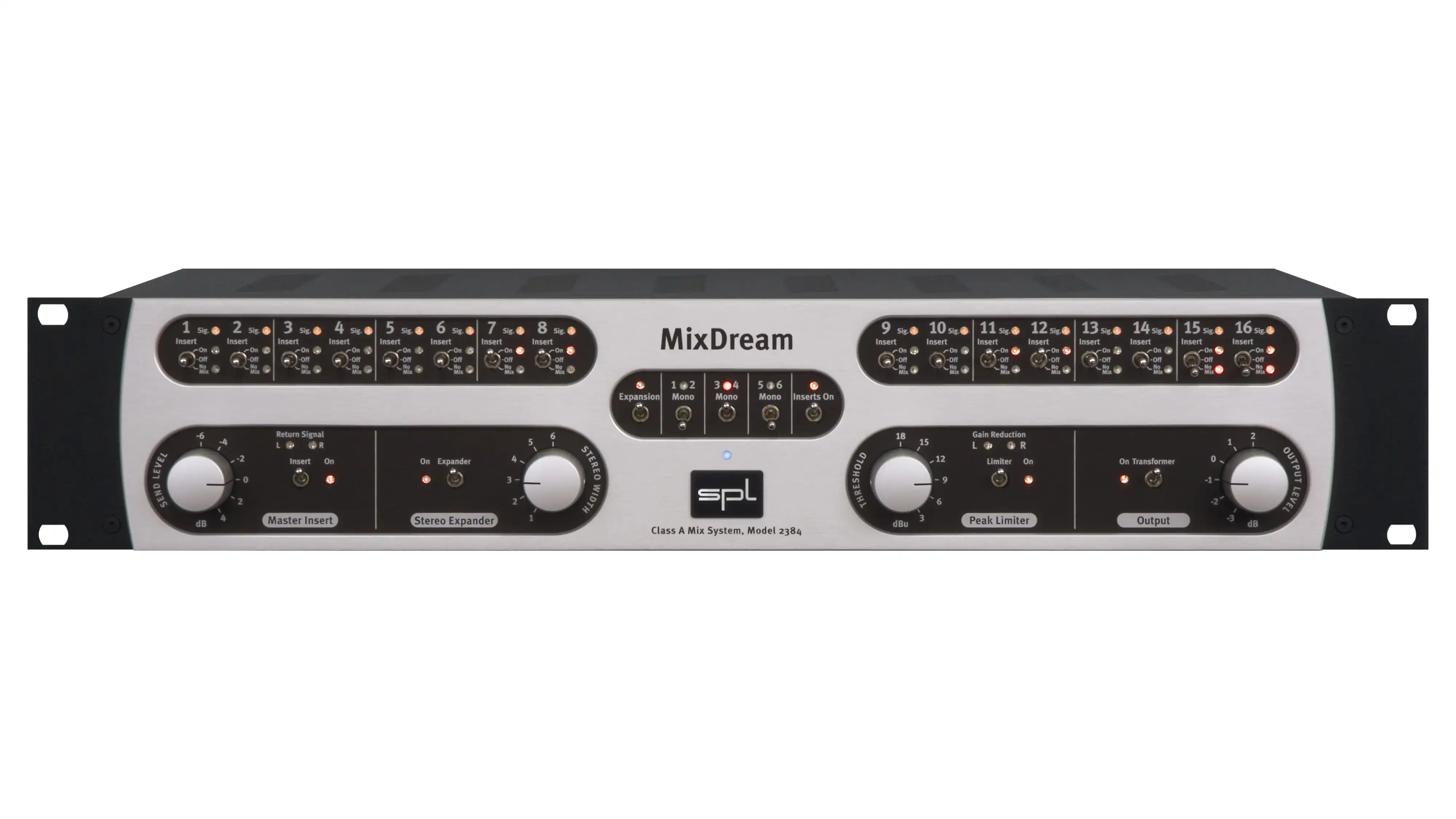

Class-A Summing Mixer
The MixDream is a cascadable 16-in-2 summing device that adds Class-A stereo summing, extensive analog insert functionality, stereo expander, limiter and switchable transformers to any DAW.

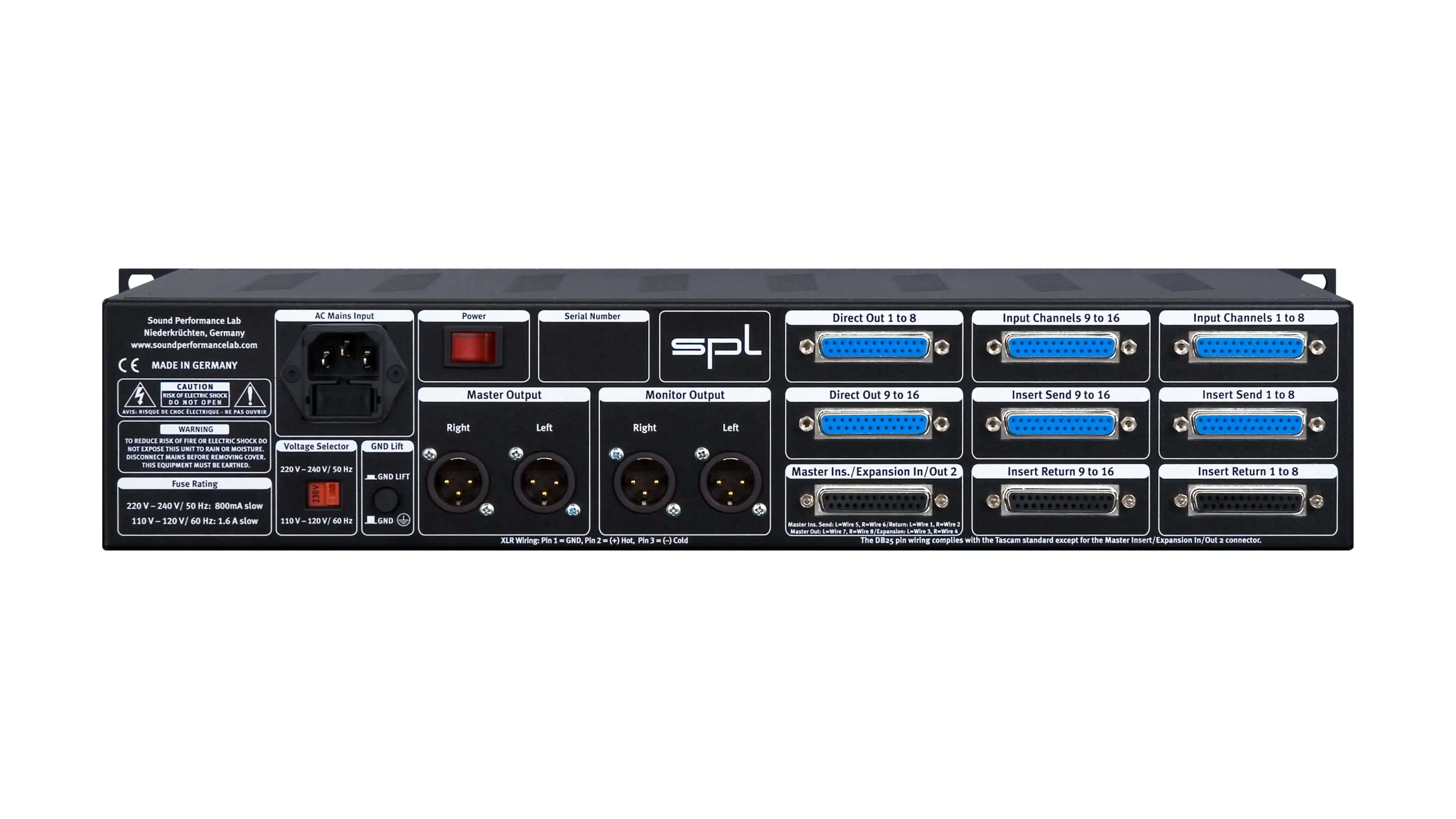

Analog inputs & output; XLR & DB25 (balanced) Maximum input & output gain: 28 dBu Input impedance: 10 kΩ Output impedance (Master & Monitor w/o transformer, Insert Sends): 82 Ω Output impedance (Master & Monitor w/ transformer): 65 Ω Frequency range (-3 dB): 1 Hz – 220 kHz THD + N (A-weighted, +10 dBu, all channels active): -104 dBu Noise (A-weighted, all channels active): -97 dBu Common mode rejection (1 kHz): 70 dB Dynamic range: 125 dB
Internal Linear Power Supply with Shielded Toroidal Transformer Operating voltage for analog audio: +/- 30 V Operating voltage for relays and LEDs: +12 V
Mains Power Supply Mains voltage 230 V: 230 V AC / 50; 115 V AC / 60 Hz Fuse for 230 V: T 800 mA Fuse for 115 V: T 1.6 A Power consumption: max. 75 W
Dimensions & Weight W x H x D (width x height x depth): 482 x 88 x 230 mm Unit weight: 6.6 kg Shipping weight (incl. packaging): 8.05 kg
