SPL SMC 5.1
Garantiramo najnižu cijenu na tržištu!
U slučaju da pronađete isti proizvod po povoljnijoj cijeni,
molimo Vas da nas kontaktirate na:
info@player.hr

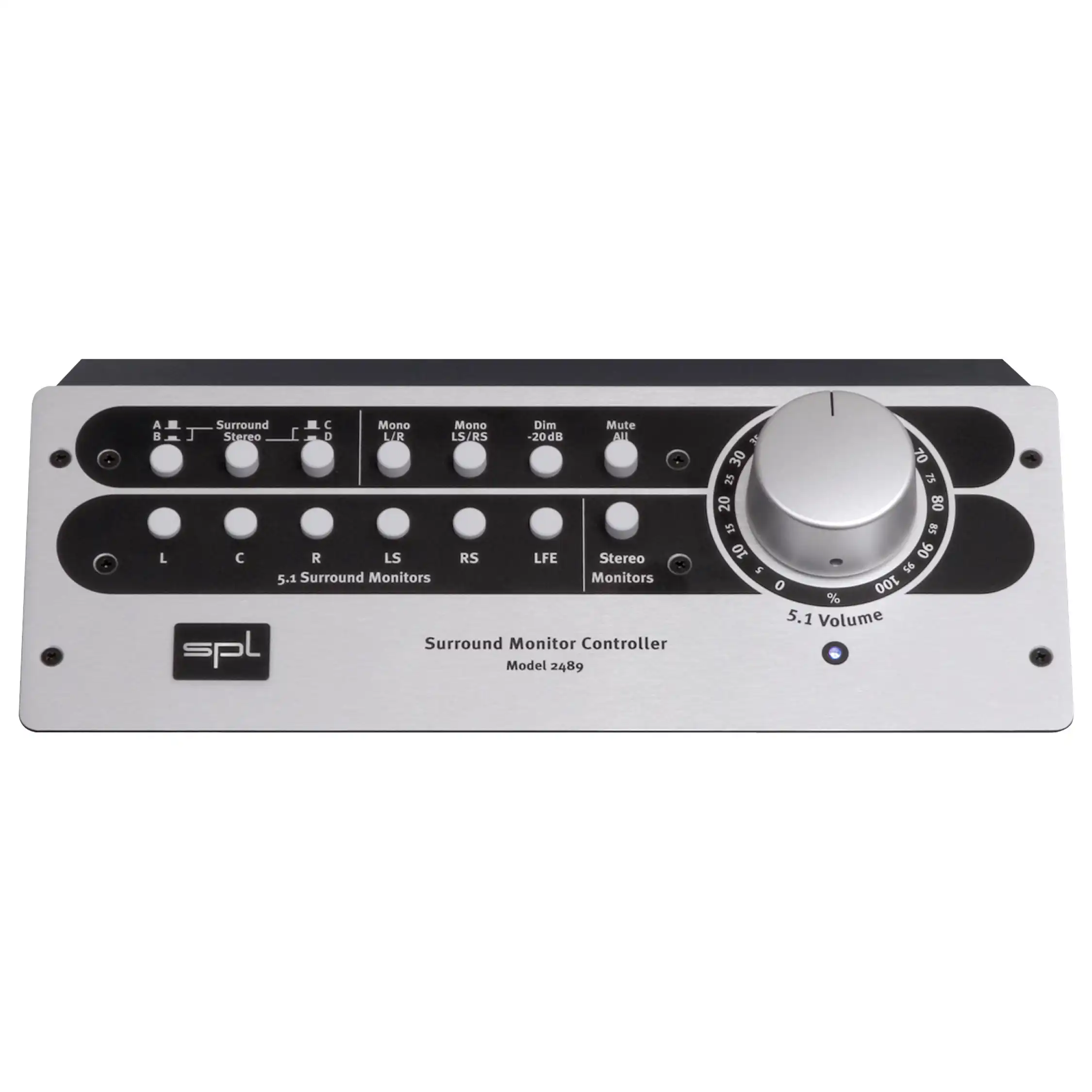

Surround Monitor Controller
The SMC is the industry standard for 5.1 surround monitoring. It combines analog 6-channel volume control with speaker management for 5.1 surround and stereo sources.

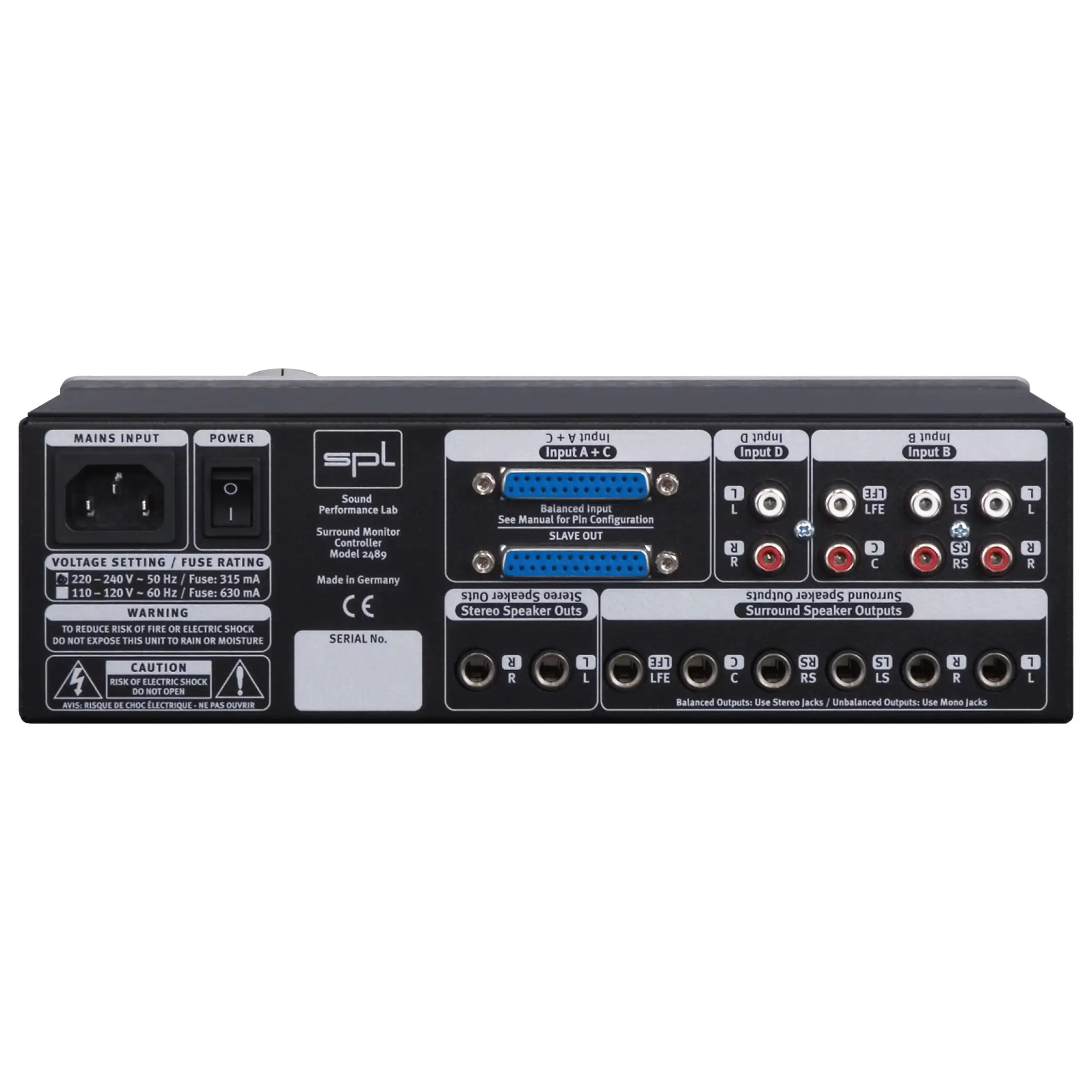

Analog inputs & outputs; DB25 & TRS Jack (balanced), RCA Maximum input gain: 21 dBu Input impedance (DB25 & Jack): 50 kΩ Input impedance (RCA): 10 kΩ Output impedance (Jack): 100 kΩ Frequency range (-3 dB): 10 Hz – 100 kHz THD +N (10 Hz – 22 kHz, 18 dBu): 0.002 % Noise (A-weighted): -98 dBu Common mode rejection (1 kHz): 70 dBu Dynamic range: 119 dB
Internal Linear Power Supply with Toroidal Transformer Operating voltage for analog audio: +/- 15 V Operating voltage for relays and LEDs: +12 V
Mains Power Supply Mains voltage (factory set): 230 V AC / 50 or 115 V AC / 60 Hz Fuse for 230 V: T 315 mA Mains voltage (selectable): 115 V AC / 60 Hz Fuse for 115 V: T 630 mA Power consumption: max. 10 W
Dimensions & Weight W x H x D (width x height x depth): 272 x 91 x 220 mm Unit weight: 2.3 kg Shipping weight (incl. packaging): 3.25 kg
