FOSTEX PC100USB-HR2 - monitor kontroler
Garantiramo najnižu cijenu na tržištu!
U slučaju da pronađete isti proizvod po povoljnijoj cijeni,
molimo Vas da nas kontaktirate na:
info@player.hr
The PC100USB-HR has undergone a model change. The PC100USB-HR shares the same design as the PC100d-HR with optical digital input and the PC200USB-HR with built-in amplifier in the “PC Hi-Reso” series. The new PC200USB-HR shares the same design as the PC100d-HR with optical digital input and the PC200USB-HR with built-in amplifier in the “PC Hi-Reso” series. It is a gadget that you want to always have by your side without getting in the way on your desktop.
Basic functions are the same as those of PC100USB-HR.
PC100USB-HR is a 24bit/96kHz Hi-Resolution compatible version of PC100USB, which has become a standard PC gadget with convenient volume control at your fingertips. The PC100USB-HR is a 24bit/96kHz high-resolution version of the PC100USB, which is a standard PC gadget with convenient volume control at the user’s fingertips.

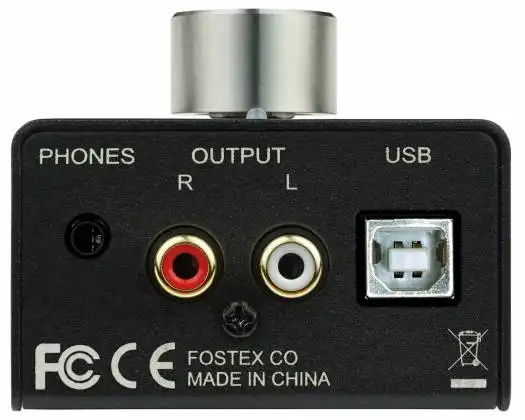

It is equipped with a DAC, RCA pin jacks (output) for connection to active speakers such as the PM series, and a PHONES jack for connecting headphones. It can also be used as a headphone amplifier.
When headphones or other devices are connected to the PHONES jack, they are not output to the RCA pin jacks (output).
USB bus-powered operation eliminates the need for a separate power source. It is also a simple high-resolution device that operates with Windows and Mac OS standard USB audio drivers (compatible OS: Windows 7 or higher, Mac OS X V10.6 to macOS10.12Sierra).
Depending on the OS and playback software used, it may be necessary to select (switch) the device as a playback device in the settings, etc.
*Cannot be used with playback software that uses a dedicated driver other than the OS standard USB Audio driver.
Includes one USB 2.0 cable (AB type/1m) and two RCA pin cables (1m). ●One USB 2.0 cable (AB type/1m) and two RCA pin cables (1m) are included for immediate use by connecting to a PC or active speakers without the need to purchase additional cables.
| connection terminal | |
|---|---|
| [USB] terminal |
Connector: USB connector B |
| Supported sampling frequency |
32, 44.1, 48, 88.2, 96 (kHz) |
| Quantization bit rate |
16/24bit |
| Supported OS |
Windows 7 or higher, Mac OS X V10.6 to macOS10.12Sierra |
| [OUTPUT (L, R)] pin |
Connector: RCA pin jacks Applicable load impedance: 10k Ω or more Rated output level: +6dBV (0dBFS) |
| [PHONES] jack |
Connector: 3.5mm stereo mini jack Applicable load impedance: 32 Ω or more Maximum output: 30mW + 30mW (32 Ω load, THD: 0.5% or less) |
| general | |
| External Dimensions |
66(W)×44(H)×70(D)mm (excluding feet) |
| Weight |
Approx. 210g |
| Power supply |
USB bus power (5V, 500mA) |
| Accessories |
USB2.0 cable (AB type/1m) x 1, RCA pin cable (1m) x 2 |
