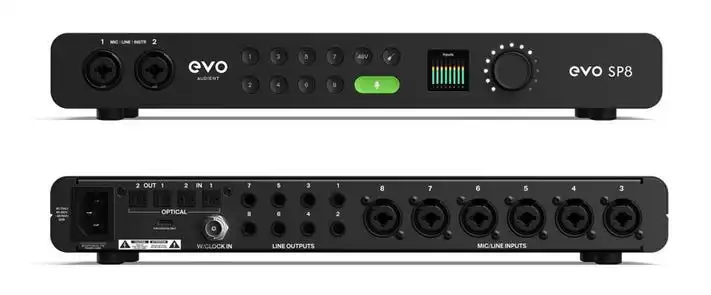

Vrhunsko studijsko pretpojačalo je ovdje! EVO SP8 dizajnirano je kako bi bilo savršen partner za proširenje vašeg postojećeg audio sučelja. Priuštite svom studiju izvedbu i pojačanje koje mu je potrebno, pružajući osam inteligentnih EVO pretpojačala koja postavljaju vlastite razine uz pomoć Smartgain funkcije te naprednom AD/DA konverter tehnologijom i raznolikim rasponom I/O povezivanja. Nadodajte tome još dva JFET instrumentalna ulaza, potpuno novi revolucionarni kontrolni sustav Motion UI i iznimne audio performanse. EVO SP8 bi mogao biti najpametnije mikrofonsko pretpojačalo na svijetu.
Microphone Preamplifier
| Mic Gain Range: | 58dB |
| Line Gain Range: | 58dB (-10dB pad) |
| Phantom Power: | 48v +/-4v @ 10mA/Channel |
| Mic EIN: | <-127.5dB |
| CMRR: | >80dB @ 1kHz |
| Maximum Input Level: | +16dBu |
| Input Impedance (Mic): | >3kΩ Balanced |
| Input Impedance (Line): | >10kΩ Balanced |
| Frequency Response: | +/-0.5dB 10Hz to 40kHz |
| Crosstalk: | <-105dBu @ 1kHz <-103 @ 10kHz |
| THD+N @ 0dBu (1kHz): | <0.0015% |
| SNR: | 100dB |
| XLR: | Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield) |
| 1/4” Jack: | TIP (Hot), RING (Cold) & SLEEVE (Shield) |
D.I Inputs
| D.I Gain Range: | 58 dB |
| Maximum Input Level: | +10dBu |
| Input Impedance: | 500k |
| Frequency Response | +/-0.5dB 10Hz to 20kHz |
| THD+N @ 0dBu (1kHz): | <0.1% |
| SNR: | 100dB |
| 1/4” Jack: | TIP (Hot) & SLEEVE (Shield) |
ADC
| Digital Reference Level: | 0dBFS = +10.5dBu |
| Frequency Response: | +/-0.5dB 10Hz to Fs/2 |
| Crosstalk: | -125dBu @ 1kHz & 10kHz |
| THD+N @ -1dBFS (1kHz): | <0.001% |
| Dynamic Range: | 112.5dB A-Weighted |
Line Outputs
| Maximum Output Level: | 12dBu |
| Digital Reference Level: | 0dBFS = +12dBu |
| Output Impedance: | <50Ω |
| Frequency Response: | +/-0.5dB 10Hz to Fs/2 |
| Crosstalk: | <-110dBu @ 1kHz |
| THD+N @ -1dBFS (1kHz): | <0.006% |
| Dynamic Range: | >117dB A-weighted |
| 1/4” Jack: | TIP (Hot), RING (Cold) & SLEEVE (Shield) |
Dimensions
| Unit: | 355mm (w) x 255mm (d) x 53mm (h) |
