SPL Elector Black - pretpojačalo
Garantiramo najnižu cijenu na tržištu!
U slučaju da pronađete isti proizvod po povoljnijoj cijeni,
molimo Vas da nas kontaktirate na:
info@player.hr
The analog purist

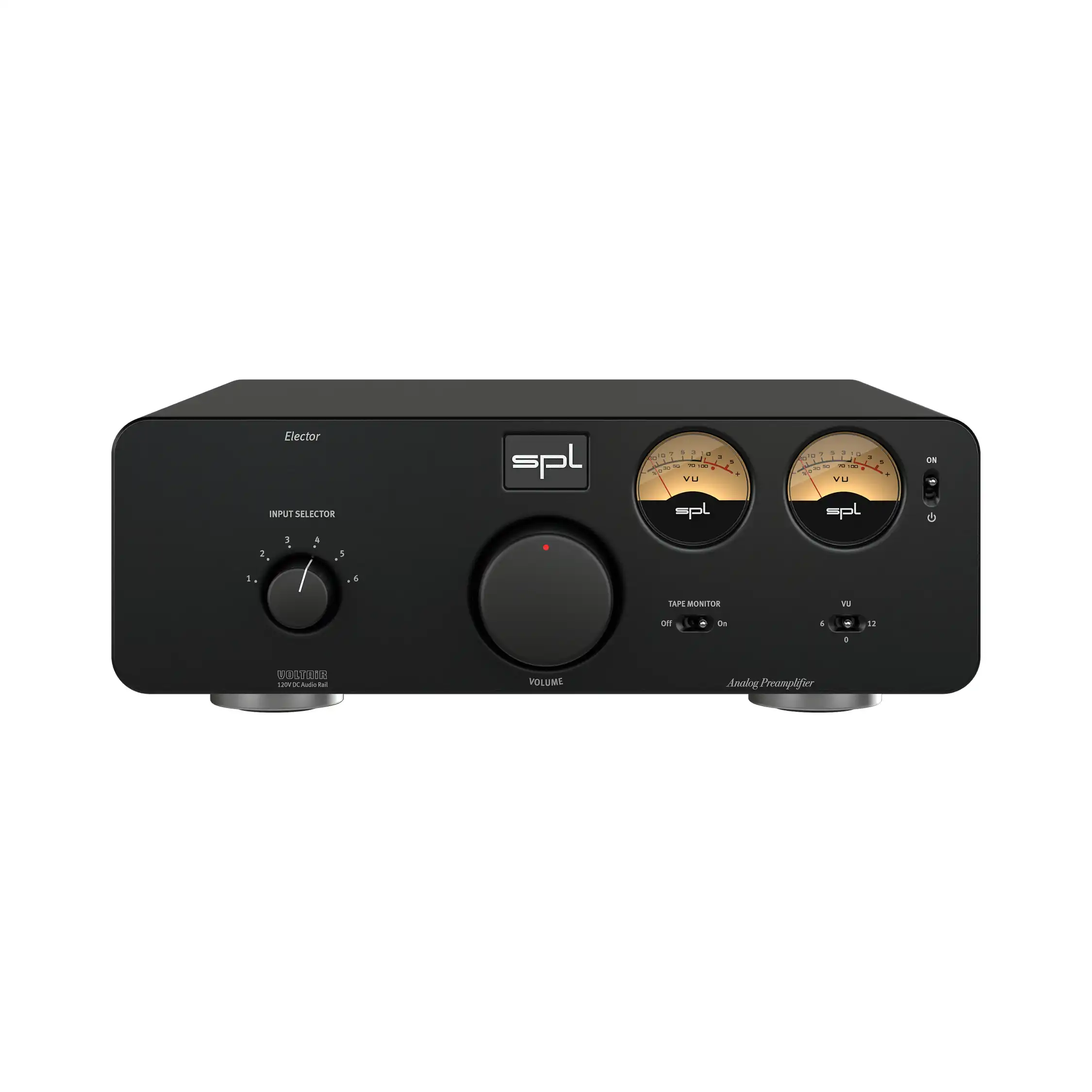

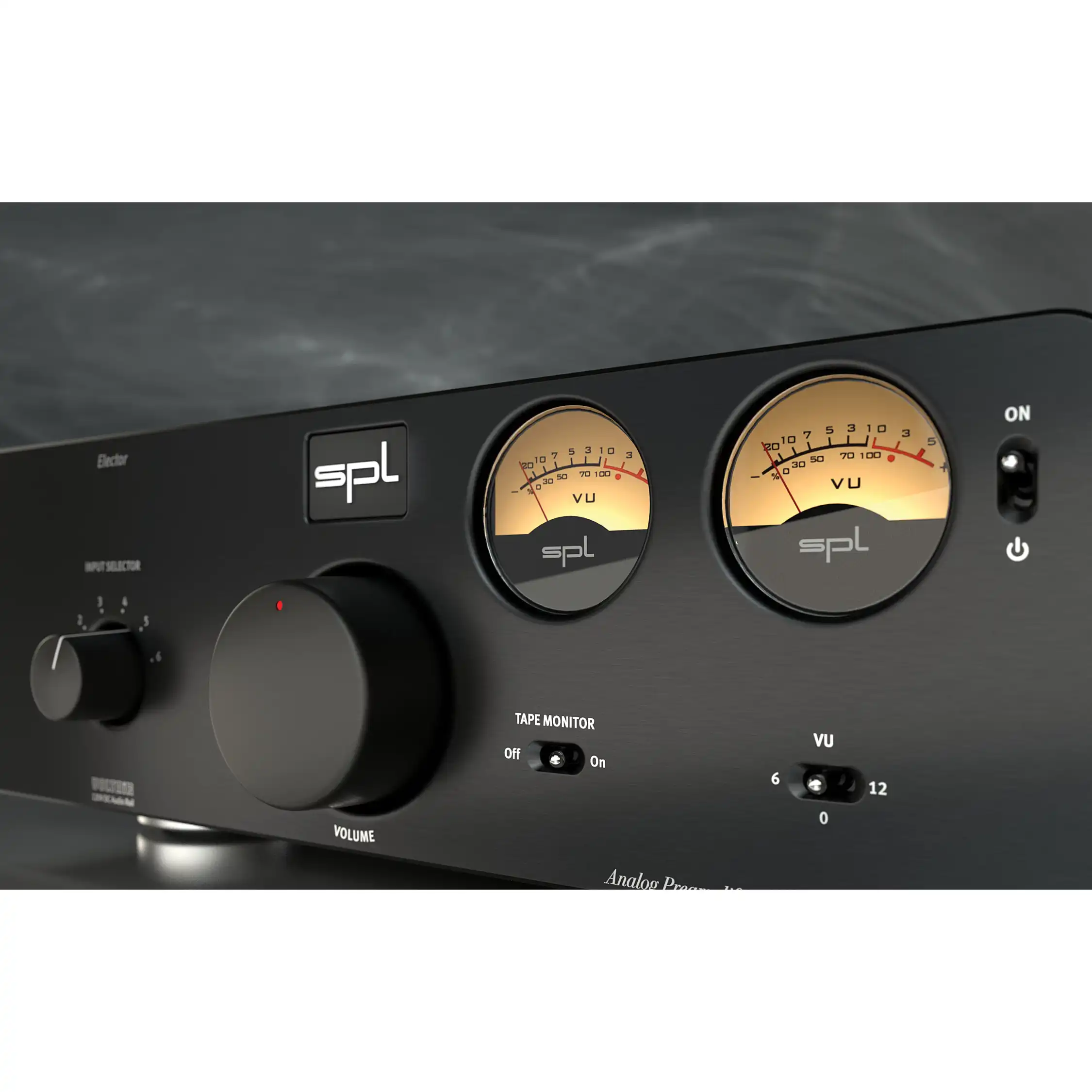

The Elector is the perfect preamplifier for the lover of pure analog technology. With motorized, remote volume control, tape monitor path, retro-look-VU-meter and the all superior VOLTAiR technology the Elector brings analog sources to new life.
Specifications

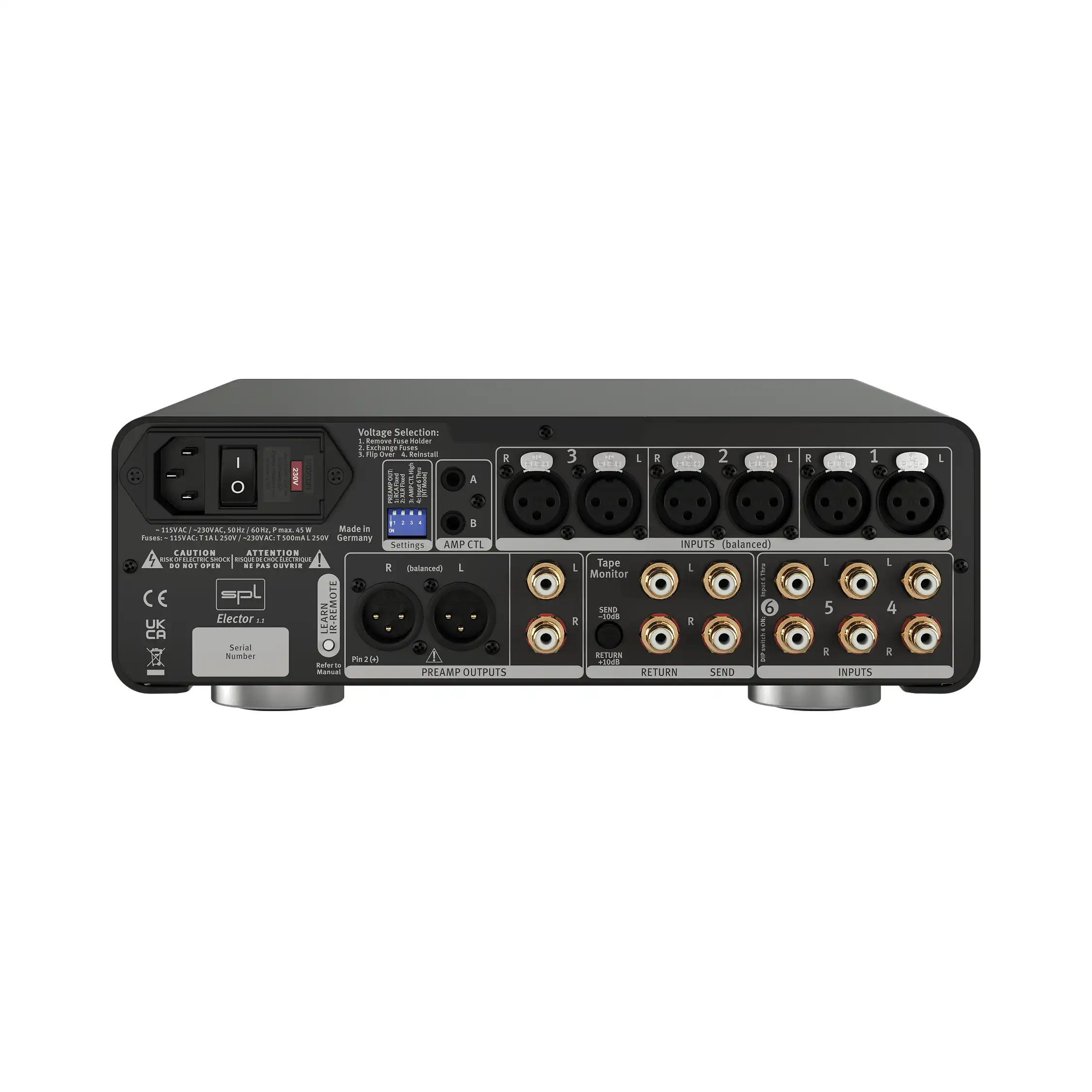

Analog Inputs & Output; XLR (balanced) and RCA
Maximum input & output gain: 32.5 dBu
Input impedance (RCA): 47 kΩ
Input impedance (XLR): 20 kΩ
Output impedance: 75 Ω
Common mode rejection ratio (XLR): -75 dBu
Frequency range (0 dBu): 10 Hz – 100 kHz
Crosstalk (0 dBu, 1 kHz): -112 dBu
THD + N (0 dBu, 1 kHz): 0.00179 %
Noise (A-weighted): -99 dBu
Dynamic range: 132.5 dB
Internal Linear Power Supply with Shielded Toroidal Transformer
Operating voltage for analog audio: +/- 60 V
Operating voltage for relays and LEDs: + 12 V
Mains Power Supply
Mains voltage (selectable, see fuse chamber): 230 V AC / 50; 115 V AC / 60 Hz
Fuse for 230 V: T 0.5 A
Fuse for 115 V: T 1 A
Power consumption: max. 40 VA
Stand-by power consumption: < 0.3 W
Dimensions & Weight
W x H x D (width x height incl. feet x depth): 278 x 100 x 300 mm (11 x 4 x 11.81 inch)
Unit weight: 4.25 kg (9.37 lbs)
Shipping weight (incl. packaging): 5.4 kg (11.9 lbs)
