16+16 channel AD/DA converter and MADI interface
Madison offers what hardly any other manufacturer in this price segment has to offer: 16 AD/DA converters. With SmartMADI and the Madicon this becomes an expandable multi-channel studio interface of the first order.
Specifications

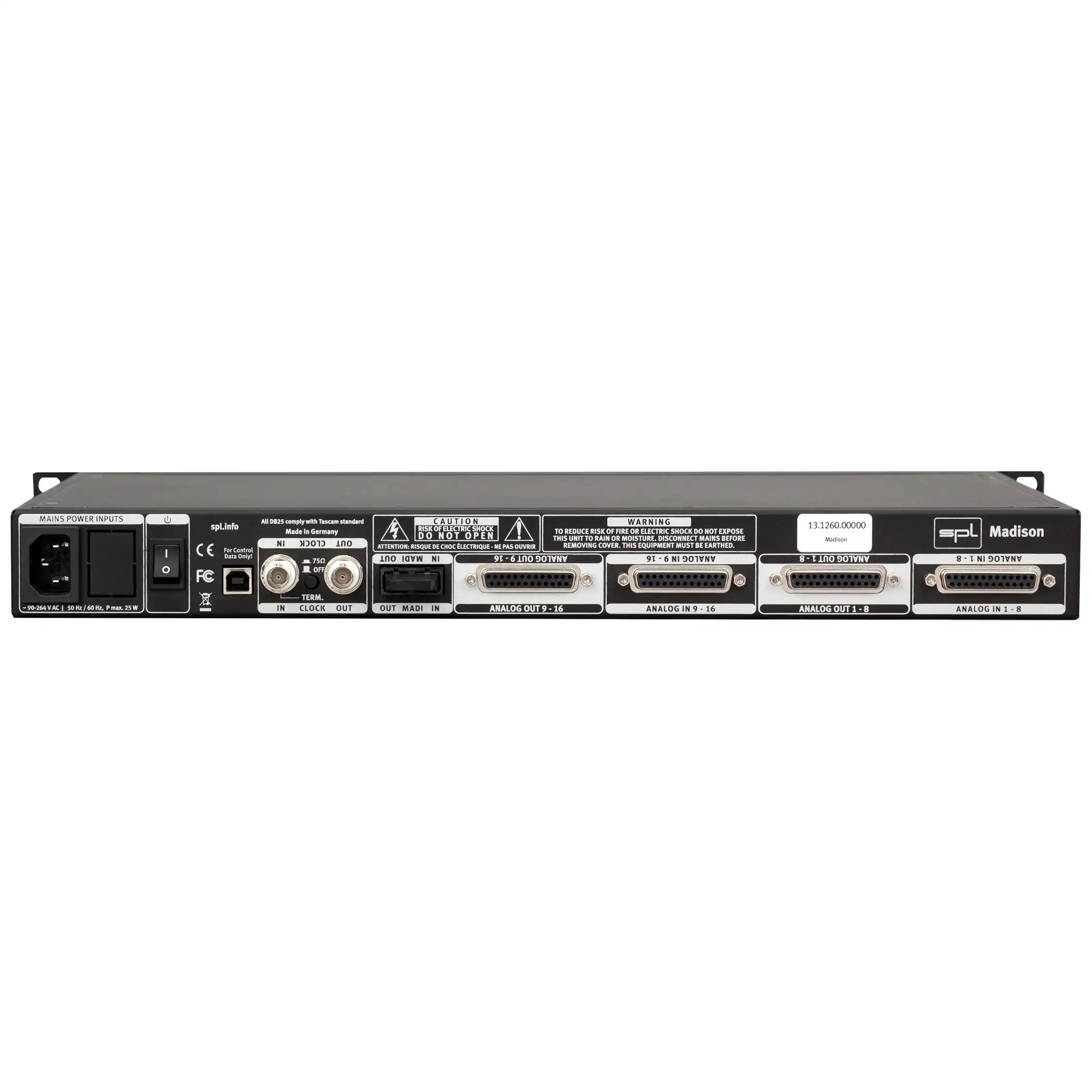

Analoge Input & Outputs; DB25 (balanced)
Maximum input & output gain: 24 dBu
Input impedance: 20 kΩ
Output impedance: 75 Ω
Common mode rejection (1 kHz): 82 dB
Crosstalk (1 kHz, 48 kHz SR): -110 dB
Dynamic Range (A-weighted, 48 kHz SR): 115 dB
Digital I/O; MADI-Port
MADI optical, Type SC: 44.1/48/88.2/96/176.4/192 kHz
Varispeed: ±12.5% in 56 CH mode, -12.5% in 64 CH mode
Reference Levels: 15dBu, 18dBu, 22dBu, 24 dBu
Wordclock input, BNC, terminated impedance: 75 Ω
Wordclock Level (Input TTL/CMOS5/CMOS3): 3.3 V
S/N (A-bewertet, 48kHz SR): -115 dBFS
S/(N+D) (-1 dBfs, 48kHz SR): -102 dBFS
Passband response (-0.02dB, 48kHz SR): 22 kHz
Passband Ripple (Decimation-LPF, 48kHz SR): +/- 0.005 dB
Stopband Attenuation (Decimation-LPF, 48kHz SR): 100 dB
Crosstalk (1 kHz, 48kHz SR): -110 dBu
Mains Power Supply
Operating voltage for analog audio: +/- 17 V
Operating voltage for digital audio: +12 V, +5 V
BTU (British Thermal Units, typical): 65 BTU/h
BTU (British Thermal Units, max): 110 BTU/h
Mains voltage: 90 – 264 V AC, 50/60 Hz Hz
Power consumption: max. 35 W
Dimensions & Weight
W x H x D (width x height x depth): 482 x 44 x 260 mm (19 x 1.73 x 10.24 inch)
Unit weight: 3.05 kg (6.72 lbs)
Shipping weight (incl. packaging): 5 kg (11.02 lbs)
