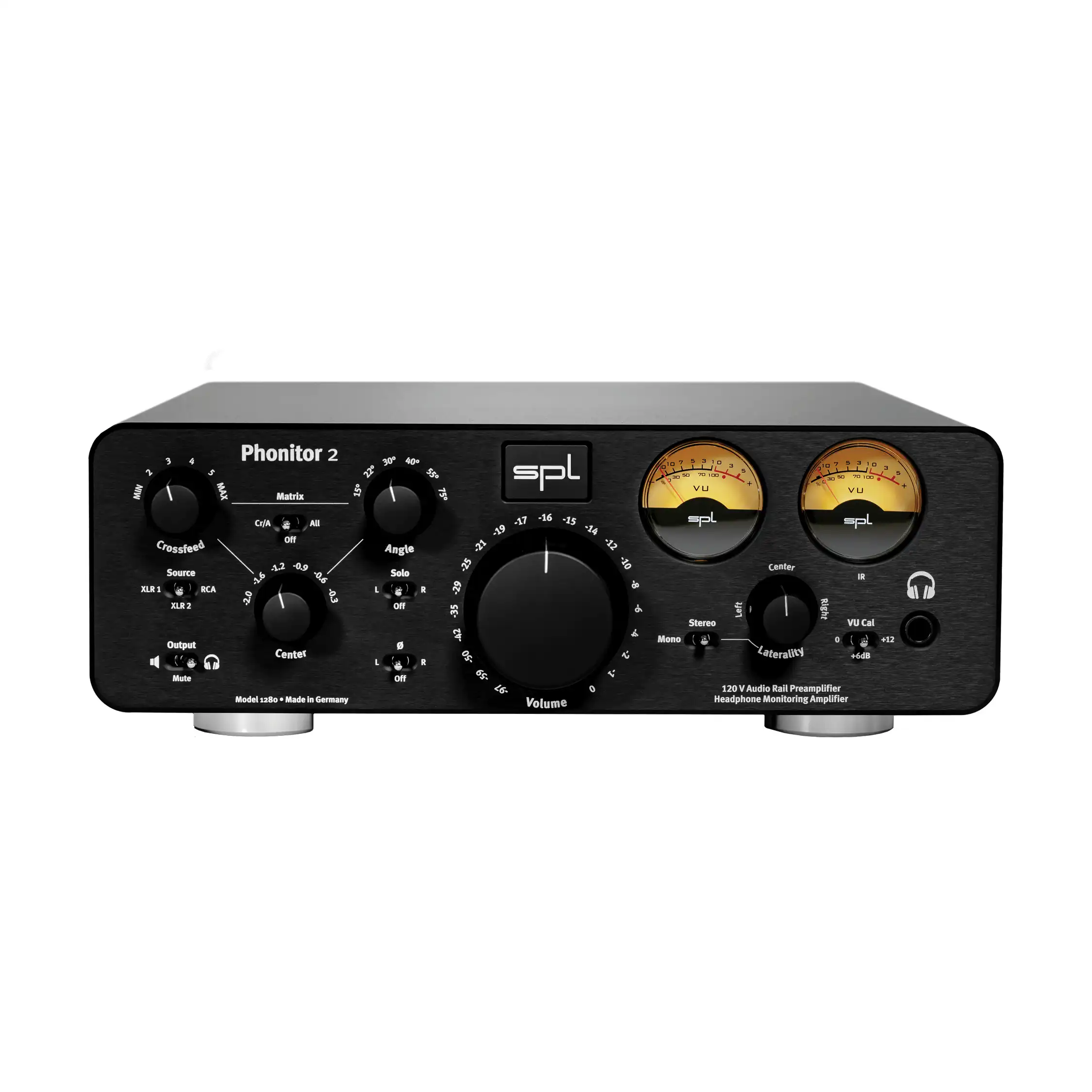

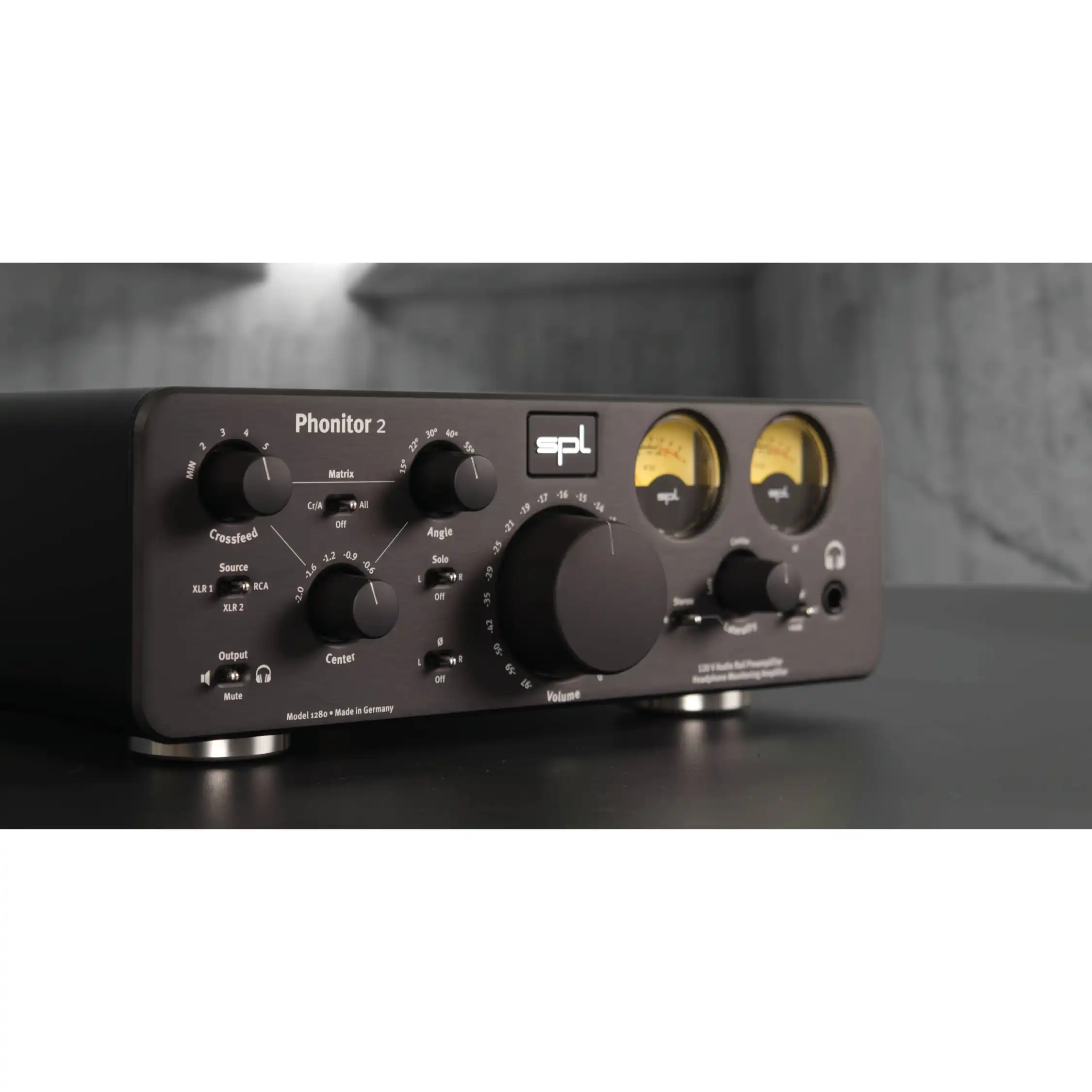

SPL Phonitor 2 Black - pojačalo za slušalice
Aktualna cijena vrijedi za gotovinsko, virmansko ili jednokratno kartično plaćanje. Za obročno kartično plaćanje primjenjuje se navedena cijena za obročno plaćanje.
JAMSTVO NAJNIŽE CIJENE
Pronašli ste isti proizvod po nižoj cijeni? Kontaktirajte nas.
Ako pronađete isti proizvod, u istoj konfiguraciji i pod usporedivim uvjetima kupnje, po nižoj javno dostupnoj cijeni kod drugog trgovca u Republici Hrvatskoj, javite nam se prije kupnje.
Nakon provjere ponude, nastojat ćemo vam ponuditi povoljniju cijenu.
info@player.hr
The headphone amplifier and monitoring controller with 120V technology
Phonitor 2 is the ultimate headphone amplifier and monitoring controller with 120V technology for demanding sound and mastering engineers. The Phonitor Matrix enables mixing and mastering on headphones in the highest quality – just like on loudspeakers.
Specifications

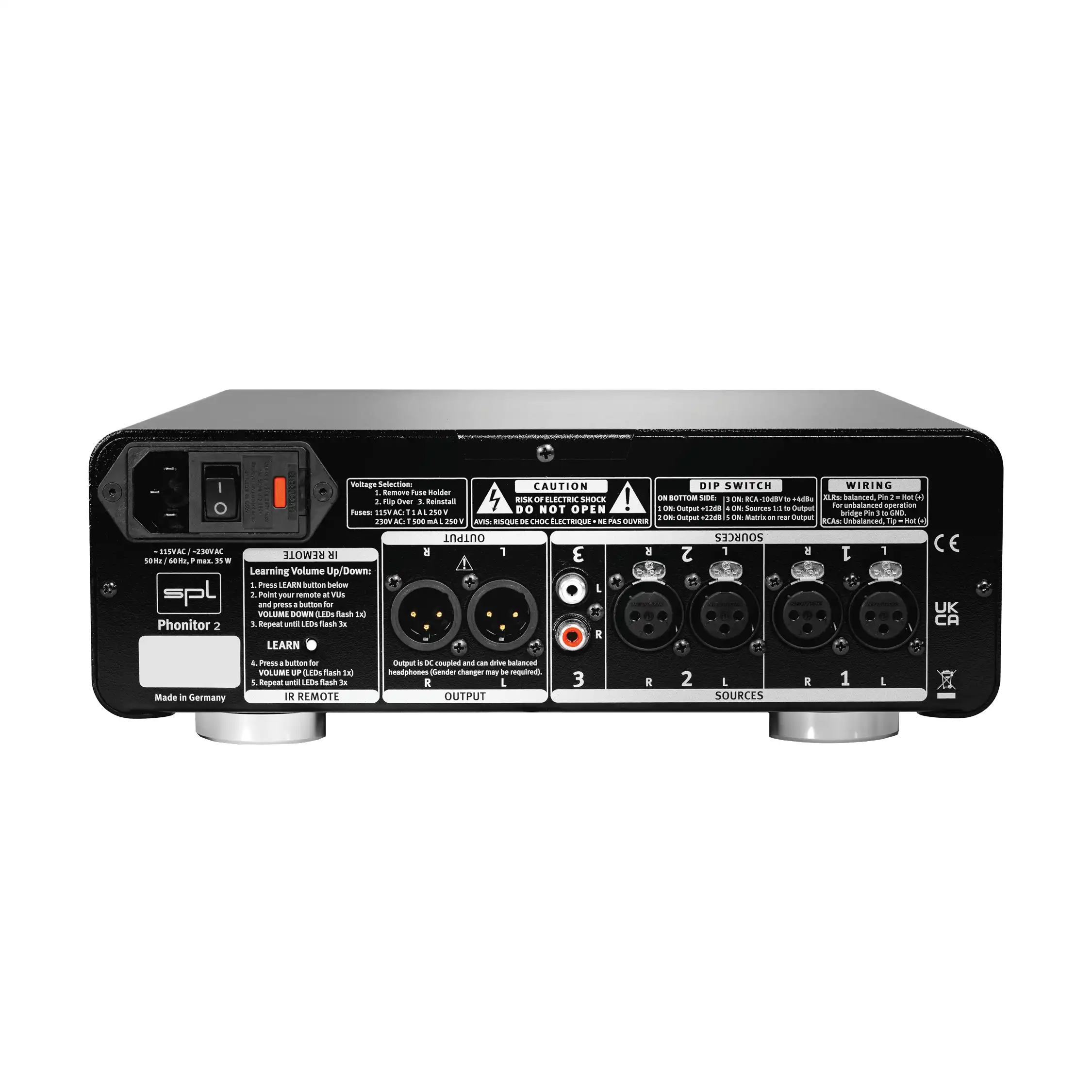

Analog inputs & outputs; XLR (balanced), RCA
Maximum input & output gain: 32.5 dBu
Input impedance (RCA): 10 kΩ
Input impedance (XLR): 20 kΩ
Output impedance (XLR): 75 Ω
Common mode rejection (XLR): -82 dB
Frequency range (-3 dB): 4 Hz – 300 kHz
THD +N (10 Hz – 22 kHz, 0 dBu): 0,00085 %
Noise (A-weighted): -103,8 dBu
Crosstalk (1 kHz): -106 dB
Dynamic range: 136,3 dB
Standard Headphones Output, 6.35 mm (1/4") TRS Jack
Wiring: Tip = Left, Ring = Right, Sleeve = GND
Source impedance: 0.18 Ω
Damping factor (40 ohms): 180
Frequency range (-3dB): 10 Hz – 300 kHz
Crosstalk (1 kHz): -90 dB
THD +N (10 Hz – 22 kHz, 0 dBu): 0.00091 %
Noise (A-weighted): -103 dBu
Output power (1 kHz, 1% THD, 600 Ω): 2 x 2.7 W
Output power (1 kHz, 1% THD, 250 Ω): 2 x 5 W
Output power (1 kHz, 1% THD, 32 Ω): 2 x 1 W
Dynamic range: 135.5 dB
Internal Linear Power Supply with Shielded Toroidal Transformer
Operating voltage for analog audio: +/- 60 V
Operating voltage for relays and LEDs: +12 V
Mains Power Supply
Mains voltage (selectable, see fuse chamber): 230 V AC / 50; 115 V AC / 60 Hz
Fuse for 230 V: T 630 mA
Fuse for 115 V: T 1.25 A
Power consumption: max. 40 VA
Dimensions & Weight
W x H x D (width x height incl. feet x depth): 278 x 100 x 300 mm (11 x 4 x 11.81 inch)
Unit weight: 4.3 kg (9.5 lbs)
Shipping weight (incl. packaging): 5.4 kg (11.9 lbs)
