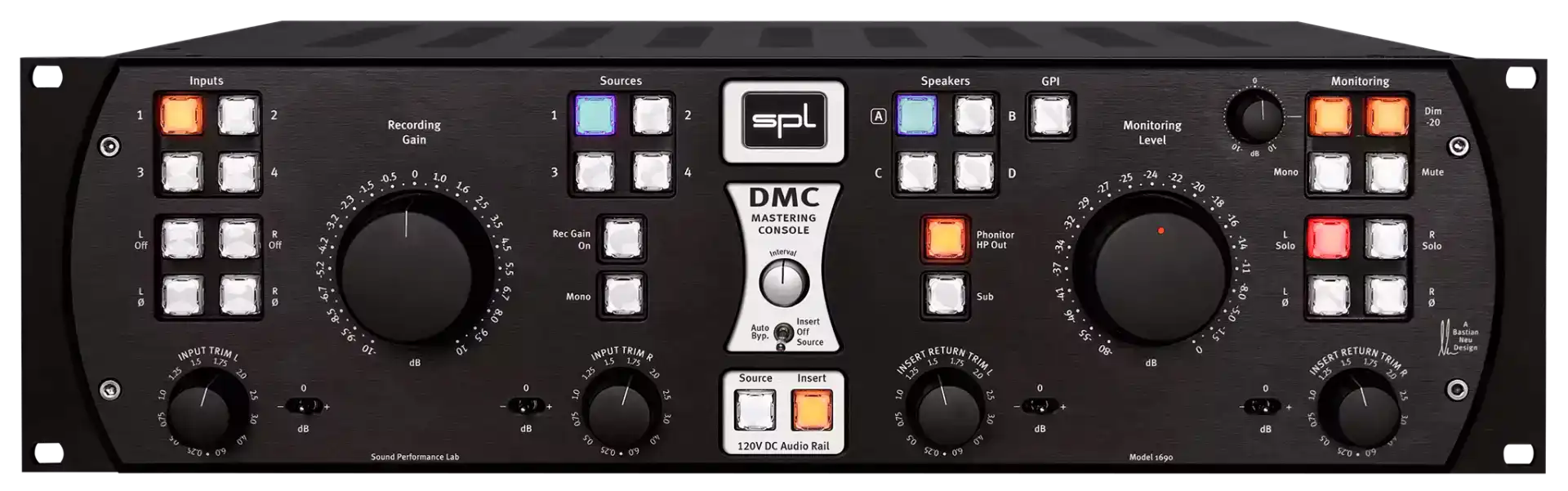

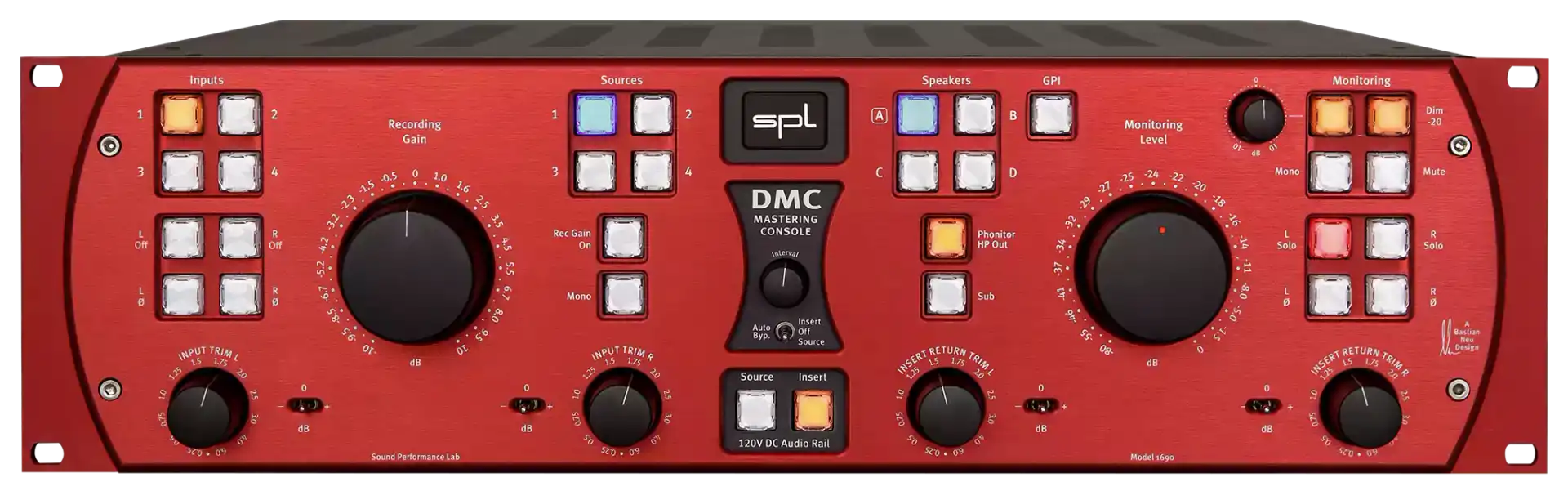

DMC - Mastering Console
The new DMC stereo mastering console is engineered from the ground-up making it not only more flexible with better specs than SPL’s previous console, but also more ergonomic and sized to fit in all types of studio furniture.

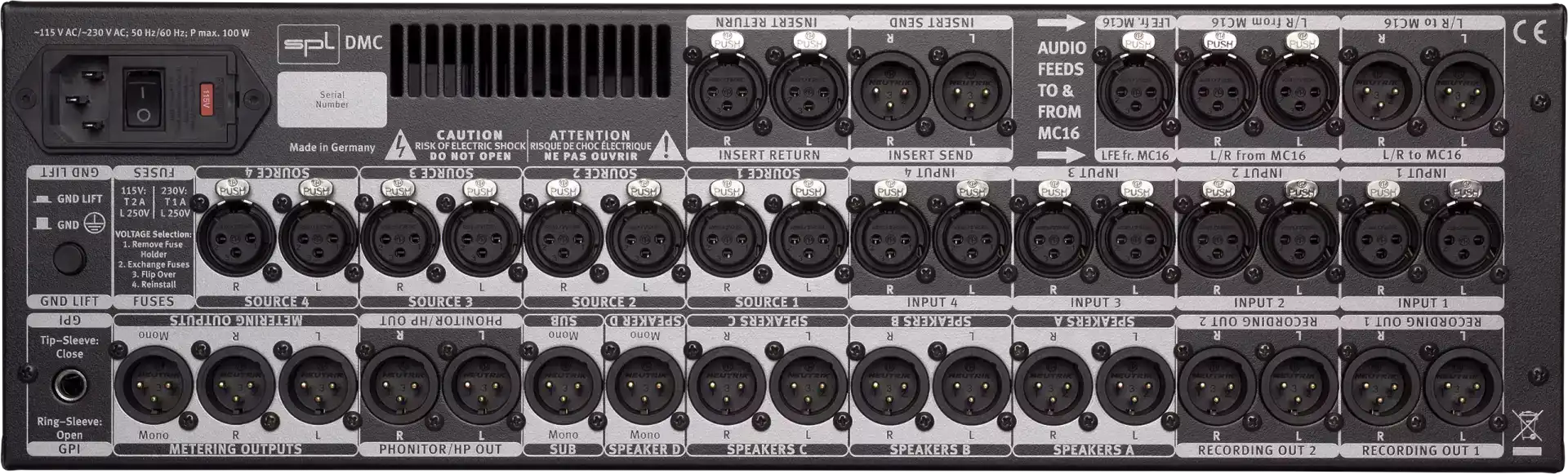

The 3RU console has 4 stereo inputs and 4 stereo sources, with 2 stereo recording outputs, as well as 3 stereo and 2 mono speaker outputs that can be expanded with the new MC16 controller.
The new DMC console operates on the same unequaled 120V DC audio rail like each of the other SPL Mastering Series processors.
Inputs
- Max. Input Level: +32.5 dBu
- Input Impedance: 20 kOhm (balanced)
- CMRR (at 0 dBu): › 82 dBu
Outputs (Speaker Output)
- Max. Output Level: +32.5 dBu
- Output Impedance: ‹ 100 Ohm
- Frequency Range: 10 Hz-200 kHz
10 Hz = -0.12 dB; 100 kHz = -0.3 dB; 200 kHz = -1.2 dB
- Noise (unweighted, at 24dBu): -101.4 dBu
- Noise (A-weighted, at 24dBu): -103.9 dBu
- Noise (CCIR, at 24dBu): -94.9 dBu
- THD & N (at 24dBu): › 108 dB
Outputs (Recording Output, Insert active)
- Max. Output Level: +32.5 dBu
- Output Impedance: ‹ 100 Ohm
- Frequency Range: 10 Hz-200 kHz
10 Hz = -0.12 dB; 100 kHz = -0.6 dB; 200 kHz = -2.3 dB
- Noise (unweighted, at 24dBu): -98.4 dBu
- Noise (A-weighted, at 24dBu): -101.6 dBu
- Noise (CCIR, at 24dBu): -92.2 dBu
- THD & N (at 24dBu): › 112 dB
Power Consumption:
- 0.22 Amp, 230V/50Hz, 35 Watt, 53 VA
- 0.44 Amp, 115V/60Hz, 35 Watt, 53 VA
Fuses:
- 230V/50Hz: 1 Amp
- 115V/60Hz: 2 Amp
Dimensions & Weight
- W x H x D: 482mm x 132mm x 340mm; 19" x 5.2" x 13.36"
- Standard EIA 19" Housing/3HE)
- Weight: 10.6kg / 23.369lb
