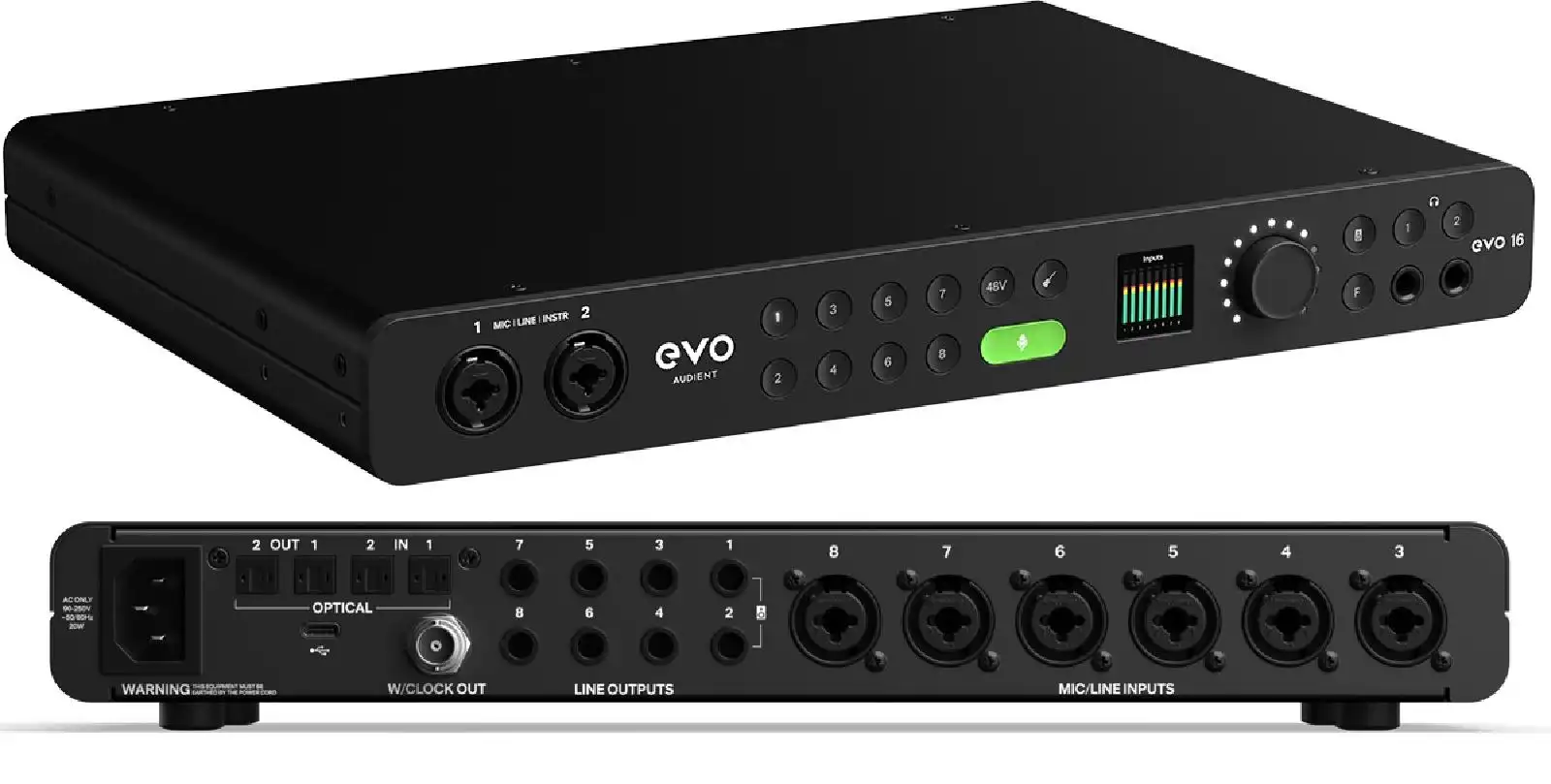

Audient EVO 16 - zvučna kartica
Garantiramo najnižu cijenu na tržištu!
U slučaju da pronađete isti proizvod po povoljnijoj cijeni,
molimo Vas da nas kontaktirate na:
info@player.hr
Osam nagrađivanih EVO pretpojačala uz Audientovu naprednu tehnologiju konverzije učinit će da sve što snimite zvuči bolje. Dodajte tome inteligentna mikrofonska pretpojačala koja automatski postavljaju potrebne razine sa Smartgainom, novi revolucionarni Motion UI sustav kontrole, te dovoljno priključaka za najzahtjevnije sessione i dobit ćete EVO 16 - srce vašeg tonskog studija. Korisničko sučelje Motion (UI) dizajnirano je da promijeni način na koji ste do sada upravljali audio sučeljem. Po prvi put, impresivni LCD zaslon visoke razlučivosti u boji inteligentno prikazuje informacije i pretvara EVO 16 u potpuno impresivno iskustvo jednostavno za korištenje. Neke od značajki: 8 EVO pretpojačala, 2 JFET instr. ulaza, 2 neovisna izlaza za slušalice, 2x optički I/O, programabilna funkcijska tipka, Word Clock izlaz, superniska latencija itd. Audient EVO 16 je višekanalno sučelje nove i buduće generacije!
Microphone Preamplifier
| Mic Gain Range: | 58dB |
| Line Gain Range: | 58dB (-10dB pad) |
| Phantom Power: | 48v +/-4v @ 10mA/Channel |
| Mic EIN: | <-127.5dBu |
| CMRR: | >80dB @ 1kHz |
| Maximum Input Level: | +16dBu |
| Input Impedance (Mic): | >3kΩ Balanced |
| Input Impedance (Line): | >10kΩ Balanced |
| Frequency Response: | +/-0.5dB 10Hz to 40kHz |
| Crosstalk: | <-105dBu @ 1kHz <-103 @ 10kHz |
| THD+N @ 0dBu (1kHz): | <0.0015% |
| SNR: | 100dB |
| XLR: | Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield) |
| 1/4” Jack: | IP (Hot), RING (Cold) & SLEEVE (Shield) |
D.I
| D.I Gain Range: | 58 dB |
| Maximum Input Level: | +10dBu |
| Input Impedance: | 500k |
| Frequency Response | +/-0.5dB 10Hz to 20kHz |
| THD+N @ 0dBu (1kHz): | <0.1% |
| SNR: | 100dB |
| 1/4” Jack: | TIP (Hot) & SLEEVE (Shield) |
ADC Inputs
| Digital Reference Level: | 0dBFS = +10.5dBu |
| Frequency Response: | +/-0.5dB 10Hz to Fs/2 |
| Crosstalk: | -125dBu @ 1kHz & 10kHz |
| THD+N @ -1dBFS (1kHz): | <0.001% |
| Dynamic Range: | 112.5dB A-Weighted |
DAC Outputs
| Maximum Output Level: | 12dBu |
| Digital Reference Level: | 0dBFS = +12dBu |
| Output Impedance: | <50Ω |
| Frequency Response: | +/-0.5dB 10Hz to Fs/2 |
| Crosstalk: | <-110dBu @ 1kHz |
| THD+N @ -1dBFS (1kHz): | <0.001% |
| Dynamic Range: | 121dB A-weighted |
| 1/4” Jack: | TIP (Hot), RING (Cold) & SLEEVE (Shield) |
Headphone Output
| Max Output Level: | 11.25dBu |
| Output Impedance: | <50Ω |
| Frequency Response: | +/-0.5dB 10Hz to Fs/2 |
| Crosstalk: | -108dBu @ 1kHz |
| THD+N @ -1dBFS (1kHz): | <0.001% |
| Dynamic Range: | 118dB A-weighted |
| Max Level Into 30ohms: | +8.5 dBu, 0.00094% THD+N, 1.66Vpk Power: 86mW |
| Max Level Into 60ohms: | 10 dBu, 0.00079% THD+N, 2.55Vpk Power: 104mW |
| Max Level Into 600ohms: | 11.2 dBu, 0.00057%THD+N, 3.83Vpk Power: 24mW |
| 1/4” Jack: | TIP (Left), RING (Right) & SLEEVE (Shield) |
Dimensions
| Dimensions (Unit) | 355mm (w) x 255mm (d) x 53mm (h) |
