Audient EVO 4 - zvučna kartica
Šifra: 18443
Regularna cijena:
140,00 EUR
Cijena sa popustom *
Cijena za kupovinu na rate:
Cijena sa popustom *
117,00 EUR
PDV je uračunat u cijenu
Iznos rate:
*Cijena sa popustom može se ostvariti ukoliko se plaća gotovinom, virmanom (preko računa) ili debitnom i kreditnom karticom odmah i odjednom.
Prikazana cijena je za komad.
Garantiramo najnižu cijenu na tržištu!
U slučaju da pronađete isti proizvod po povoljnijoj cijeni,
molimo Vas da nas kontaktirate na:
info@player.hr

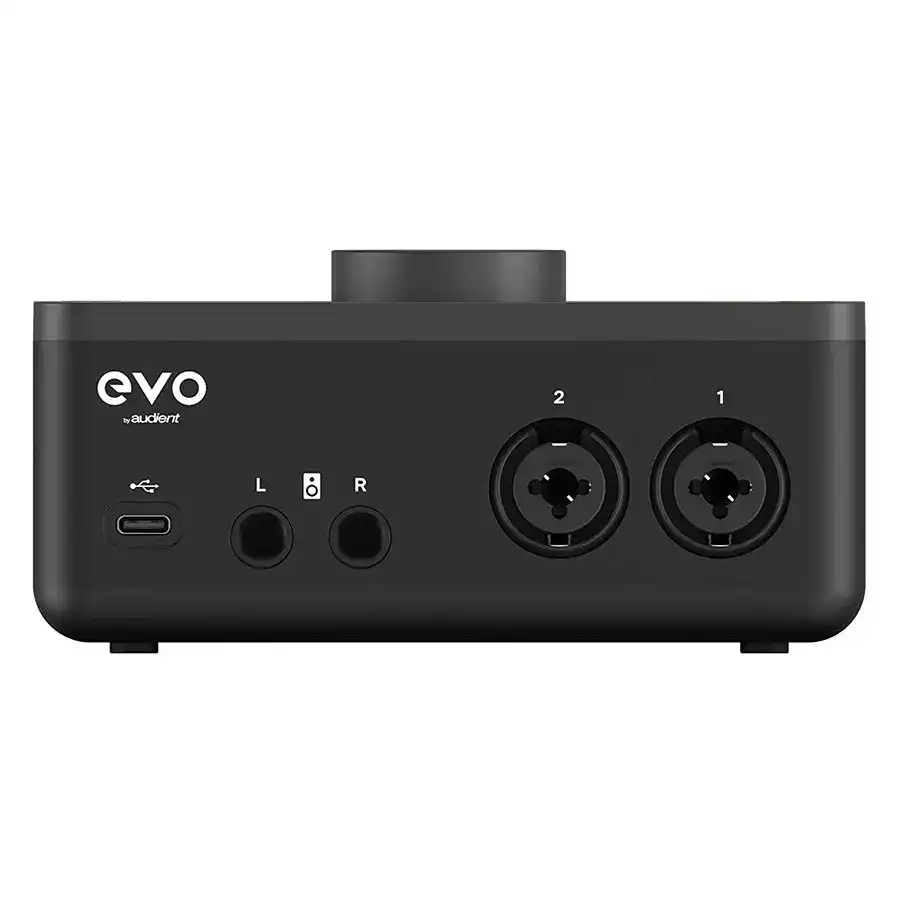

Stigla je najnovija referenca kada govorimo o audio sučeljima: Audient EVO 4. Renomirani britanski brend Audient imao je za cilj samo jedno: omogućiti korisniku iskustvo brzo i jednostavno snimanje uz vrhunski zvuk. Audijentov EVO 4 sadrži fantastične značajke koje nadmašuju sva sučelja u svojoj klasi: 2 mikrofonska pretpojačala u potpuno novom dizajnu s pojačanjem od 58 dB, sjajne konvertore s dinamičkim rasponom od 113 dB zajedno s ulaznim priključkom za instrumente JFET DI, funkcije Smartgain i Smart Touchpoints, izlaznim priključcima za zvučnike / slušalice s izuzetno niskom latencijom. Dodajmo svemu tome još i fenomenalan i moderan izgled koji će se uklopiti u svaki ambijent snimanja i sve to po prihvatljivoj cijeni.
Microphone Preamplifier
| Mic Gain Range: | 58dB |
| Line Gain Range: | 58dB (-10dB pad) |
| Phantom Power: | 48v +/-4v @ 10mA/Channel |
| Mic EIN: | <-128dBu |
| CMRR: | >85dB @ 1kHz |
| Maximum Input Level: | +16dBu |
| Input Impedance (Mic): | >3kΩ Balanced |
| Input Impedance (Line): | >10kΩ Balanced |
| Frequency Response: | +/-0.5dB 10Hz to 40kHz |
| Crosstalk: | <-105dBu @ 1kHz & 10kHz |
| THD+N @ 0dBu (1kHz): | <0.0015% |
| SNR: | 100dB |
| XLR: | Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield) |
| 1/4” Jack: | TIP (Hot), RING (Cold) & SLEEVE (Shield) |
D.I
| D.I Gain Range: | 58 dB |
| Maximum Input Level: | +10dBu |
| Input Impedance: | 1MegΩ Unbalanced |
| Frequency Response | +/-0.5dB 10Hz to 20kHz |
| THD+N @ 0dBu (1kHz): | <0.3% |
| SNR: | 100dB |
| 1/4” Jack: | TIP (Hot) & SLEEVE (Shield) |
ADC Inputs
| Digital Reference Level: | 0dBFS = +8dBu |
| Frequency Response: | +/-0.5dB 10Hz to Fs/2 |
| Crosstalk: | -105dBu @ 1kHz & 10kHz |
| THD+N @ -1dBFS (1kHz): | <0.001% |
| Dynamic Range: | 113dB A-weighted |
DAC Outputs
| Maximum Output Level: | +11dBu |
| Digital Reference Level: | 0dBFS = +11dBu |
| Output Impedance: | <100Ω Balanced |
| Frequency Response: | +/-0.5dB 10Hz to Fs/2 |
| Crosstalk: | <-110dBu @ 1kHz |
| THD+N @ -1dBFS (1kHz): | <0.0015% |
| Dynamic Range: | 113dB A-weighted |
| 1/4” Jack: | TIP (Hot), RING (Cold) & SLEEVE (Shield) |
Headphone Output
| Output Impedance: | <50Ω |
| Frequency Response: | +/-0.5dB 10Hz to Fs/2 |
| Crosstalk: | -110dBu @ 1kHz |
| THD+N @ -1dBFS (1kHz): | <0.0015% |
| Dynamic Range: | 113dB A-weighted |
| Max Level Into 30ohms: | +0.5dBu, 0.0025% THD+N, 1.16Vpk Power: 45mW |
| Max Level Into 60ohms: | +4.22dBu, 0.0015% THD+N, 1.78Vpk Power: 52mW |
| Max Level Into 600ohms: | +10.1dBu, 0.0018% THD+N, 3.52Vpk Power: 20mW |
| 1/4” Jack: | TIP (Left), RING (Right) & SLEEVE (Shield) |
DSP Mixer Roundtrip Latency:
(in to out)
| 44.1 kHz | 0.594ms |
| 48.0 kHz | 0.552ms |
| 88.2 kHz | 0.302ms |
| 96.0 kHz | 0.281ms |
DAW Playback Latency
@ 32 Sample Buffer for Software Instrument Playback
| 44.1 kHz | ~2.5ms |
| 96.0 kHz | ~2ms |
DAW Roundtrip Software Monitoring Latency
@ 32 Sample Buffer (in to out)
| 44.1 kHz | 5ms |
| 96.0 kHz | 4.1ms |
USB 2.0 High Speed
| No. Of Input Channels | 2 Analogue |
| No. Of Output Channels | 2 Analogue |
| Connector: | USB Type-C |
| Included Cables: | 1m USB 2.0 Type-C to USB Type-A |
Weight & Dimensions
| Weights: | Unit: | 360g |
| Packaged: | 600g | |
| Dimensions: | Unit: | 140mm (w) x 67mm (h) x 67mm (d) |
| Packaged: | 172mm (w) x 88mm (h) x 97.5mm (d) |
