Audient Horizon 32
Aktualna cijena vrijedi za gotovinsko, virmansko ili jednokratno kartično plaćanje. Za obročno kartično plaćanje primjenjuje se navedena cijena za obročno plaćanje.
JAMSTVO NAJNIŽE CIJENE
Pronašli ste isti proizvod po nižoj cijeni? Kontaktirajte nas.
Ako pronađete isti proizvod, u istoj konfiguraciji i pod usporedivim uvjetima kupnje, po nižoj javno dostupnoj cijeni kod drugog trgovca u Republici Hrvatskoj, javite nam se prije kupnje.
Nakon provjere ponude, nastojat ćemo vam ponuditi povoljniju cijenu.
info@player.hr
Welcome to the New Standard

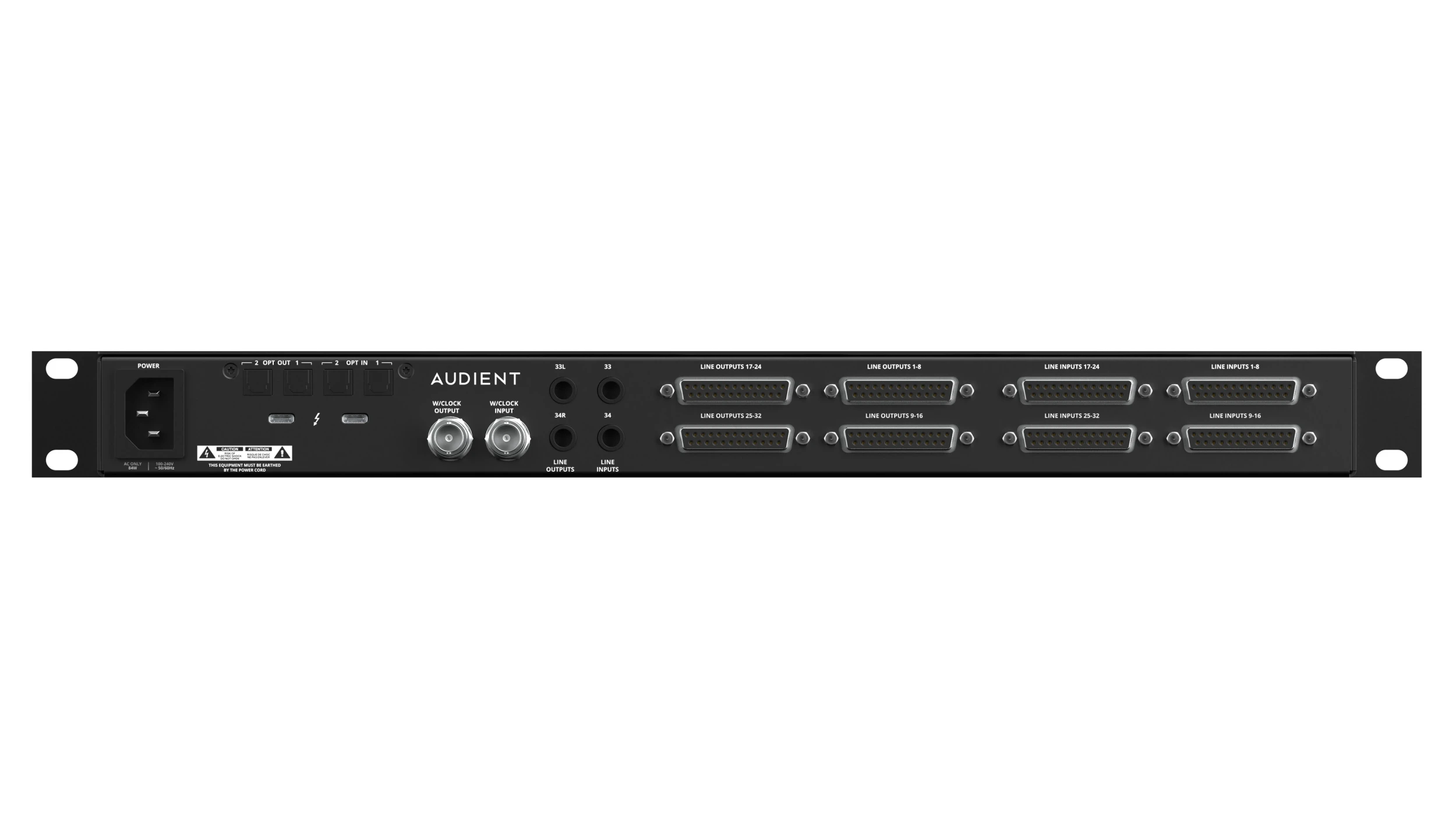

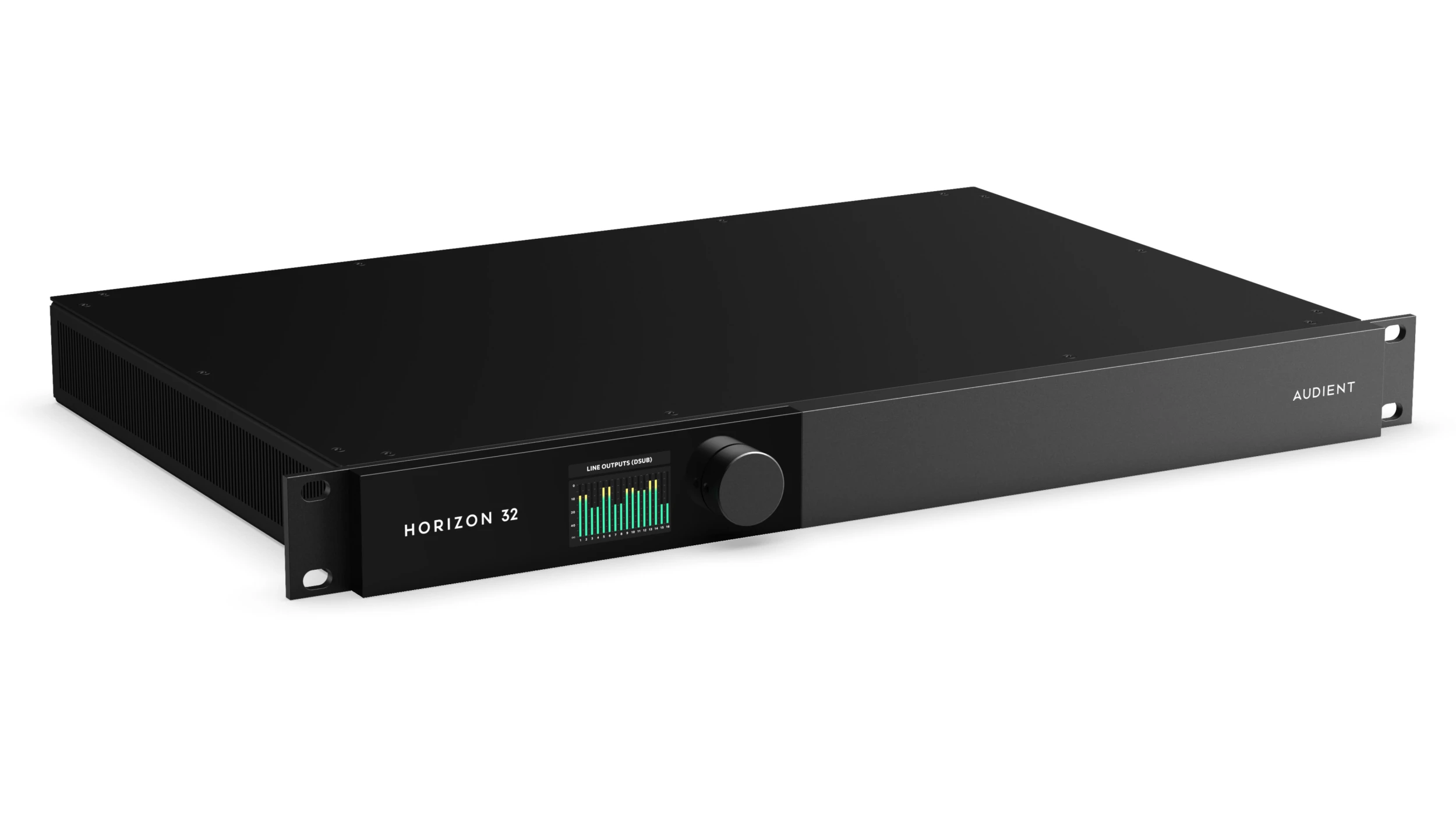

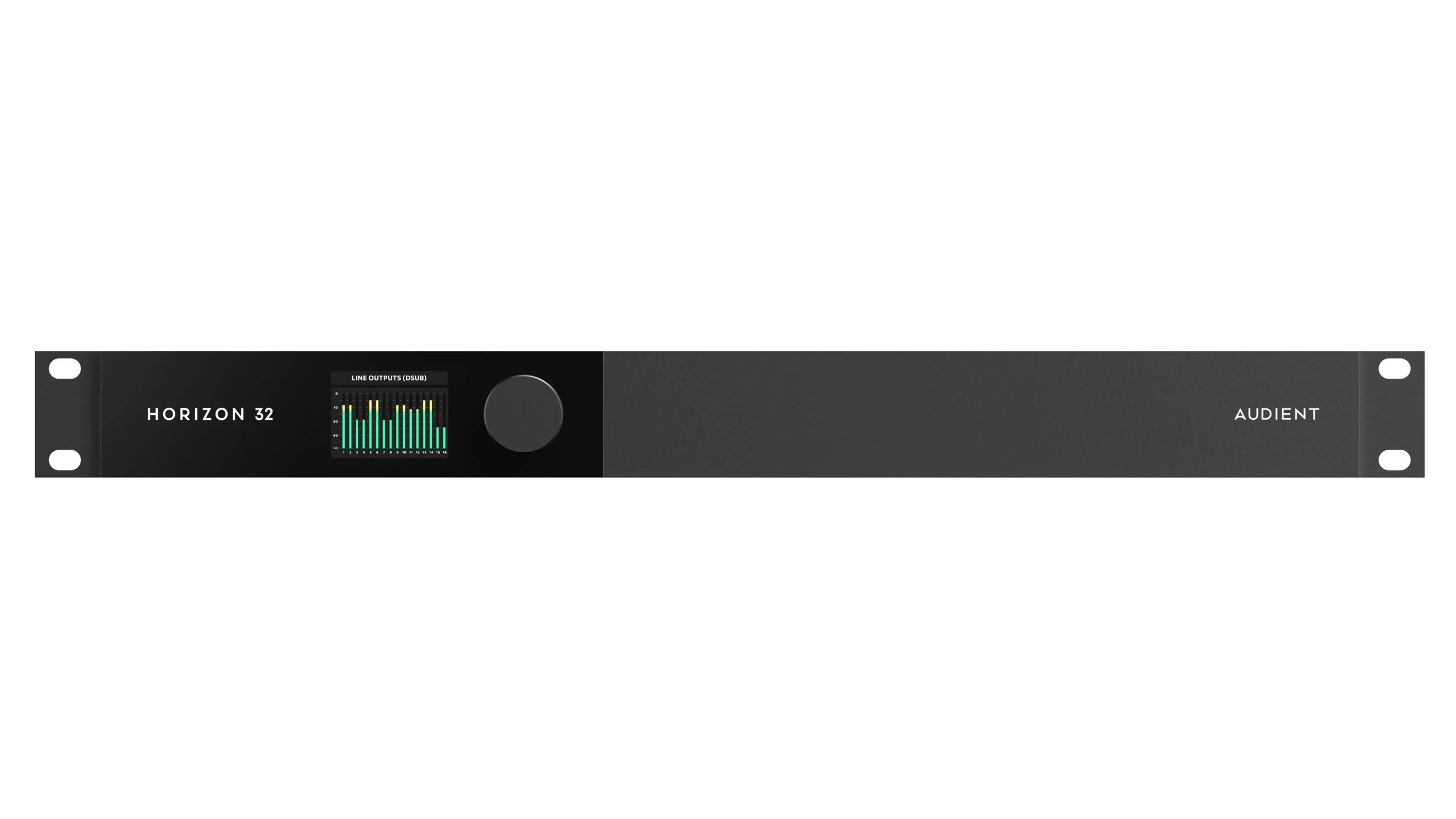

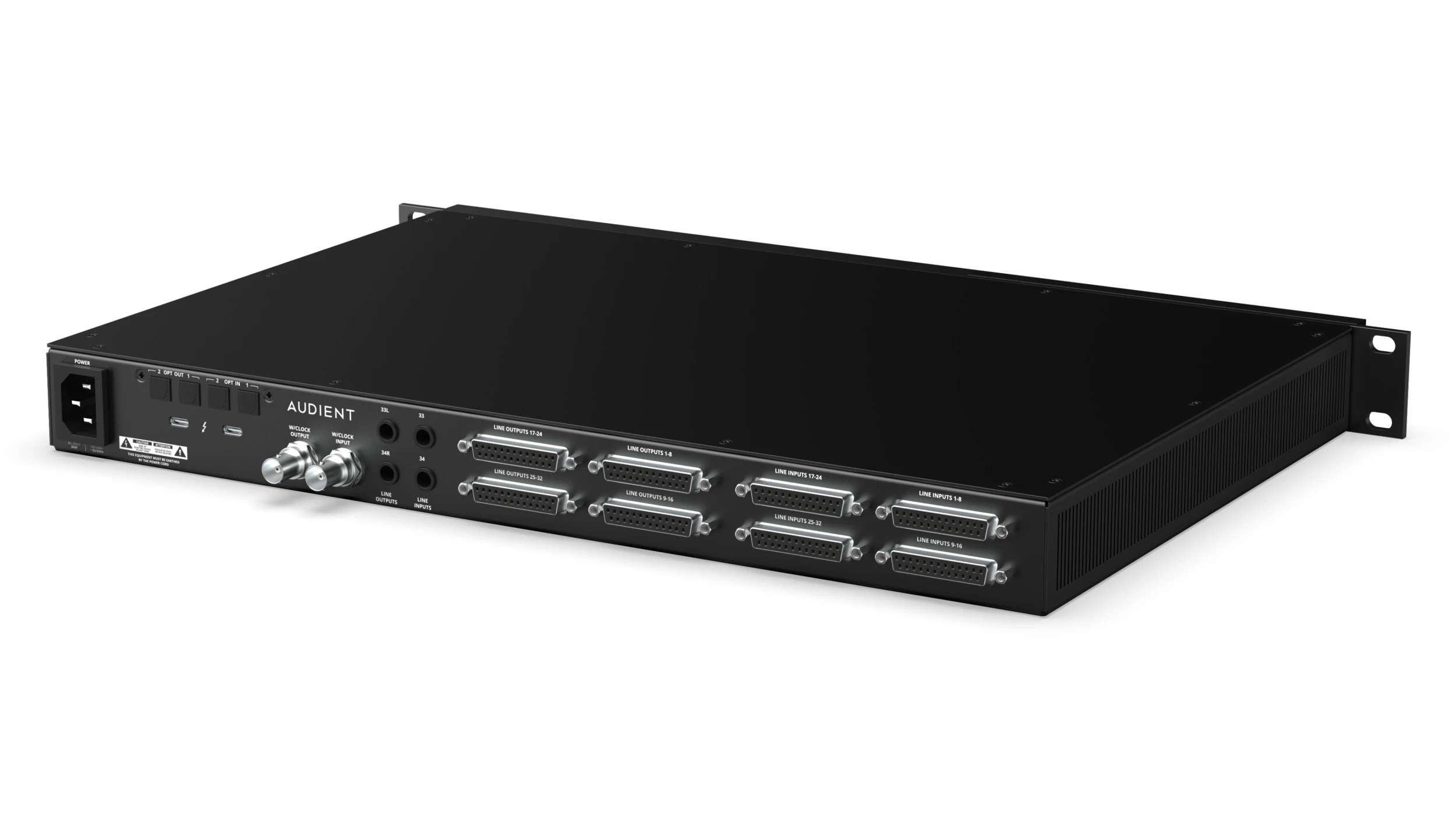

The Horizon 32 is the definitive 50-in / 50-out Thunderbolt™ 3 Interface for the professional project studio. It delivers 32×32 channels of primary analogue I/O via eight industry-standard DB25 connectors, providing a transparent bridge for boutique outboard racks, consoles and summing workflows. With 0.99ms round-trip latency and Elite 32-bit Mastering-Grade Converters, Horizon 32 eliminates technical friction, ensuring only the uncoloured character of your analogue chain remains. Welcome to the new standard of conversion.
ADC Input
MAXIMUM INPUT LEVEL: 24dBu = 0dBFS
THD+N @ -1dBFS: -117dB, 0.00014%
DYNAMIC RANGE: 127dB A-Weighted
FREQUENCY RESPONSE: ±0.2dB 10Hz to Fs/2 (Nyquist)
CROSSTALK: <130dB
Line Outputs
MAXIMUM OUTPUT LEVEL: 24dBu = 0dBFS
THD+N @ -1dBFS: -122dB, 0.00008%
DYNAMIC RANGE: 132dB A-Weighted
FREQUENCY RESPONSE: ±0.5dB 10Hz to Fs/2 (Nyquist)
CROSSTALK: <130dB
IMPEDANCE: 47Ω
Monitor Outputs
MAXIMUM OUTPUT LEVEL: 24dBu = 0dBFS
THD+N @ -1dBFS: -120dB, 0.00008%
DYNAMIC RANGE: 133dB A-Weighted
FREQUENCY RESPONSE: ±0.5dB 10Hz to Fs/2 (Nyquist)
CROSSTALK: <130dB
IMPEDANCE: 47Ω
Digital Features
INPUTS: Optical Input SPDIF/ADAT x2
OUTPUTS: Optical Output SPDIF/ADAT x2
WORD CLOCK: Input and Output, ±10ppm accuracy
SUPPORTED SAMPLE RATES: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
DSP Mixer Roundtrip Latency
All figures at 64 sample buffer size
44.1kHz: 4.286ms
48kHz: 3.938ms
88.2kHz: 2.143ms
96kHz: 1.969ms
176.4kHz: 1.077ms
192kHz: 0.99ms
Connectivity
THUNDERBOLT 3
Power Requirements
INPUT VOLTAGE: 85 – 264 VAC
INPUT FREQUENCY: 47 – 63Hz
