Audient Horizon 8P
Aktualna cijena vrijedi za gotovinsko, virmansko ili jednokratno kartično plaćanje. Za obročno kartično plaćanje primjenjuje se navedena cijena za obročno plaćanje.
JAMSTVO NAJNIŽE CIJENE
Pronašli ste isti proizvod po nižoj cijeni? Kontaktirajte nas.
Ako pronađete isti proizvod, u istoj konfiguraciji i pod usporedivim uvjetima kupnje, po nižoj javno dostupnoj cijeni kod drugog trgovca u Republici Hrvatskoj, javite nam se prije kupnje.
Nakon provjere ponude, nastojat ćemo vam ponuditi povoljniju cijenu.
info@player.hr
Welcome to the New Standard

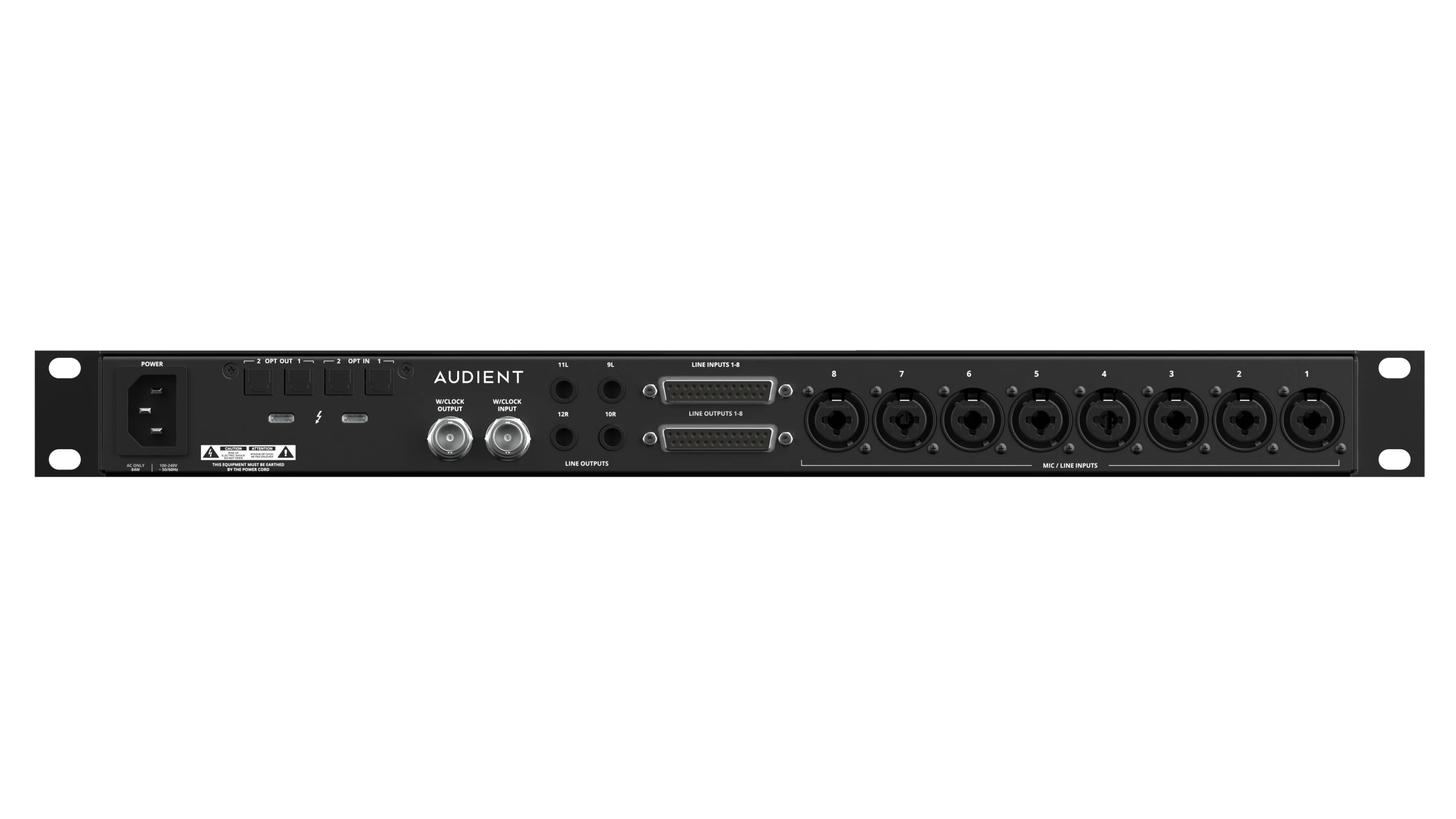

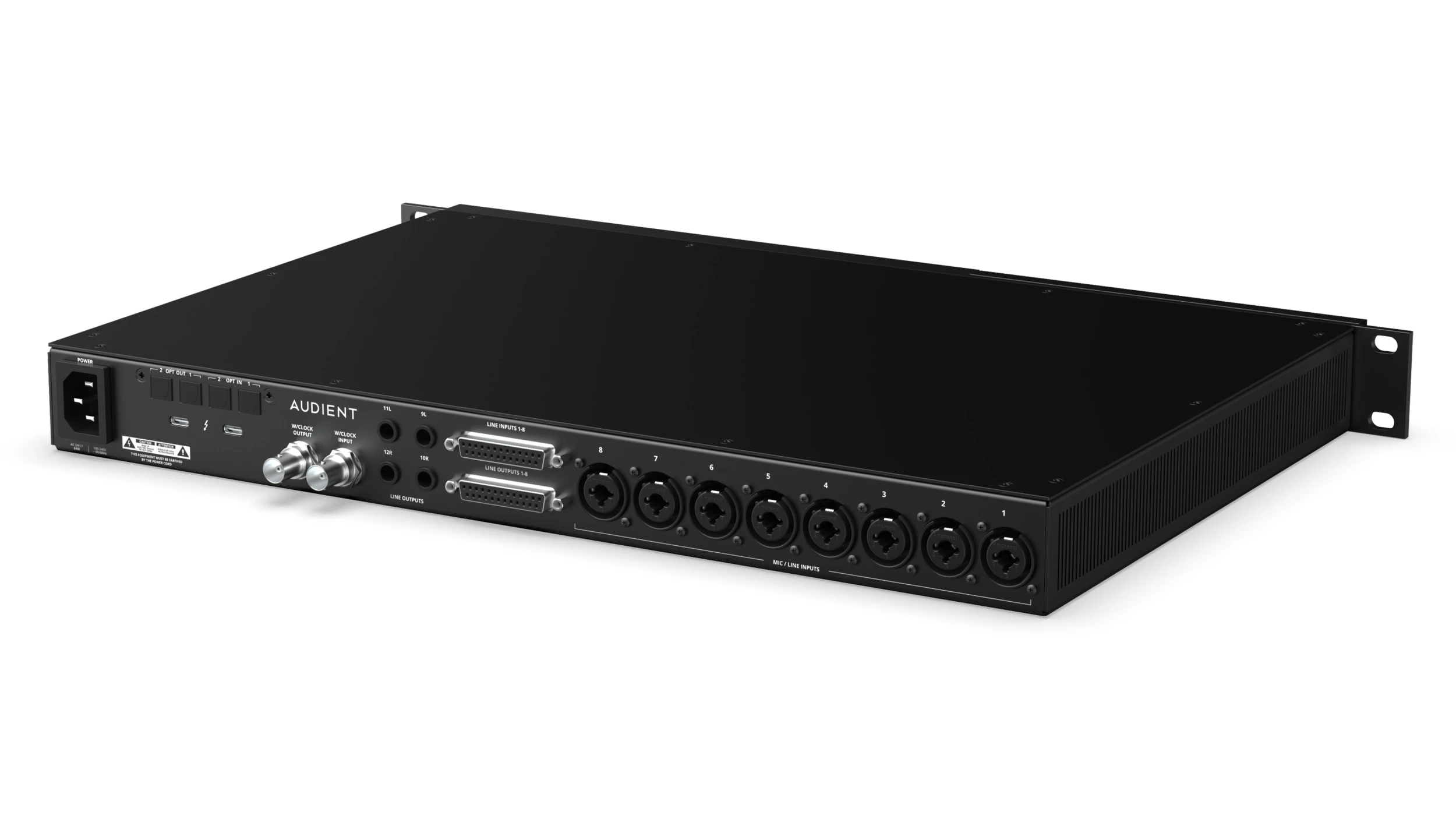

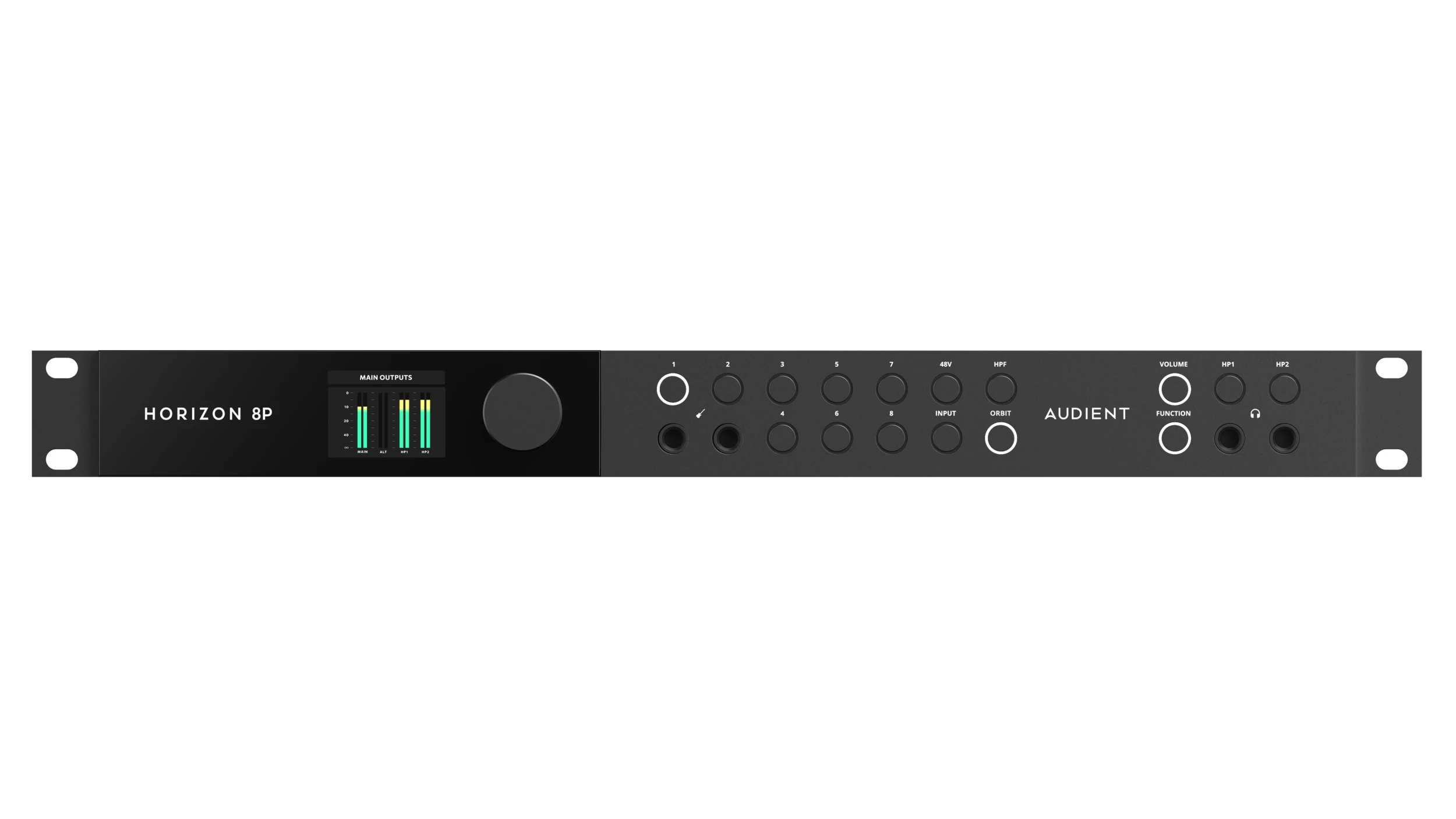

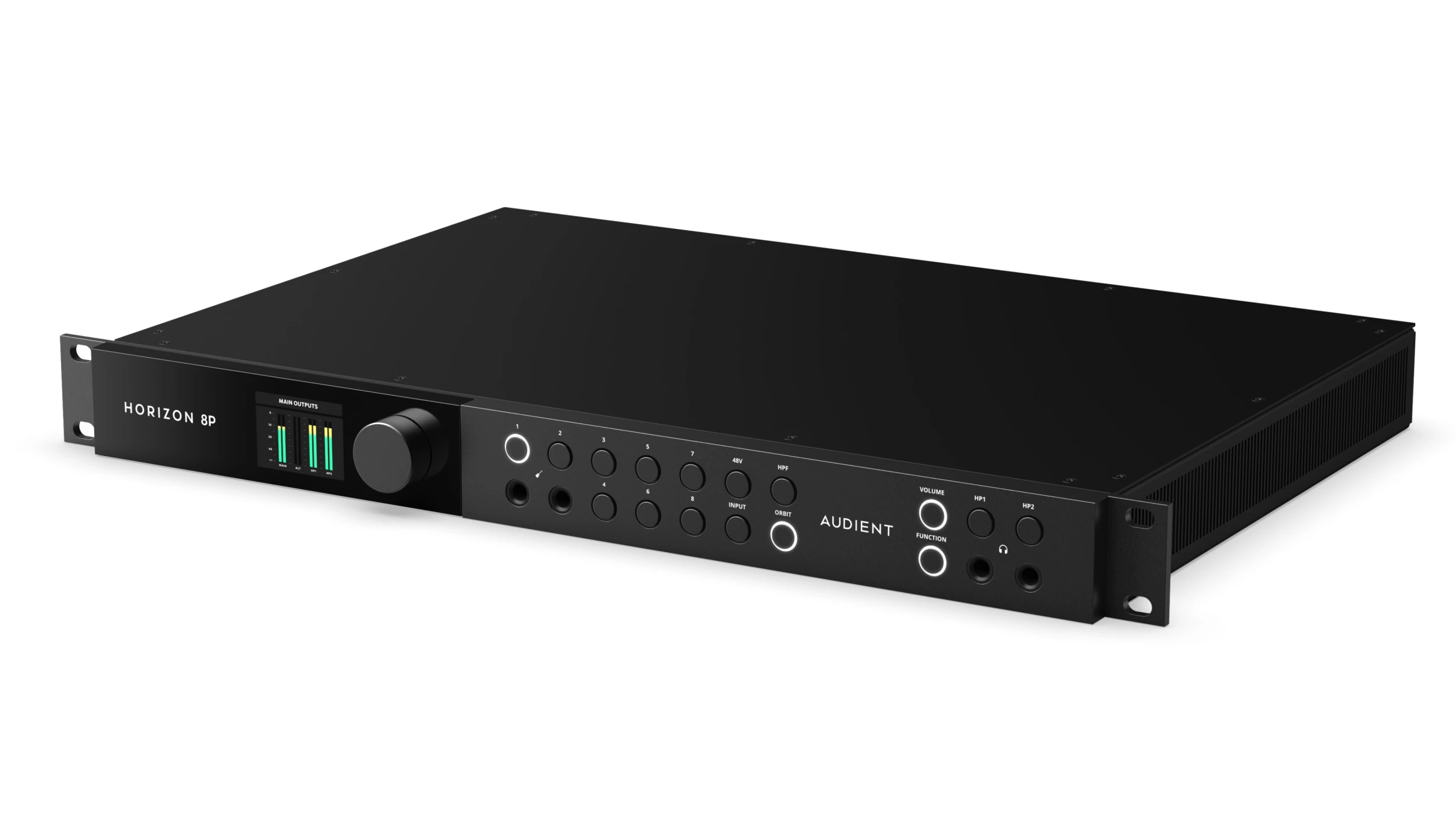

The Horizon 8P is a flagship 24-input, 32-output Thunderbolt 3 audio interface built for the mission-critical studio. Featuring eight Audient console preamps with ORBIT Control and Elite 32-bit mastering-grade conversion, Horizon bridges the gap between classic analogue character and the stability of a direct PCIe-speed connection. Uncompromising quality. Unrivalled performance. The first step into a frictionless, scalable studio foundation. Welcome to the new standard.
Mic Pre Input
MAXIMUM INPUT LEVEL: 18dBu
THD+N @ 0dBu: -98dB, 0.0011%
GAIN: 0 to 75dB
SNR: 101dB A-Weighted
EIN: -129dB A-Weighted
FREQUENCY RESPONSE: ±0.5dB 10Hz to 80kHz
CMRR: >75dB
CROSSTALK @ 1kHz and 10kHz: <100dB
INPUT IMPEDANCE: 3kΩ
Line Input
MAXIMUM INPUT LEVEL: 28dBu
THD+N @ 10dBu: -98dB, 0.0011%
GAIN: -10 to 65dB
INPUT IMPEDANCE: 10kΩ
DI Input
MAXIMUM INPUT LEVEL: 12dBu
THD+N @ 0dBu: -75dB, 0.018%
GAIN: 0 to 75dB
SNR: 101dB A-Weighted
FREQUENCY RESPONSE: ±0.5dB 10Hz to 40kHz
INPUT IMPEDANCE: 500kΩ
Additional Mic Pre Features
PHANTOM POWER: +48V DC, 10mA per channel
ORBIT
10dB PAD
HPF
ADC Input
MAXIMUM INPUT LEVEL: 24dBu = 0dBFS
THD+N @ -1dBFS: -118dB, 0.00012%
DYNAMIC RANGE: 127dB A-Weighted
FREQUENCY RESPONSE: ±0.2dB 10Hz to Fs/2 (Nyquist)
CROSSTALK: <130dB
Line Outputs
MAXIMUM OUTPUT LEVEL: 24dBu = 0dBFS
THD+N @ -1dBFS: -122dB, 0.00008%
DYNAMIC RANGE: 132dB A-Weighted
FREQUENCY RESPONSE: ±0.5dB 10Hz to Fs/2 (Nyquist)
CROSSTALK: <130dB
IMPEDANCE: 47Ω
Headphone Outputs
MAXIMUM OUTPUT LEVEL: 15dBu = 0dBFS
THD+N @ -1dBFS: -116dB, 0.00015%
DYNAMIC RANGE: 124dB A-Weighted
FREQUENCY RESPONSE: ±0.5dB 10Hz to Fs/2 (Nyquist)
CROSSTALK: <120dB
IMPEDANCE: 10Ω
MAXIMUM OUTPUT LEVEL AND POWER INTO 30R: 5.55V Peak, 1.03W
MAXIMUM OUTPUT LEVEL AND POWER INTO 60R: 6.44V Peak, 691mW
MAXIMUM OUTPUT LEVEL AND POWER INTO 600R: 6.55V Peak, 71mW
Digital Features
INPUTS: Optical Input SPDIF/ADAT x2
OUTPUTS: Optical Output SPDIF/ADAT x2
WORD CLOCK: Input and Output, ±10ppm accuracy
SUPPORTED SAMPLE RATES: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
DSP Mixer Roundtrip Latency
All figures at 64 sample buffer size
44.1kHz: 4.286ms
48kHz: 3.938ms
88.2kHz: 2.143ms
96kHz: 1.969ms
176.4kHz: 1.077ms
192kHz: 0.99ms
Connectivity
THUNDERBOLT 3
Power Requirements
INPUT VOLTAGE: 85 – 264 VAC
INPUT FREQUENCY: 47 – 63Hz
