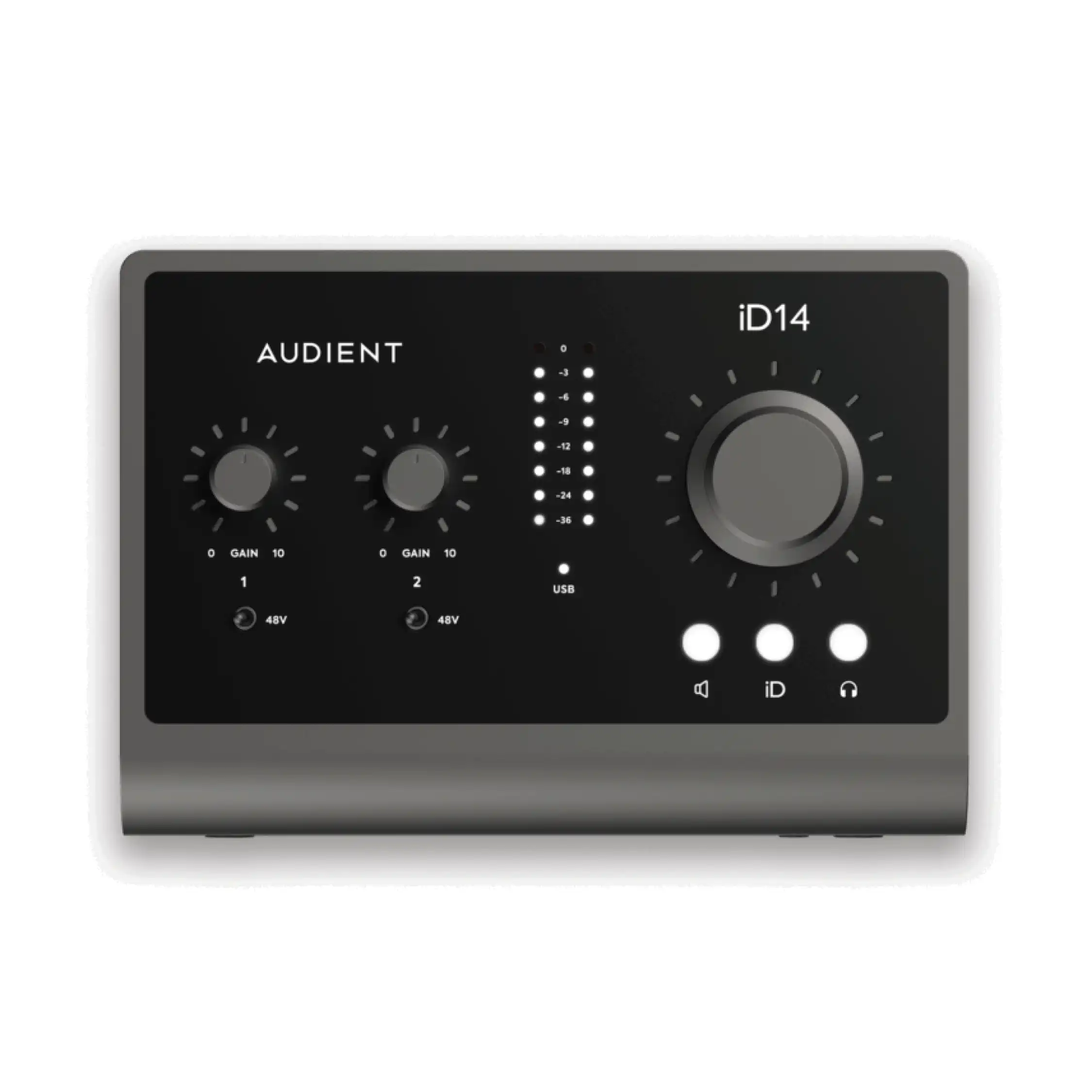

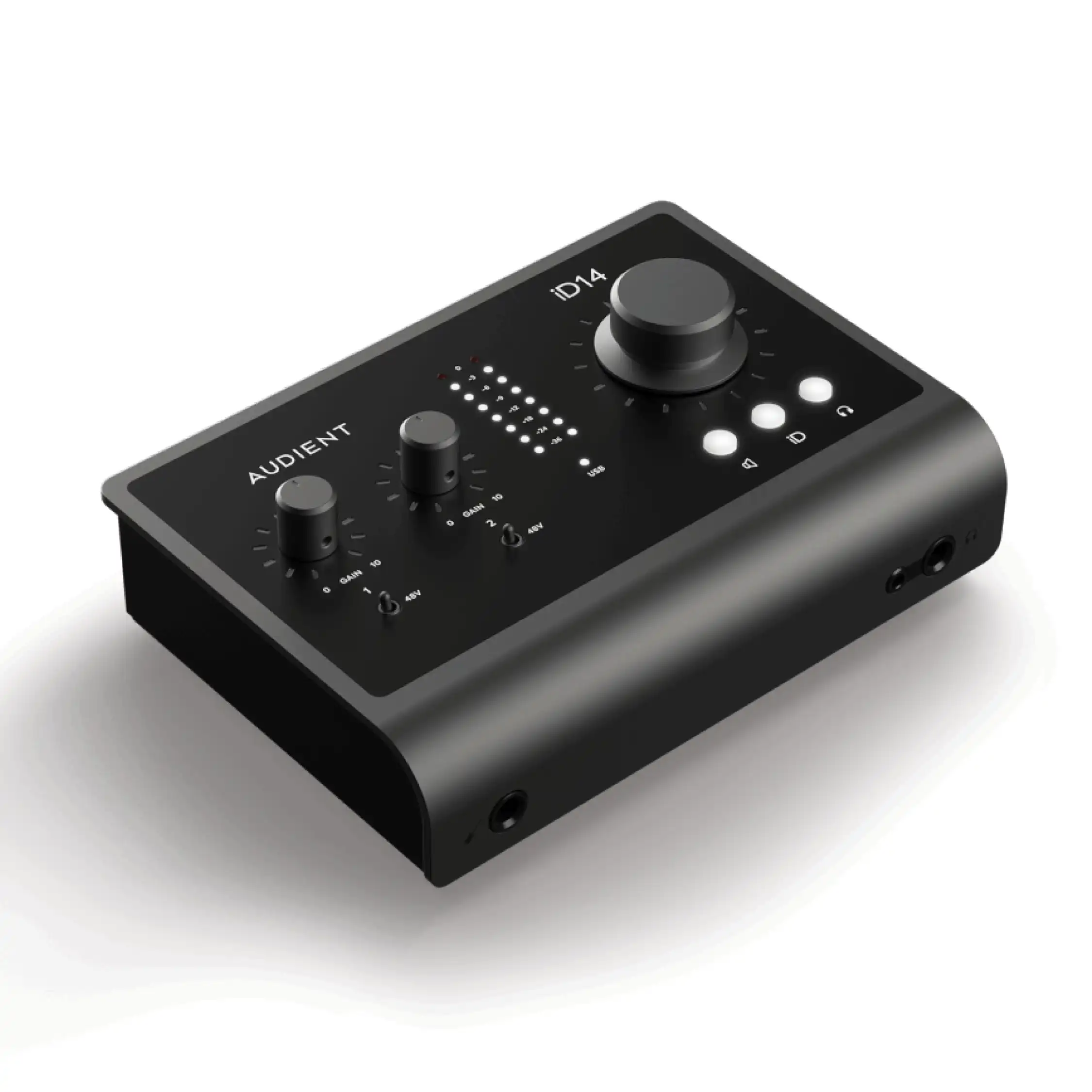

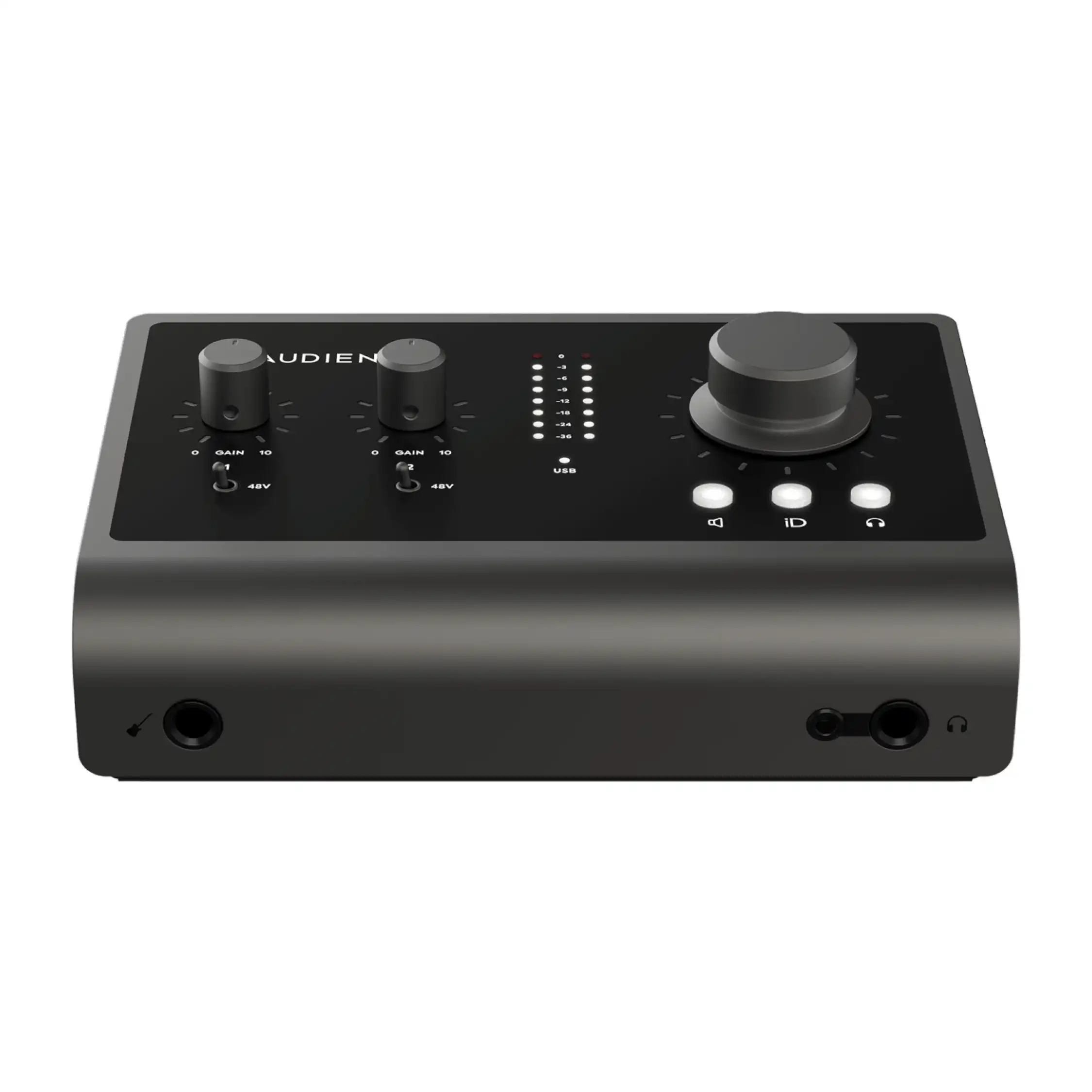

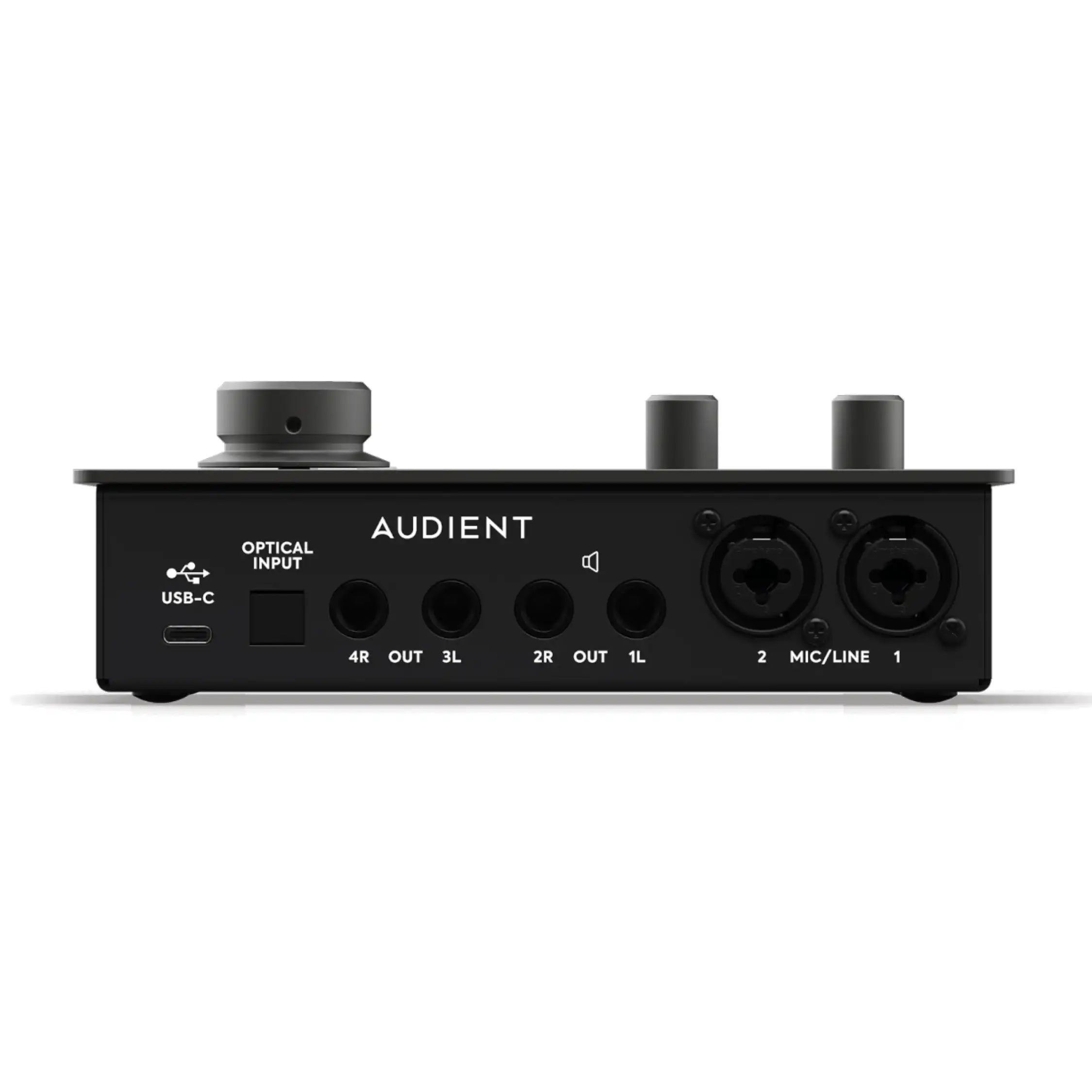

Audient iD14 MK2 - zvučna kartica
Aktualna cijena vrijedi za gotovinsko, virmansko ili jednokratno kartično plaćanje. Za obročno kartično plaćanje primjenjuje se navedena cijena za obročno plaćanje.
JAMSTVO NAJNIŽE CIJENE
Pronašli ste isti proizvod po nižoj cijeni? Kontaktirajte nas.
Ako pronađete isti proizvod, u istoj konfiguraciji i pod usporedivim uvjetima kupnje, po nižoj javno dostupnoj cijeni kod drugog trgovca u Republici Hrvatskoj, javite nam se prije kupnje.
Nakon provjere ponude, nastojat ćemo vam ponuditi povoljniju cijenu.
info@player.hr
Meet iD14, the award winning audio interface built for making music like a pro. Featuring two fully analogue Audient Console Mic Preamps, Advanced 32-bit AD/DA Converters and the ability to expand via ADAT – iD14 packs everything you need to get studio quality recordings into a small, easy to use desktop package.
D.I / Instrument Input
RANGE: +58dB
LINEUP: 12dBu = 0dBFS
THD+N @ 0dBu: 0.1%
SNR: 100dBu A-Weighted
FREQUENCY RESPONSE – MIN GAIN: ±0.5dB 10Hz to 20kHz
1/4” TS JACK: Tip (Hot) & Sleeve (Shield)
Microphone Preamplifier
GAIN RANGE: 58dB
LINEUP: 12dBu = 0dBFS
MIC MAX INPUT LEVEL: 12dBu
MAX INPUT LEVEL: 21dBu
INPUT IMPEDANCE (Mic): 2.8k
INPUT IMPEDANCE (Line): >8k
THD+N @ 0dBu: 0.00170%
THD+N @ 0dBu MAX GAIN: <0.04%
SNR: 101dBu A-Weighted
EIN: 129dB A-Weighted
CMRR @ 1k: >75dB
CROSSTALK: >-100dB
FREQUENCY RESPONSE – MIN GAIN: ±0.5dB 10Hz to 40kHz
PHANTOM POWER: (48V +/-4V @ 10mA/Channel)
XLR COMBI FEMALE: Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
1/4” TRS JACK: Tip (Hot), Ring (Cold) & Sleeve (Shield)
Analogue to Digital Converter
THD+N @ -1dBFS: 0.001%
DYNAMIC RANGE: 120dB A-Weighted
CMRR: >80dB
FREQUENCY RESPONSE: ±0.5dB 10Hz to 40kHz
Line Outputs (DAC)
LINEUP: 12dBu = 0dBFS
THD+N @ -1dBFS: 0.0006%
DYNAMIC RANGE: 125.5dB A-Weighted
CROSSTALK: >120dB
FREQUENCY RESPONSE: ±0.1dB 10Hz to 40kHz
1/4” TRS JACK: Tip (Hot), Ring (Cold) & Sleeve (Shield)
Headphone Outputs
LINEUP: 18dBu = 0dBFS
THD+N @ -1dBFS: 0.0009%
DYNAMIC RANGE: 125.5dB A-Weighted
CROSSTALK: >116dB
FREQUENCY RESPONSE: ±0.25dB 10Hz to 40kHz
MAXIMUM LEVEL @ 30R: 2.59V Peak, 1.827V RMS, 223mW
MAXIMUM LEVEL @ 62R: 4.18V Peak, 2.95V RMS, 280mW
MAXIMUM LEVEL @ 600R: 7.72V Peak, 5.46V RMS, 100mW
1/4” TRS JACK: Tip (Left), Ring (Right) & Sleeve (Shield)
USB-C High Speed
BUS POWER:
MIN REQUIREMENT: 0.9A @ 5V >=USB 3.0 Port
MAX REQUIREMENT: 1.5A @ 5V USB-C: Provides higher headphone outputs levels
No. of INPUT CHANNELS: 10
No. of OUTPUT CHANNELS: 6
DSP MIXER LATENCY ROUND TRIP (in-to-out): 44.1kHz 0.65mS
DSP MIXER LATENCY ROUND TRIP (in-to-out): 48.0kHz 0.6mS
DSP MIXER LATENCY ROUND TRIP (in-to-out): 88.2kHz 0.33mS
DSP MIXER LATENCY ROUND TRIP (in-to-out): 96.0kHz 0.31mS
