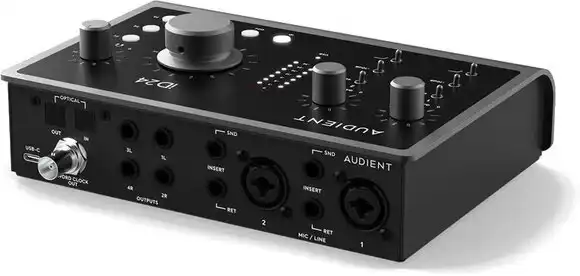

Audient iD24 - zvučna kartica
+
−
×

Audient iD24 - zvučna kartica

Audient
Šifra: 18440
Regularna cijena:
398,00 EUR
Cijena sa popustom *
Cijena za kupovinu na rate:
Cijena sa popustom *
332,00 EUR
PDV je uračunat u cijenu
Iznos rate:
*Cijena sa popustom može se ostvariti ukoliko se plaća gotovinom, virmanom (preko računa) ili debitnom i kreditnom karticom odmah i odjednom.
Prikazana cijena je za komad.

Garantiramo najnižu cijenu na tržištu!
U slučaju da pronađete isti proizvod po povoljnijoj cijeni,
molimo Vas da nas kontaktirate na:
info@player.hr

Dodaj na listu želja
Prijavi povoljniju cijenu Obavijesti me ako cijena padne Postavi pitanje
Opcija:

iD24 idealno je "10in/14out" 24-bit/96kHz audio sučelje za glazbenike, duete, tekstopisce, skladatelje i producente jer po super povoljnoj cijeni daje fantastične rezultate: od intuitivnog rukovanja, preko odličnih pretpojačala preuzetih s Audientovih konzola sve do konverzije zvuka koja će vjerno i neobojano prenijeti originalni zvuk. iD24 raspolaže svim važnim priključcima na koje ćete spojiti dva mikrofona, instrument i slušalice. Za razliku od manjeg modela, iD24 raspolaže i s dva dodatna izlaza. Uživajte u snimanju uz vrhunski zvuk kojeg vaše pjesme i zaslužuju!

Microphone Preamplifier



MIC GAIN: 0 to +58dB

MAXIMUM INPUT LEVEL: +12dBu

CROSSTALK: <-100dBu @ 1kHz & 10kHz

THD+N: @0dBu 1kHz: 0.0015%, -96dB

MIC EIN: -130dBu A-Weighted

CMRR: >75dB@1kHz

SNR: 97.5dB Unweighted, 100dB A-Weighted

FREQUENCY RESPONSE: +/- 0.5dB 10Hz to 40kHz

INPUT IMPEDANCE (Mic): 3kΩ balanced

INPUT IMPEDANCE (Line): 10kΩ balanced

PAD: -10dB

HPF CUTOFF FREQUENCY: 100Hz

PHANTOM POWER: 48V +/-4V @ 10mA/Channel

XLR COMBI FEMALE: Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)

1/4” TRS JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)




Line Inputs



LINE GAIN:-10 to +48dB

MAXIMUM INPUT LEVEL:+22dBu

THD+N @0dBu 1kHz:0.0013%, -97dB




D.I / Instrument Input



D.I GAIN:0 to 58dB

MAXIMUM INPUT LEVEL:+12 dBu

THD+N @ 0dBu (1kHz):0.16%

SNR:95dB unweighted, 97.5dB A-weighted

FREQUENCY RESPONSE:+/- 0.5dB 0.5dB 10Hz to 40kHz

INPUT IMPEDANCE:500kΩ unbalanced

1/4” JACK:TIP (Hot) & SLEEVE (Shield)




Analogue to Digital Converter



MAXIMUM INPUT LEVEL:12.5dBu=0dBFS

CROSSTALK:@1k -135dB, @10k -125dB

FREQUENCY RESPONSE:+/- 0.2dB 0.5dB 10Hz to Fs/2 (Nyquist)

THD+N @ -1dBFS (1kHz):0.0004%, -108dB

DYNAMIC RANGE:122dB A-weighted

INPUT IMPEDANCE:>10kΩ

1/4” JACK:TIP (Hot), RING (Cold) & SLEEVE (Shield)




Digital to Analogue Converter



MAXIMUM OUTPUT LEVEL:12dBu=0dBFS

THD+N @ 1kHz -1dBFS:0.0003%, -110dB

DYNAMIC RANGE:126.5dB A-weighted

CROSSTALK:-130dB @ 1kHz, -115dB @ 10kHz

FREQUENCY RESPONSE:+/- 0.1dB 10Hz to Fs/2 (Nyquist)

OUTPUT IMPEDANCE:<100Ω

1/4” JACK:TIP (Hot), RING (Cold) & SLEEVE (Shield)




Headphone Outputs



MAXIMUM OUTPUT LEVEL:18.5dBu=0dBFS

THD+N @ -1dBFS (1kHz):0.0006%, -104dB

DYNAMIC RANGE:124dB A-weighted

CROSSTALK:-117dB @ 1kHz, -101dB @ 10kHz

FREQUENCY RESPONSE:+/- 0.2dB 10Hz to Fs/2 (Nyquist)

OUTPUT IMPEDANCE:<50Ω unbalanced

MAX LEVEL INTO 30R:2.63V Peak, 1.87V RMS, 232mW

MAX LEVEL INTO 60R:4.28V Peak, 3.03V RMS, 295mW

MAX LEVEL INTO 600R:7.91V Peak, 5.6V RMS, 104mW




USB-C High Speed



NO. OF INPUT CHANNELS:10 (2 Analogue, 8 Digital)

NO. OF OUTPUT CHANNELS:14 (6 Analogue, 8 Digital)

CONNECTOR:USB Type-C

INCLUDED CABLES:1m USB 2.0 Type-C to Type-C




Digital Input



8-CHANNEL ADAT:44.1kHz to 48kHz

4-CHANNEL ADAT:88.2kHz to 96kHz (SMUX)

STEREO S/PDIF44.1kHz to 96kHz (Stereo)




Digital Output



8-CHANNEL ADAT:44.1kHz to 48kHz

4-CHANNEL ADAT:88.2kHz to 96kHz (SMUX)

STEREO S/PDIF44.1kHz to 96kHz (Stereo)




DSP Mixer Latency

Round Trip (in-to-out)



44.1kHz:0.344ms

48kHz:0.312ms

88.2kHz:0.188ms

96kHz:0.177ms




Word Clock Output



WORD CLOCK OUTPUT:44.1kHz to 96kHz
