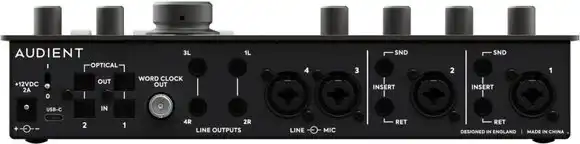

Audient iD44 mk2 - zvučna kartica
+
−
×

Audient iD44 mk2 - zvučna kartica

Audient
Šifra: 18441
Na stanju
Regularna cijena:
688,00 EUR
Cijena sa popustom *
Cijena za kupovinu na rate:
Cijena sa popustom *
584,00 EUR
PDV je uračunat u cijenu
Iznos rate:
*Akcijska cijena (cijena sa popustom) vrijedi isključivo za plaćanje gotovinom, virmanom (uplatom na račun) ili jednokratnim plaćanjem debitnom ili kreditnom karticom. Navedeni uvjeti odnose se na ostvarivanje akcijske cijene te ne predstavljaju pravo na dodatni popust.
Prikazana cijena je za komad.
Količina

Garantiramo najnižu cijenu na tržištu!
U slučaju da pronađete isti proizvod po povoljnijoj cijeni,
molimo Vas da nas kontaktirate na:
info@player.hr

Dodaj na listu želja
Prijavi povoljniju cijenu Obavijesti me ako cijena padne Postavi pitanje
Opcija:

Audientovo najmoćnije audio sučelje upravo je postalo još bolje. Najnovija generacija iD44 ima poboljšane audio performanse, dodatne značajke koje morate imati i prekrasnu novu završnu obradu u sivoj boji. Dodatni loop-back zvuk, dvostruki izlazi za slušalice, u kombinaciji s četiri mikrofonska pretpojačala s Audientove konzole, vodeći pretvarači u svojoj klasi, proširivost s ADAT priključcima i balansiranim insertima čini iD44 mkIIi novim standardom u klasi audio sučelja srednje veličine. S poboljšanim odnosom signal/šum, zvukom bez izobličenja, snimanjem bez latencije, i puno više toga očekuje vas u ovom moćnom sučelju, bez obzira bavite li se snimanjem glazbe, izradom podcasta ili miksanjem.

Microphone Preamplifier



MIC GAIN:0 to +60dB

LINE GAIN:-10 to +50dB

PHANTOM POWER:48v +/-4v @ 10mA/Channel

MIC EIN:-126dBu

CMRR:>80dB @ 1kHz

MAXIMUM INPUT LEVEL:+18dBu

INPUT IMPEDANCE (Mic):3k Ω balanced

INPUT IMPEDANCE (Line):10k Ω balanced

FREQUENCY RESPONSE:±0.5dB 10Hz to 65kHz

CROSSTALK:<-90dBu @ 1kHz & 10kHz

THD+N @ 0dBu (1kHz):0.003% (-90dB)

SNR:96dB

XLR:Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)

1/4” TRS JACK:TIP (Hot), RING (Cold) & SLEEVE (Shield)

PAD:-10dB

HPF:-3dB @ 100Hz, 2nd Order (12dB/Octave)




D.I / Instrument Input (Channel 1)



D.I GAIN:0 to +60dB

MAXIMUM INPUT LEVEL:+10dBu

INPUT IMPEDANCE:1MegΩ Unbalanced

FREQUENCY RESPONSE:±0.5dB 10Hz to 50kHz

THD+N @ 0dBu (1kHz):<0.3%

SNR:95dB A-weighted

1/4” JACK:Tip (Hot) & Sleeve (Shield)




Analogue to Digital Converter (ADC 1 & 2):

(Measured via Insert Returns under AES-17)



MAXIMUM INPUT LEVEL:+18dBu (0dBFS digital maximum)

DIGITAL REFERENCE LEVEL:+18dBu = 0dBFS

INPUT IMPEDANCE:>10k Ω Balanced

CROSSTALK:<-118dBu @ 1kHz & 10kHz

FREQUENCY RESPONSE:±0.5dB 10Hz to Fs/2 (Nyquist)

THD+N @ -1dBFS (1kHz):<0.0003% (-112dB)

DYNAMIC RANGE:120dB A-weighted

1/4” TRS JACK:TIP (Hot), RING (Cold) & SLEEVE (Shield)




Digital to Analogue Converter (DAC 1, 2, 3 & 4):

(Measured under AES-17 at line outputs 1, 2, 3 & 4)



MAXIMUM OUTPUT LEVEL:+18dBu (0dBFS digital maximum)

OUTPUT IMPEDANCE:<100 Ω

CROSSTALK:<-118dBu @ 1kHz & 10kHz

FREQUENCY RESPONSE:±0.5dB 10Hz to Fs/2 (Nyquist)

THD+N @ -1dBFS (1kHz):<0.0006% (-104dB)

DYNAMIC RANGE:124dB un-weighted, 126dB A-weighted

1/4” TRS JACK:TIP (Hot), RING (Cold) & SLEEVE (Shield)




Headphone Outputs

(Measured under AES-17 at phones output)



MAXIMUM OUTPUT LEVEL:+14dBu (0dBFS digital maximum)

OUTPUT IMPEDANCE:<50 Ω unbalanced

CROSSTALK:<-110dBu @ 1kHz & 10kHz

FREQUENCY RESPONSE:±0.5dB 10Hz to Fs/2

CROSSTALK:-115dBu @ 1kHz & 10kHz

THD+N @ -1dBFS (1kHz):<0.0008% (-103dB)

DYNAMIC RANGE:121dB un-weighted, 124dB A-weighted

MAX LEVEL INTO 30ohms:+10.2dBu 0.002% THD+N Power: 210mW

MAX LEVEL INTO 60ohms:+14.2dBu 0.001% THD+N Power: 54mW

MAX LEVEL INTO 600ohms:+14.2dBu 0.001% THD+N Power: 54mW

1/4” JACK:TIP (Hot), RING (Cold) & SLEEVE (Shield)




Digital Input



ADAT 16 CHANNELS:44.1kHz to 48.0kHz

ADAT 8 CHANNELS (SMUX):88.2kHz to 96.0kHz

STEREO S/PDIF:44.1kHz to 96.0kHz




Digital Output



ADAT 16 CHANNELS:44.1kHz to 48.0kHz

ADAT 8 CHANNELS (SMUX):88.2kHz to 96.0kHz

STEREO S/PDIF:44.1kHz to 96.0kHz




USB2.0 High Speed



No. of INPUT CHANNELS 20:20 (4 Analogue, 16 Digital)

No. of OUTPUT CHANNELS 24:24 (8 Analogue, 16 Digital)

CONNECTOR:USB Type-C

USB-C to C Cable is included




DSP Mixer Latency – ROUND TRIP (in-to-out)



44.1kHz0.677ms

48.0kHz0.625ms

88.2kHz0.354ms

96.0kHz0.323ms




Word Clock Output



WORD CLOCK OUTPUT:44.1kHz to 96kHz




Dimensions



Unit 276mm (w) x 51mm (h) x 174mm (d)
