IK Multimedia AXE I/O SOLO
Šifra: 14199
Regularna cijena:
329,00 EUR
Cijena sa popustom *
Cijena za kupovinu na rate:
Cijena sa popustom *
221,00 EUR
PDV je uračunat u cijenu
Iznos rate:
*Akcijska cijena (cijena sa popustom) vrijedi isključivo za plaćanje gotovinom, virmanom (uplatom na račun) ili jednokratnim plaćanjem debitnom ili kreditnom karticom. Navedeni uvjeti odnose se na ostvarivanje akcijske cijene te ne predstavljaju pravo na dodatni popust.
Prikazana cijena je za komad.
Garantiramo najnižu cijenu na tržištu!
U slučaju da pronađete isti proizvod po povoljnijoj cijeni,
molimo Vas da nas kontaktirate na:
info@player.hr
Compact audio interface with advanced guitar tone shaping
Best-in-class guitar recording starts here
AXE I/O, IK’s award-winning audio interface, set a new standard for guitar-oriented recording interfaces. Now AXE I/O Solo brings the same great tone shaping, convenient features and premium sound to everyone, everywhere, in a compact and affordable 2-in / 3-out format.
Specs
AXE I/O Solo Specifications
Common
- AD and DA Resolution: 24-bit
- Sampling Rate: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz and 192 kHz
- Host Connection: USB Type-B receptacle. USB 2.0 (High Speed).
Line Outputs 1-2 (Monitor)
- Configuration: Electronically balanced and floating, automatically compensates level when connection is balanced or unbalanced, tip hot.
- Output impedance: 150 Ohms balanced, 75 Ohms unbalanced
- Output Level: 0 dBFS corresponds to +13.5 dBu
- Frequency response: From 1 Hz to 46 kHz within 0.5 dB (96 kHz sample rate)
- Dynamic Range: 113 dB(A)
- THD @ -1 dBFS: 0.001%
- THD+N: -103 dB(A) at -1 dBFS
- Channels 1-2 crosstalk: 112 dB(A)
Output 3 (Amp output)
- Configuration: Unbalanced, floating, with selectable ground lift
- Output impedance: 75 Ohms
- Output Level: 0 dBFS corresponds to -3 dBu
- Frequency response: From 20 Hz to 42 kHz within 0.5 dB (96 kHz sample rate)
- Dynamic Range: 106 dB(A)
- THD+N: -93 dB(A)
Headphones Out
- Output impedance: Virtually ideal source (zero Ohms) until clipping
- Maximum Output level: +9 dBu into 50 Ohms load (approx 95 mW)
- Frequency response: From 1 Hz to 42 kHz within 0.5 dB (96 kHz sample rate)
- Dynamic Range: 111 dB(A)
- THD+N: -102 dB(A)
Instrument Input
- Configuration: Multiple topology instrument preamp
- Input impedance, PASSIVE mode: Variable from 1 MOhms down to 2.2 kOhms
- Input impedance, ACTIVE mode: 10 kOhms
- Input level, min gain: 0 dBFS is obtained with a +12.5dBu signal at the TS input
- Input level, max gain: 0 dBFS is obtained with a -19 dBu signal at the TS input
- Frequency response: From 6 Hz to 42 kHz within 0.5 dB (96 kHz sample rate)
- Dynamic Range: 117 dB(A)
- THD, PURE mode: 0.002 % (-1dBFS input)
- THD, JFET mode: 0.5 %
Mic Input
- Configuration: Class-A discrete differential microphone preamp, pin 2 hot
- Input impedance: 4 kOhms differential
- Input level, min gain: 0 dBFS is obtained with a +9 dBu signal at the XLR input
- Input level, max gain: 0 dBFS is obtained with a -44 dBu signal at the XLR input
- Frequency response: From 7 Hz to 32 kHz within 0.5 dB (96 kHz sample rate)
- Dynamic Range: 116 dB(A)
- THD+N: -104 dB(A) at -10 dBFS
Line Input
- Configuration: Class-A discrete differential line receiver, tip hot
- Input impedance: 20 kOhms differential
- Input level, min gain: 0 dBFS is obtained with a +26 dBu signal at the TRS input
- Input level, max gain: 0 dBFS is obtained with a -27 dBu signal at the TRS input
- Frequency response: From 7 Hz to 32 kHz within 0.5 dB (96 kHz sample rate)
- Dynamic Range: 117 dB(A)
- THD+N: -104 dB(A) at -10 dBFS
Connections and Controls

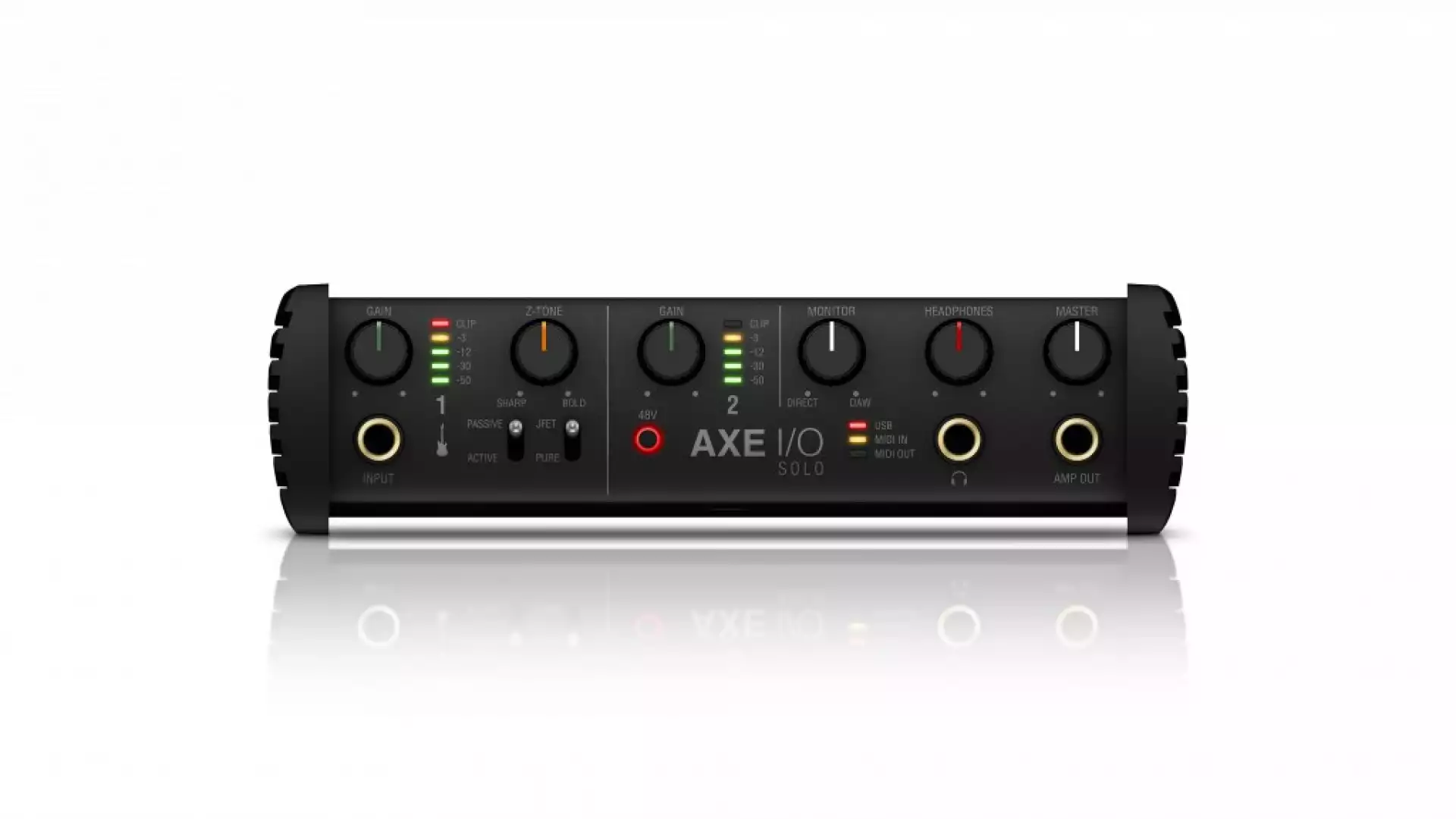

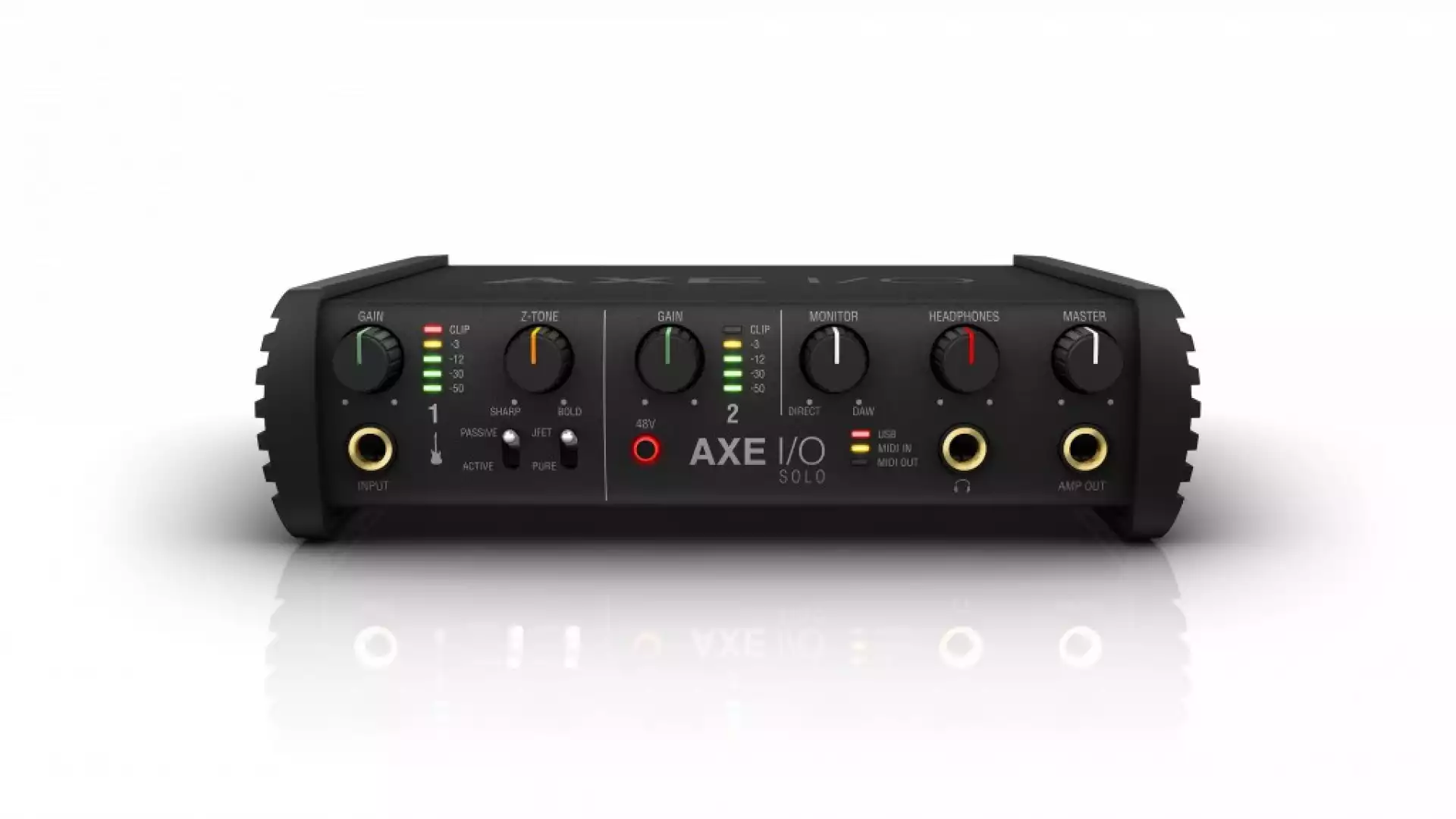

Front Panel
- One 1/4" instrument input jacks
- Two analog potentiometers for Input GAIN
- Two 5 segments input level meter (peak)
- Analog potentiometers for Z-Tone control
- Pick-Up selector (PASSIVE/ACTIVE)
- Preamp topology selector (JFET/PURE)
- +48V phantom power switch
- USB LEDS
- MIDI IN/OUT LEDs
- Monitor knob
- 1/4" headphones output jack
- Master potentiometer for main output control
- 1/4" Amp output jack

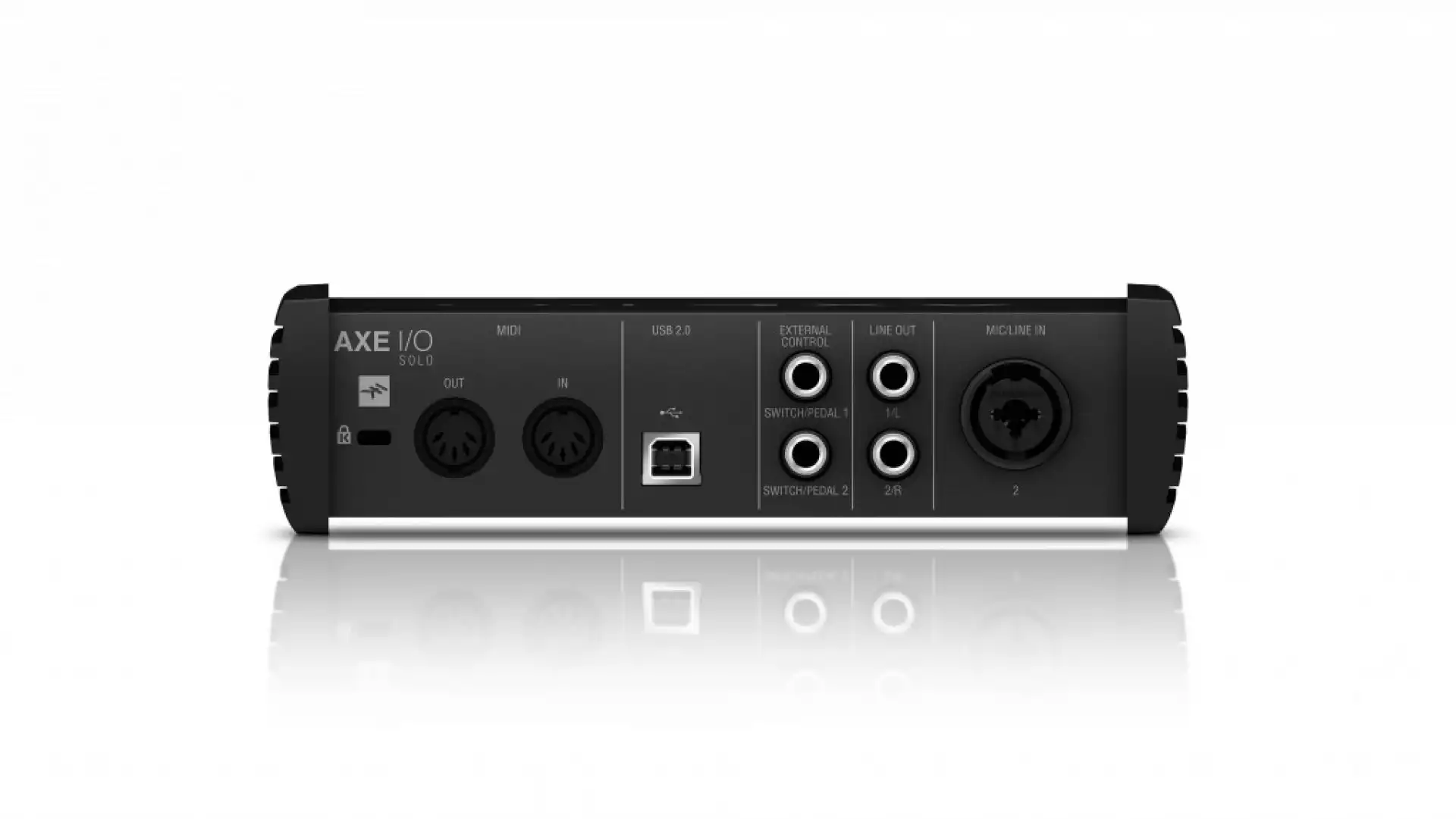

Rear Panel
- MIDI I/O 5-pin DIN connectors
- B-Type USB socket for connecting a computer (Mac/PC)
- 2 x 1/4" TRS External controllers sockets
- 2 x 1/4" TRS Balanced floating line outputs
- 1 Combo socket for MIC input and Line input (auto selecting)
Package includes
- AXE I/O SOLO
- USB A-Type to USB B-Type connection cable (1.5m/4.32ft)
Dimensions
- Size: 19.5cm x 19.5cm x 5.3cm
- Weight: 1.0kg
Compatibility
Computers
64-bit application. Requires a 64 bit CPU and Operating System.
Mac® (64-bits)
Minimal: macOS 10.11 or later. One free USB port.
Windows® (64-bits)
Minimal: Windows 7 or later. One free USB port.
