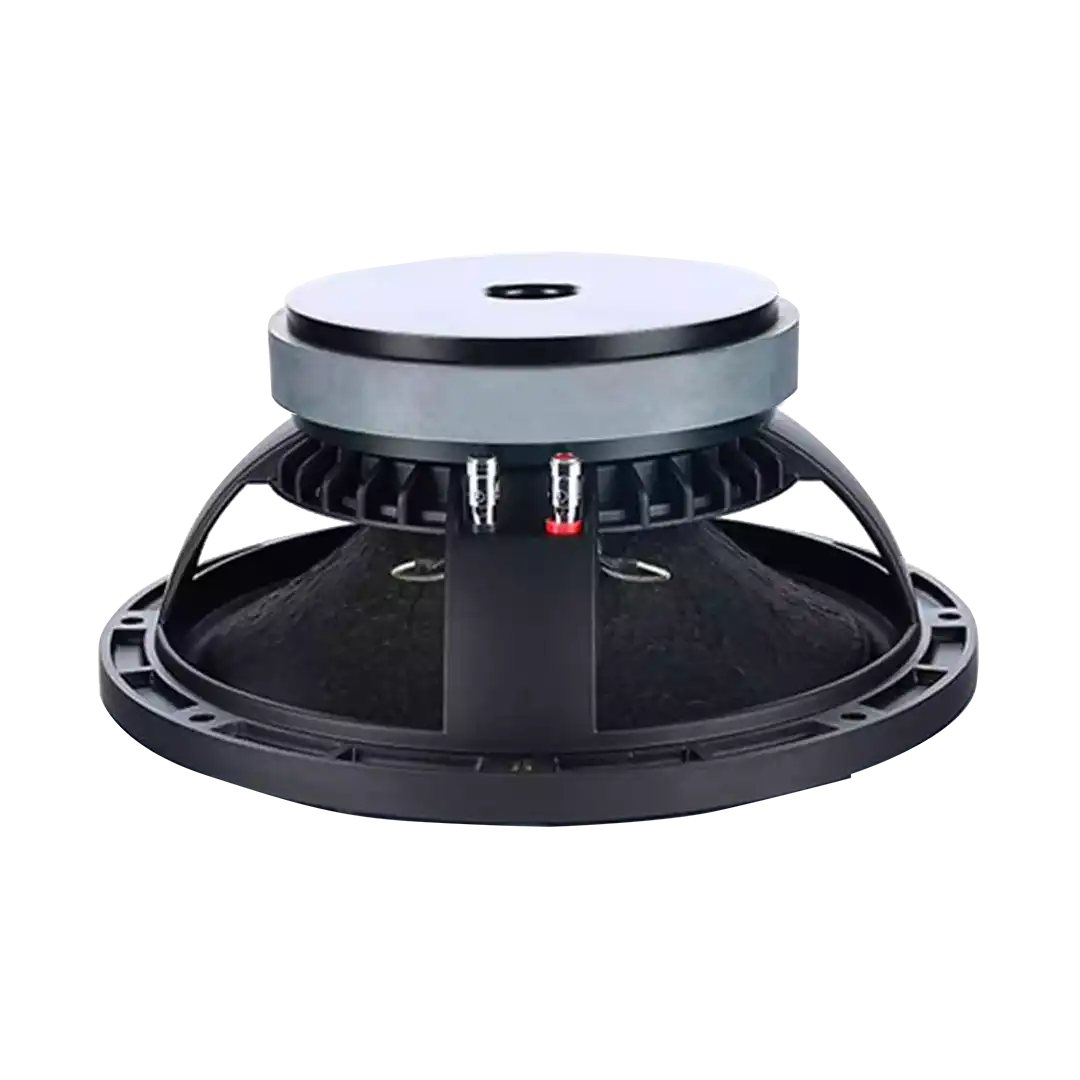

MARTIN WISMAN HPLX 10- ugradbeni zvučnik
Šifra: 14099
Na stanju
Regularna cijena:
119,00 EUR
Cijena sa popustom *
Cijena za kupovinu na rate:
Cijena sa popustom *
59,00 EUR
PDV je uračunat u cijenu
Iznos rate:
*Cijena sa popustom može se ostvariti ukoliko se plaća gotovinom, virmanom (preko računa) ili debitnom i kreditnom karticom odmah i odjednom.
Prikazana cijena je za komad.
Garantiramo najnižu cijenu na tržištu!
U slučaju da pronađete isti proizvod po povoljnijoj cijeni,
molimo Vas da nas kontaktirate na:
info@player.hr
Introduce：10 inch Loudspeaker
1- Model: HPLX 10
2- Rate Impedance: 8Ω
3- Power Handling: 300 W
4- Voice Coil Diameter: 65mm / 2.6 inch
5- Magnet:Φ156mm Ferrite Ring
| General Specifications | ||
| Nominal Diameter | 250mm/10 inch | |
| Nominal Impedance | 8Ω | |
| AES Power Handing | 300W | |
| Continuous Program Power | 600W | |
| Sensitivity 1W/1M | 94dB | |
| Frequency Range | 62.9~2.3KHz | |
| Voice Coil Diameter | 65mm/2.6 inch | |
| Windinig Material | Copper | |
| Former Material | Glass Fibre | |
| Winding Depth | 17mm | |
| Magnetic Gap Depth | 8mm | |
| surround material | Polycotton | |
| surround Design | M-roll | |
| Magnet | Φ156 | Ferrite Ring |
| Thiele & Small Parameters | ||
| Resonance Frequency | Fs | 62.9Hz |
| DC Resistance | Re | 6Ω |
| Mechanical Factor | Qms | 3.30 |
| Electrical Factor | Qes | 0.51 |
| Total Factor | Qts | 0.44 |
| BL Factor | BL | 14.34T.m |
| Effective Moving Mass | Mms | 44gr |
| Compliance | Cms | 145.7μ M/N |
| Equivalent Cas Air Load | Vas | 27.28dm3 |
| Effettive Piston Area | Sd | 363cm2 |
| η(Eta Zero) | η0 | 0.01% |
| Mountiong & Shipping Information | ||
| Overall Diameter | 262mm | |
| Bolt circle diameter | 248mm | |
| Baffle Cutout Diameter | 232mm | |
| Depth | 115mm | |
| Net Weight | 4.2kg | |
| Shipping Weight | 4.4kg | |
| Shipping Box(Single) | 26.5x26.5x12.5cm | |
