Esi Juli@

4-in/4-out PCI Audio Interface with Swappable

Juli@ features highest quality 24-bit 192Khz ADC (114dB) and DAC (112dB) for the best quality audio.

The unique swappable I/O socket allows you to choose your analog connectors between unbalanced RCA jacks and balanced TRS jacks.

You don't have to configure your studio to Juli@, you can configure Juli@ to your studio. Juli@'s EWDM drivers provide unparalled performance and stability, and provide support for all professional audio applications using ASIO and GSIF drivers.

With the powerful EWDM drivers and MIDI I/O Juli@ is perfect for post-production studios, one man bands and use with mixers and you can monitor the inputs and outputs directly through the digital mixer.

Juli@'s optical and digital outputs allow AC3/DTS pass through for Dolby Digital and DTS surround sound playback. Please note that this is the PCI version, we also offer a PCIe version called Juli@ XTe.

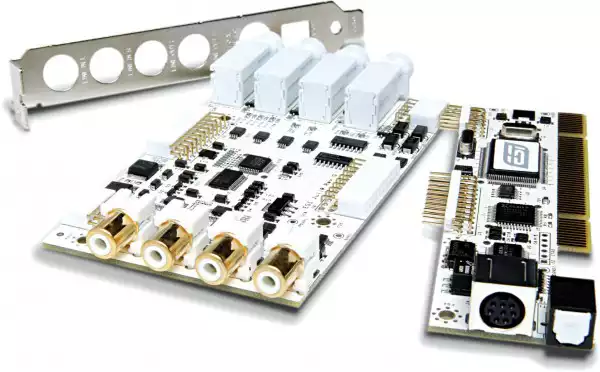

BALANCED I/O

-

SWAP

-

UNBALANCED I/O

Features

• 2 analog input channels, 2 analog output channels
• 24-bit/192kHz AD converter with 114dB(a) dynamic range
• 24-bit/192kHz DA converter with 112dB(a) dynamic range
• swappable socket (Unbalanced RCA with -10dBv or Balanced TRS with +4dBu )
• coaxial S/PDIF digital input
• synchronisation to digital S/PDIF input signals
• optical S/PDIF digital output with automatic shutter (max.96kHz)
• coaxial S/PDIF digital output (max 192kHz)
• 1 MIDI input (16 channels) / 1 MIDI output (16 channels)
• support for DirectWIRE 3.0
• 4 inputs and 4 outputs can be used with 24bit/192kHz simultaneously (incl. MIDI I/O) - full duplex
• PCI card is compatible with 3.3V and 5V PCI slots
• independent monitoring control for analog and digital input signals and playback
• EWDM driver: MME, DirectSound, ASIO 2.0 and GSIF 2.0 support
• Windows 98SE/ME/XP/2000/Vista/7/8 compatible
• compatible with Mac OS X 10.1 and newer (Power Mac G4/G5)
• Linux compatible (ALSA)
