Digital Performance |
|
A-D Dynamic Range |
109 dB A-weighted (all inputs) |
D-A Dynamic Range |
108 dB A-weighted (line outputs) |
Supported sample rates |
44.1 kHz, 48 kHz, 88.2 kHz A 96 kHz |
Clock jitter |
|
Microphone Inputs |
|
Frequency Response |
20 Hz ± 0.5 dB, 20 kHz ± 0.1 dB (min. gain) |
THD+N |
0.001% (1 kHz, –1dBFS, 20 kHz BW) |
Noise EIN |
–122 dBu CCIR-RMS (measured at 60 dB of gain with 150 ohm termination) |
Maximum input level |
+8 dBu (without pad) |
Line Inputs |
|
Frequency Response |
20 Hz – 20 kHz ± 0.1 dB |
THD+N |
0.007% (1 kHz, –1dBFS, 20 kHz BW) |
Noise (NiPoS) |
–105 dBFS CCIR-RMS (measured at min. gain with 50 ohm termination) |
Maximum input level |
> +28 dBu |
Instrument Inputs |
|
Frequency Response |
20 Hz – 20 kHz ± 0.1 dB |
THD+N |
0.007% (1 kHz, –1dBFS, 20 kHz BW) |
Noise (NiPoS) |
–103 dBFS CCIR-RMS (measured at min. gain) |
Maximum input level |
+8 dB (without pad) |
Line Outputs 1 & 2 |
|
Maximum Output Level (0 dBFS) |
+16 dBu, balanced |
THD+N |
0.001% (1 kHz, –1dBFS, 20 kHz BW) |
FOCUSRITE Scarlett 18i20 - Zvučna kartica
Garantiramo najnižu cijenu na tržištu!
U slučaju da pronađete isti proizvod po povoljnijoj cijeni,
molimo Vas da nas kontaktirate na:
info@player.hr

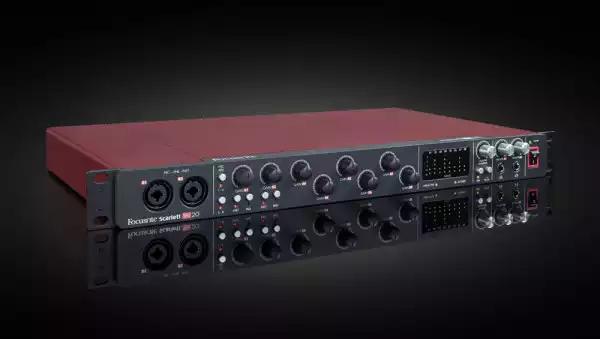

Scarlett 18i20
USB 2.0 audio interface with eight Focusrite mic preamps
Focusrite’s Scarlett 18i20 is the latest in the company’s new generation of multi-channel USB-based audio interfaces, featuring eight award-winning Focusrite microphone preamplifiers, designed specifically for the computer interface environment, delivering legendary Focusrite sound quality.
Focusrite’s mic preamps are found in the world’s top studios and give the 18i20 an unequalled level of performance, with low noise, minimal distortion and enormous dynamic range. The Scarlett preamps offer exceptional headroom, and two front-panel inputs also offer 10dB pad buttons to handle the highest-level inputs without distortion.
Key Features
Eight high-quality award-winning Focusrite preamps
Scarlett 18i20 is the best sounding interface in its class. Focusrite’s unparalleled reputation for audio excellence forms the foundation of this new interface, with eight award-winning Focusrite preamps.
High-quality 24-bit/96kHz USB 2.0 interface compatible with Mac, Windows and iOS
Features high quality A-D / D-A at up to 96kHz, 24bit. Pristine audio quality and rock-solid synchronisation are guaranteed on Mac and Windows as well as driver-free operation on the iOS platform.
18 inputs & 20 outputs
Scarlett 18i20 boasts an extensive range of analogue and digital I/O capabilities including ADAT I/O which can enable an additional eight inputs and outputs.
Dual independent headphone buses
Give two artists independent, fully-customised monitor mixes – each with an independent front-panel level control.
Scarlett MixControl ultra-low-latency DSP mixer/router
Maximising routing flexibility and intuitive one-click set-up solutions, Scarlett MixControl provides an 18 x 8 DSP mixer with powerful routing and monitoring capabilities.
Unmatched routing flexibility
Scarlett 18i20 is the most flexible interface in its class, enabling you to intuitively adapt it immediately to the needs of any recording session. Route any input signal or DAW output, or a mix of both, to any output.
Comprehensive bundle of included software
Comes with Ableton Live Lite – ground-breaking production and performance software, Scarlett Plug-in Suite – EQ, compression, gating and reverb, Novation Bass Station - software model of the classic Novation analogue mono-synth, and 1GB of Loopmasters samples.
Specifications
